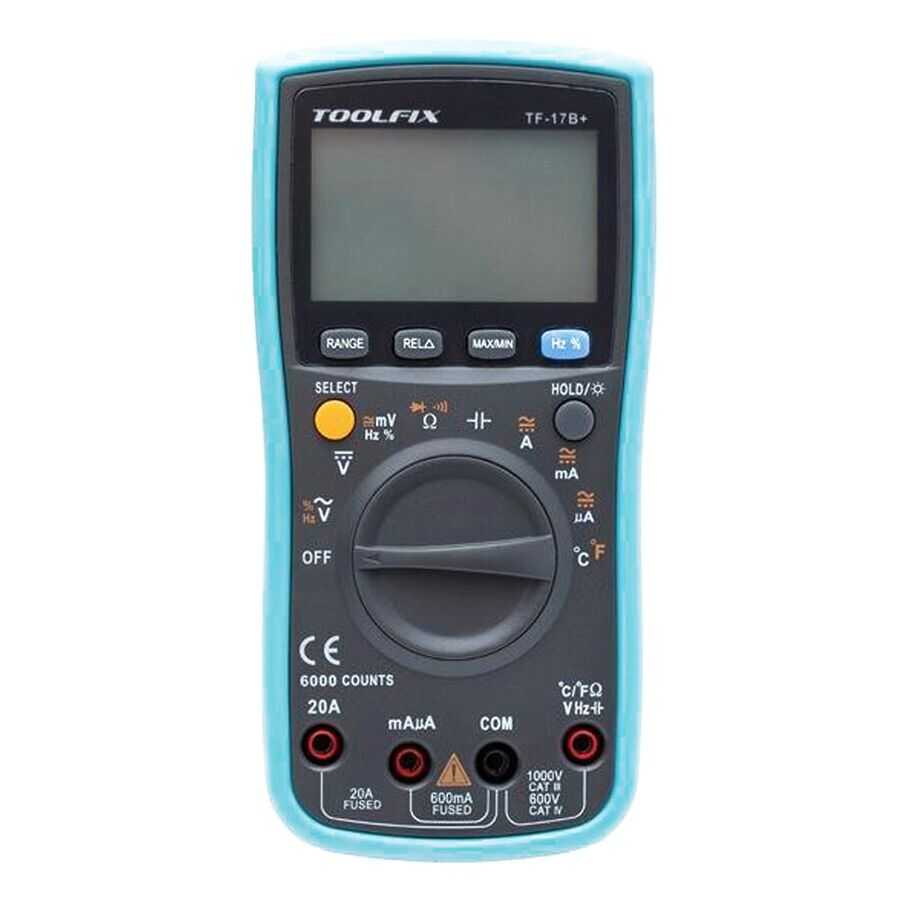

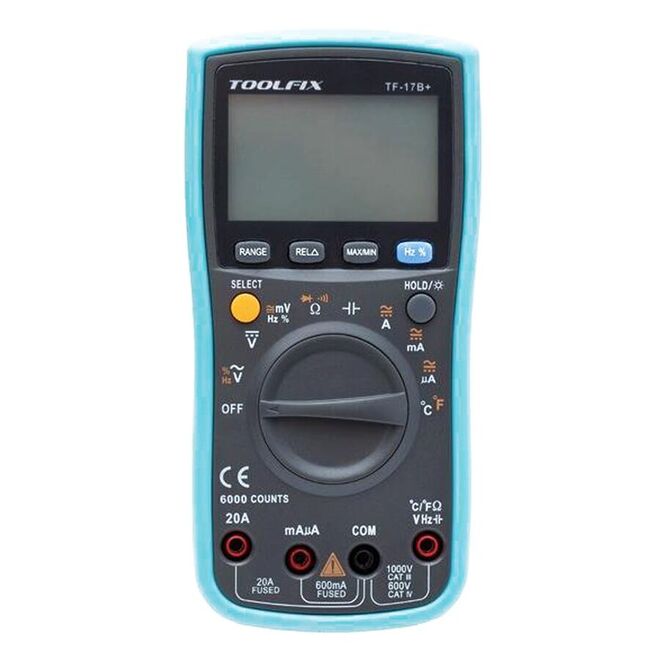

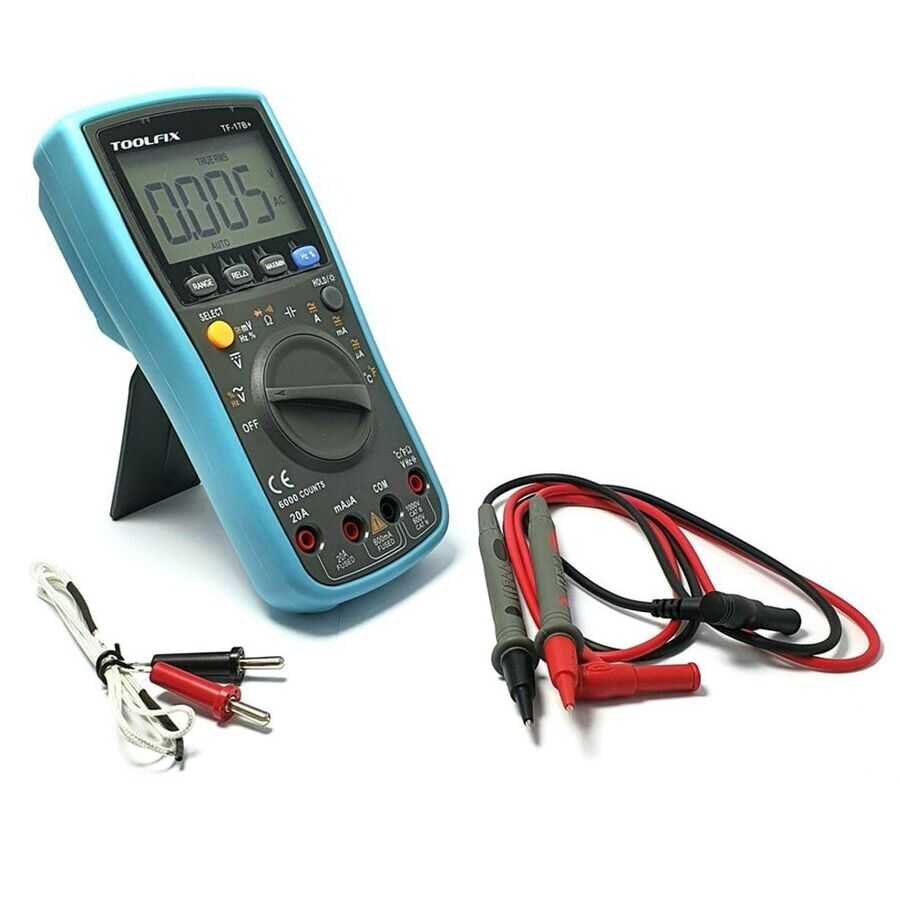

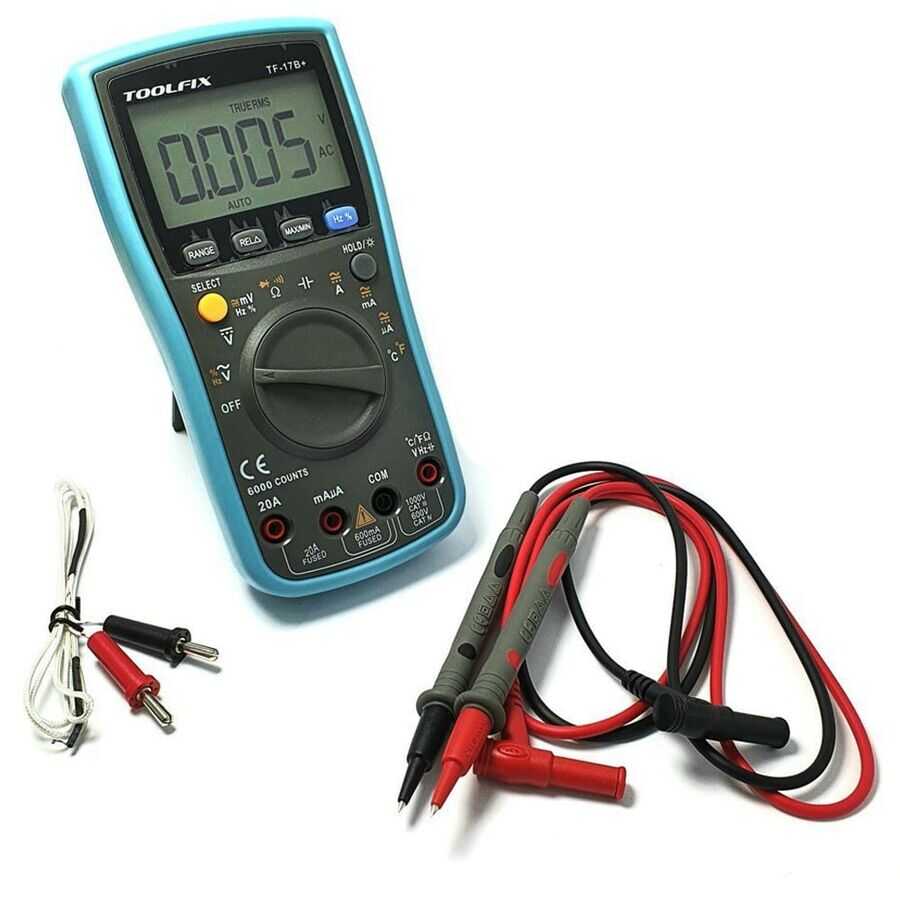

Toolfix TF 17B+ Digital Multimeter

Toolfix TF 17B+ Digital Multimeter

The primary feature that distinguishes the Toolfix TF 17B+ Digital Multimeter from other multimeters is that it includes digital buttons, not a dial, in its design. Thanks to this feature, it has a very ergonomic structure compared to other multimeters. Apart from that, Toolfix Tf 17b+ Digital Multimeter is one of the multimeter types with TRUE RMS (Real Effective Value) feature. It has the equipment to easily handle your possible professional and amateur jobs.

Toolfix TF 17B+ Digital Multimeter Technical Specifications:

• Manufacturer: Toolfix
• Product Category: Multimeters
• Sherry: TF 17B+
• Power Supply: 2 x 1.5V AA Batteries
• Size: 180 x 90 x 45mm
• Weight: 319 gr
• DC Voltage: 60.00mV / 600.0mV / 6,000V / 60.00V / 600.0V / 1000V ±(0.5%+3)
• AC Voltage: 60.00mV / 600.0mV / 6.000V / 60.00V / 600.0V / 750V ±(1.0%+3)
• DC Amper: 600.0μA / 6000μA / 60.00mA / 600.0mA / 6.000A / 20.00A ±(1.2%+3)
• AC Amper: 600.0μA / 6000μA / 60.00mA / 600.0mA / 6.000A / 20.00A ±(1.5%+3)
• Resistör: 600.0Ω / 6.000kΩ / 60.00kΩ / 600.0kΩ / 6.000MΩ ±(0.5%+3) 60.00MΩ ±(1.5%+3)
• Capacity: 9.999nF ±(5.0%+20) 99.99nF / 999.9nF / 9.999μF / 99.99μF / 999.9μF ±(2.0%+5) 9.999mF ±(5.0%+5)
• Frequency: 99.99Hz / 999.9Hz / 9.999kHz / 99.99kHz / 999.9kHz / 9.999MHz ±(0.1%+2)
• Duty Cycle: 1% – 99% ±(0.1%+2)
• Heat: -20℃ ~ 1000℃ / -4℉ ~ 1832℉ ±(2.5%+5)
