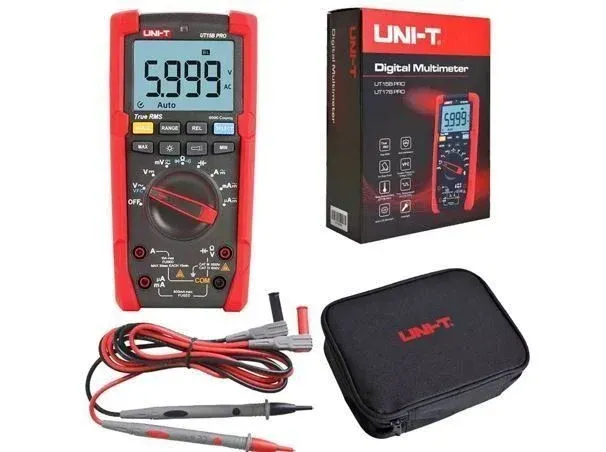

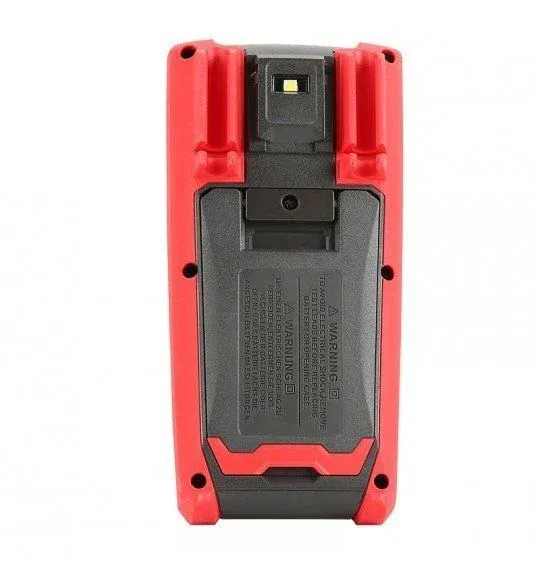

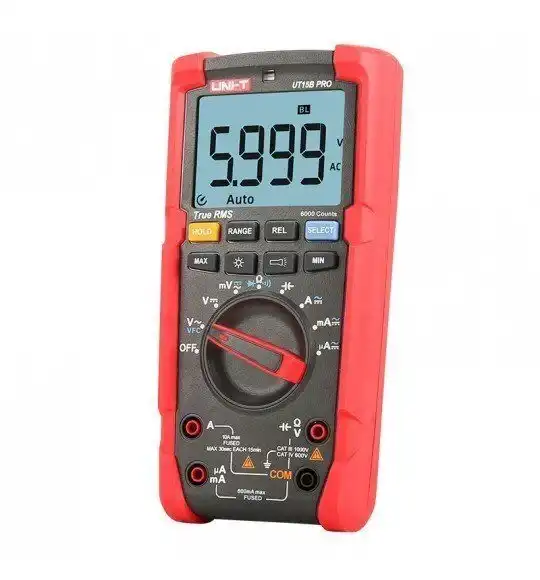

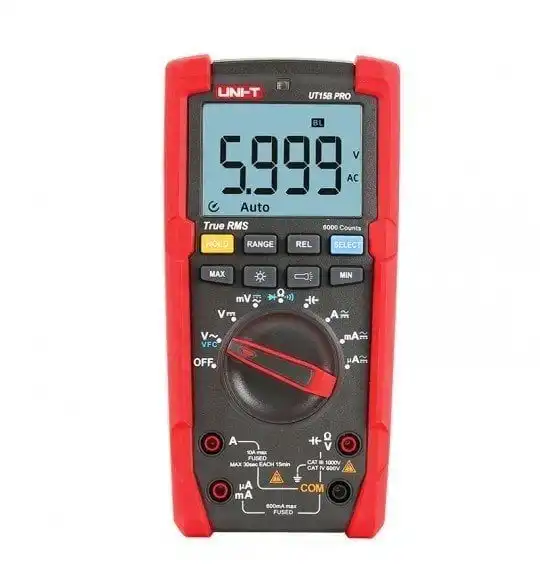

Unit UT15B Pro 1000V True Rms Digital Multimeter

Unit UT15B Pro 1000V True Rms Digital Multimeter

UT15B PRO are highly reliable, safe and durable true RMS multimeters with CAT III 1000V/CAT IV 600V ratings. Equipped with internal VFC, it provides a more accurate voltage reading by filtering out interference.

These meters come with gold-plated test leads for fast and accurate measurement. The UT15B PRO also provide full coverage 1000V protection as well as 8kV transient voltage protection.

can withstand sudden high voltage shocks.

VFC

Auto range

Relative mode

Torch

True RMS

Continuity test

Diode test

Max/Min

Data retention

Low battery indicator

Automatic backlight

Automatic shutdown

Technical Specifications:

certificates  : CE/RoHS/cETLus

Safety ratings  : CAT III 1000V/CAT IV 600V

DC voltage (V)  : 1000V  ±(0.5%+3)

AC voltage (V)  : 1000V  ±(1%+3)

AC current (A)  : 10 A  ±(1%+3)

DC current (A)  : 10 A  ±(0.8%+3)

Resistance (Ω)  : 60MΩ  ±(0.5%+2)

Capacitance (F)  : 6000μF  ±(2+5)

Number of views : 6000　

AC frequency response : 40~500Hz　

General features:

Power  : 1.5V battery (LR6) x 2

Product net weight  : 484g

Product size  : 195mm x 95mm x 58mm

Standard accessories  : English manual, test lead
