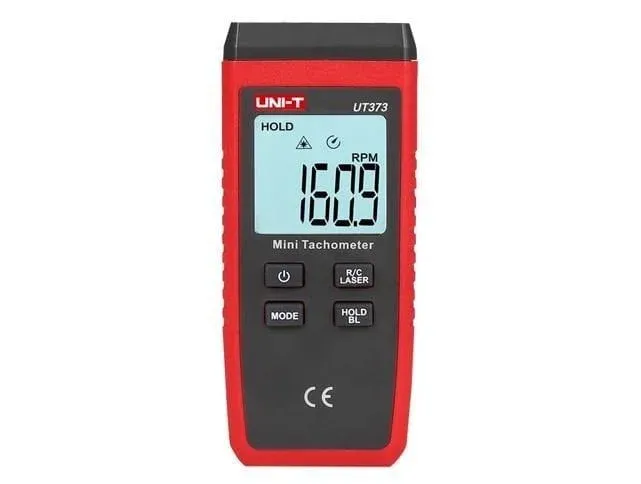

Unit UT373 Mini Optical Tachometer

Tachometer UNIT UT373 is a measuring device designed for non-contact measurement of revolutions per minute (angular velocity) based on the stroboscope principle. Also, this device can count the number of interruptions.

The principle of counting the number of pulses reflected from a rotating label per unit of time is the basis for measuring the rotational speed. Reflective strips are included in the package. Non-contact tachometers are often used to control the speed of the crankshaft of engines or the rotational speed of technological machines and unit mechanisms.

 Features:

Measuring Range: 10 to 99999 RPM
Measuring step: 0.1 RPM in the range of 10 ~ 9999.9 RPM; 1 RPM for values ​​above 1000 RPM
Distance to measured surface: 50-200 mm
Measuring time: 0.5 seconds
Power supply: 3 AAA batteries
Working temperature: 0 ° C to 50 ° C
Dimensions: 183.8х56х34 mm.
Weight: 98 g

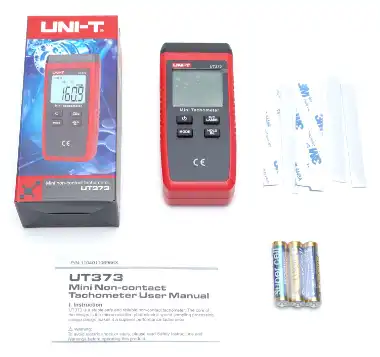

Laser tachometer UNI-T UT-373

Reflective Letna

Instruction and technical passport
