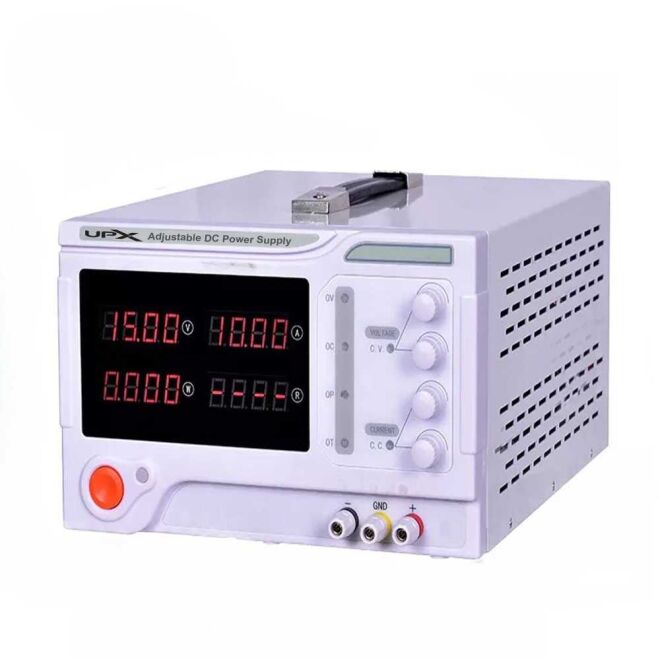

Notify me when its in stockUPX K6010 0-60V 0-10A 10mV 10mA DC Power Supply
Upx power supply; It was designed to maximize product safety with overload and current protection. Metal construction, state-of-the-art IC software is used for high performance, adjustable voltage and current values and high precision product reliability, and it is produced with a high-quality switch mode that is electrically isolated to avoid problems such as phase overlap.

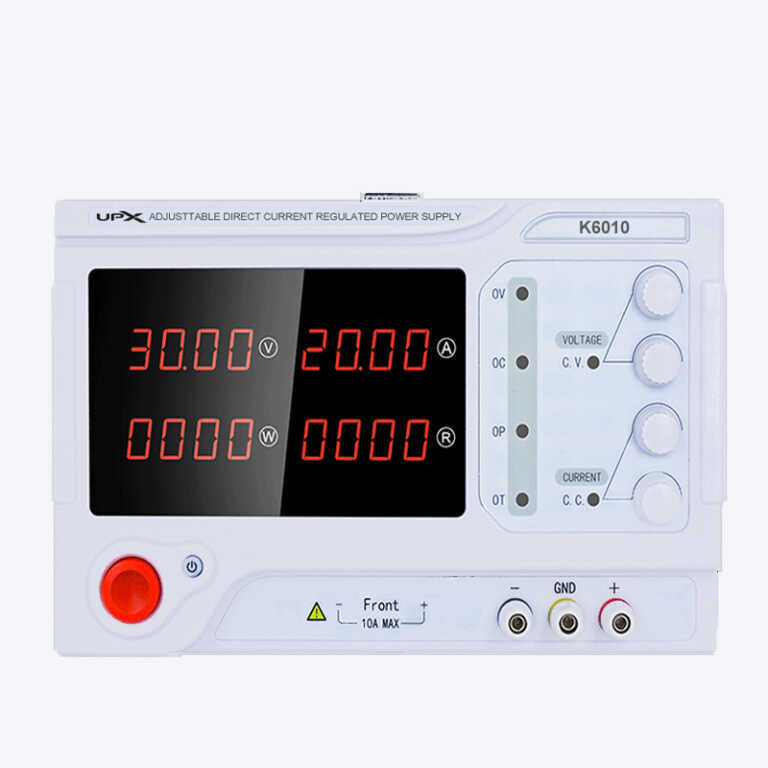

Thanks to the 4-digit large display, it provides precise access to all data without rounding. In addition, fan speed works parallel to temperature control, so the device can operate with low noise and the cooling fan life is longer. Safe use is ensured by being equipped with over voltage, over current, over power, over temperature, cornet 5 double protection security systems. UPX brand power supplies; It can be used in many areas such as universities, vocational high schools, electronics and electrical departments, computer repair, electronic production repair and maintenance technical services, scientific research, product development and electronic laboratories.
| UPX K6010 0-60V 0-10A 10mV 10mA DC Power Supply Technical Specifications: | ||
|
Model
|
K6010 | |
|
Describing
|
DC Power Supply 0-60V/0-10A | |
|
Number of Output Channels
|
1
|
|
|
Voltage Output Range
|
0-60V Adjustable | |
|
Output Ampere Range
|
0-10 A A adjustable | |
|
Working Voltage
|
AC110V/220V ±%10 | |
|
Strength
|
600 W
|
|
|
Frequency
|
50Hz/60Hz | |
|
Storage Temperature
|
-10~80 ℃ | |
|
Ambient Working Temperature
|
-10~80 ℃ | |
|
Working Relative Humidity
|
‹ 90%
|
|
|
Storage Relative Humidity
|
‹ 80% | |
|
Screen
|
4 LED Angels | |
|
Output Current
|
Continuously Adjustable Nominal Value 0-10A | |
|
Overload Protection
|
✓
|
|
|
Circuit Protection
|
✓ | |
|
High Temperature Protection
|
✓ | |
|
Recovery Time
|
≤100uS | |
|
Temperature Coefficient
|
≤200PPM/ ℃
|
|
|
Ripple Noise
|
≤10mVrms（5Hz ~ 1MHz）/≤10mArms | |
|
Software
|
Latest Technology IC | |
|
Load Stability
|
≤ 0.5% | |
|
Load Effect Current
|
≤0,1%+5mV
|
|
|
Power Effect Current
|
≤0,01%+10mA | |
|
Fluctuation Voltage
|
≤20mVrms | |
|
Surge Current
|
≤10mKol
|
|
|
Screen Resolution Voltage
|
10mV | |
|
Screen Resolution Current
|
1mA | |
|
Readback Value Resolution Voltage
|
10mV | |
|
Readback Value Resolution Current
|
1mA
|
|
|

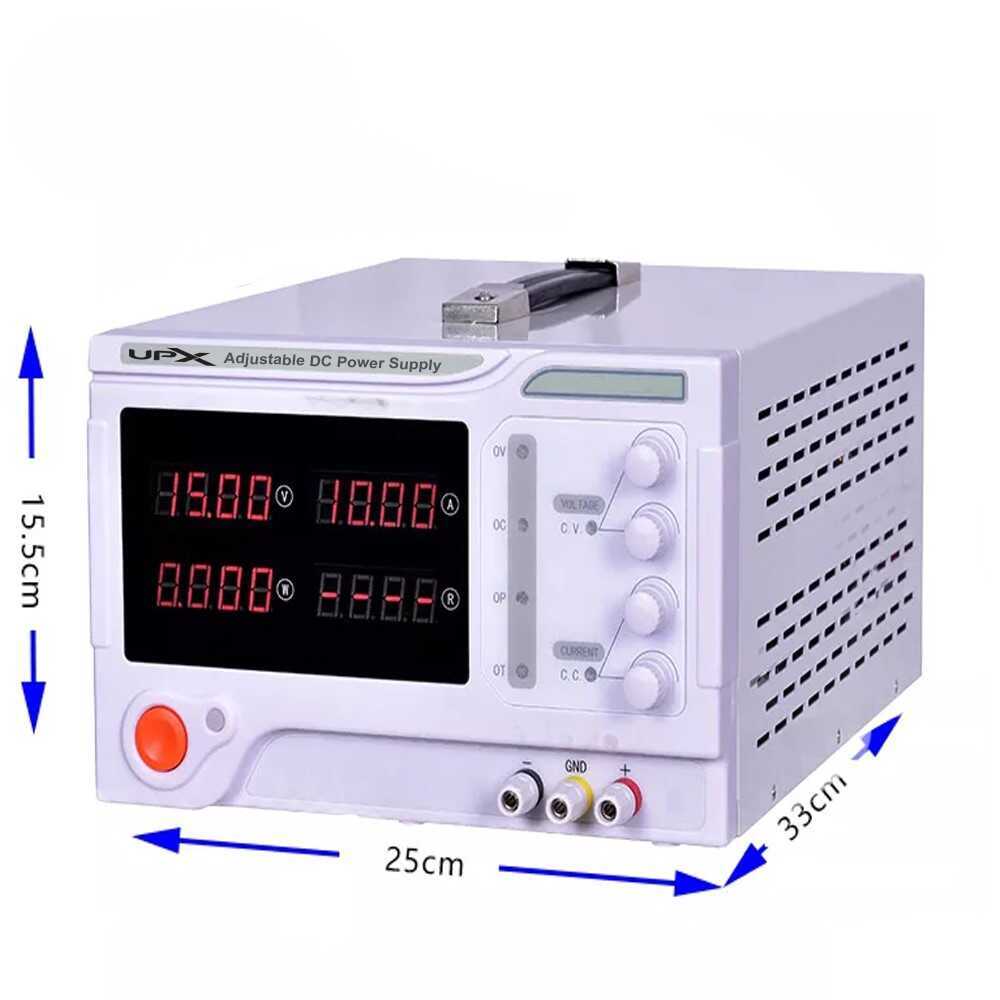

Dimensions
|
330(D)×250(W)×155(H)mm | |
|
Weight
|
5,5 kg | |
