WaveShare 4.3 inch HDMI Capasitve Touch LCD - 800x480 (B)

4.3inch, 800x480, Capacitive Touch Screen LCD, HDMI interface, Supports Multi mini-PCs, Multi Systems

Features:

• IPS screen, 800x480 hardware resolution, configurable by software (up to 1920x1080)

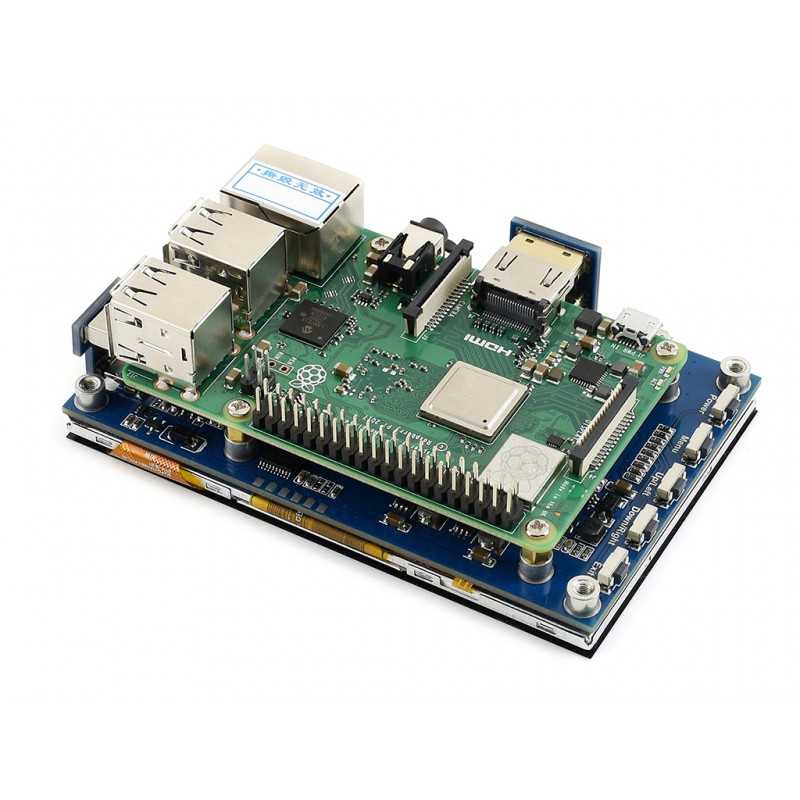

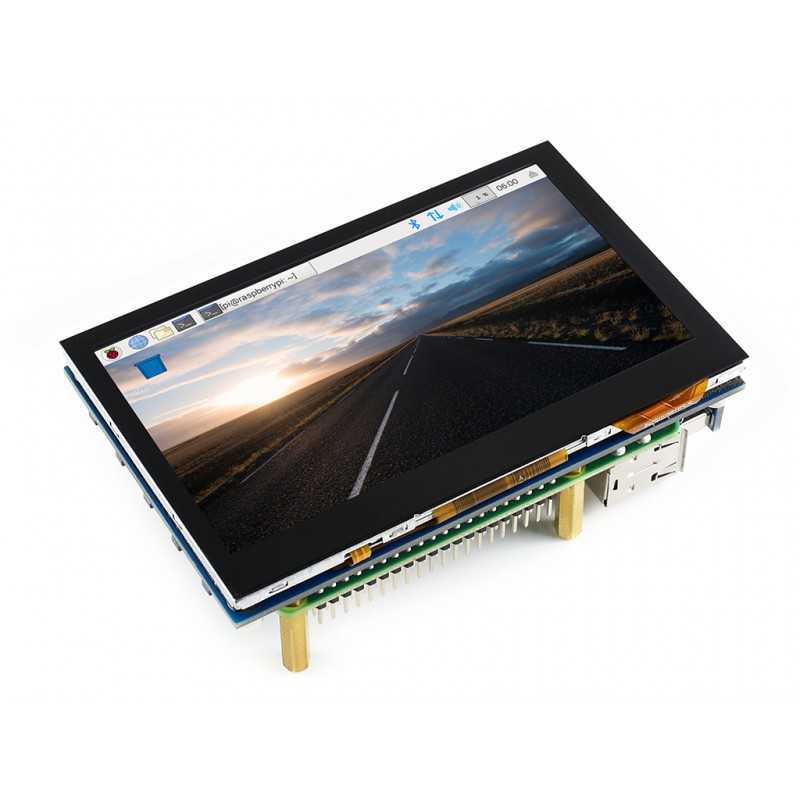

• Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers

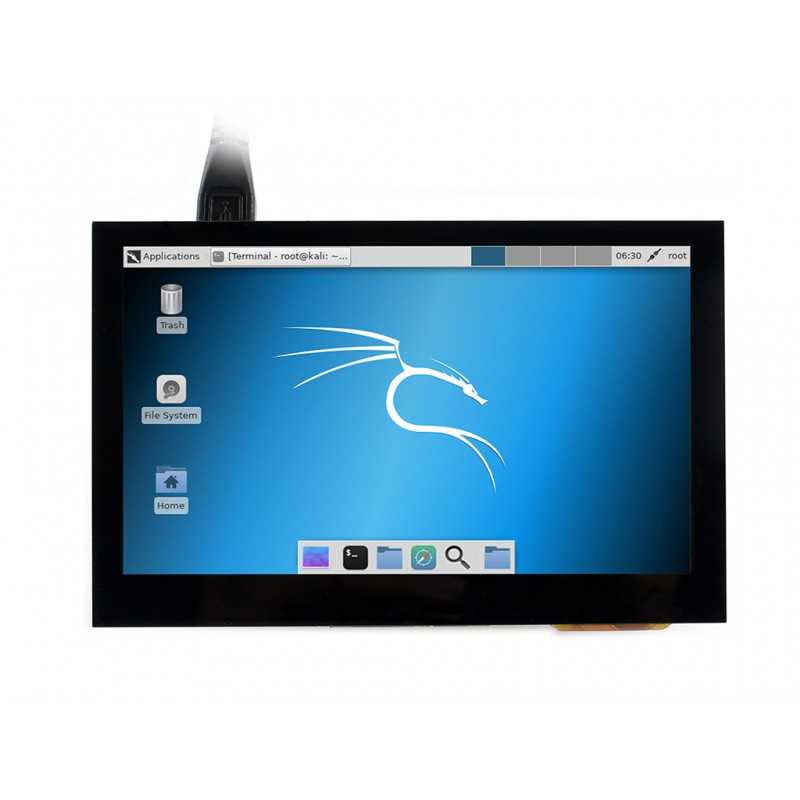

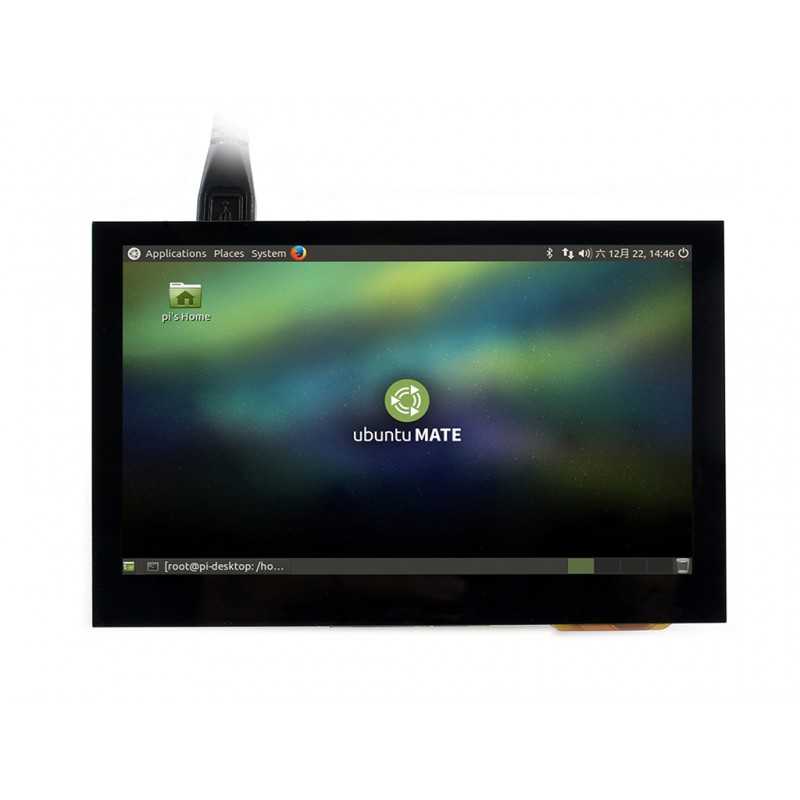

• When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free
• When work as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
• Multi languages OSD menu, for power management, brightness/contrast adjustment, etc.

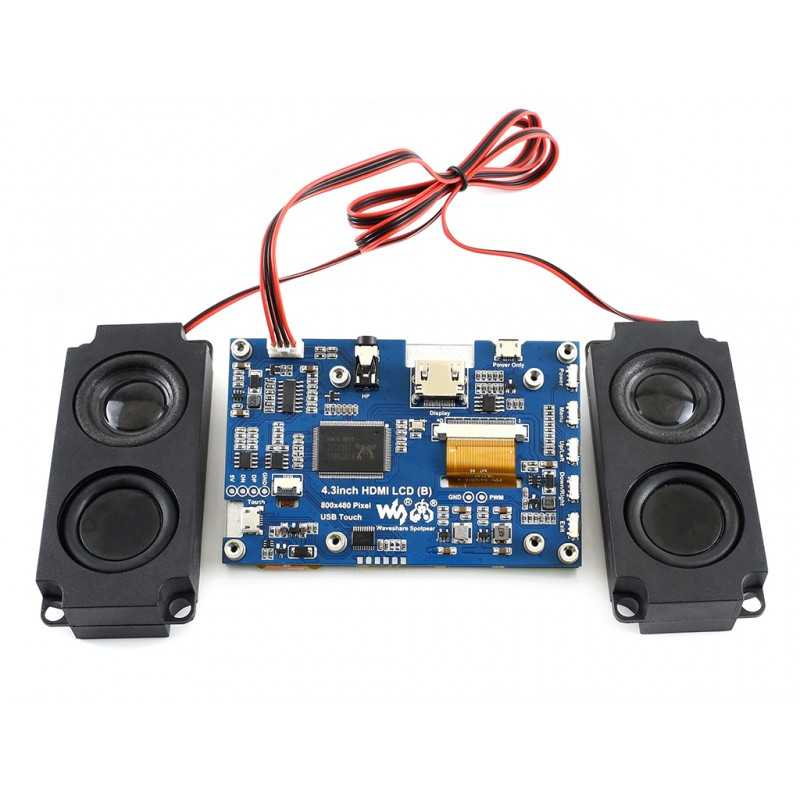

• 5mm audio jack, speaker connector, supports HDMI audio output



Using with Game Consoles:

Limited by the game console OS, the touch function is unavailable. Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

Dimensions:

Documents and Useful Links:

• Wiki page
• User manual
• Working with Volumio
• 3D drawing
