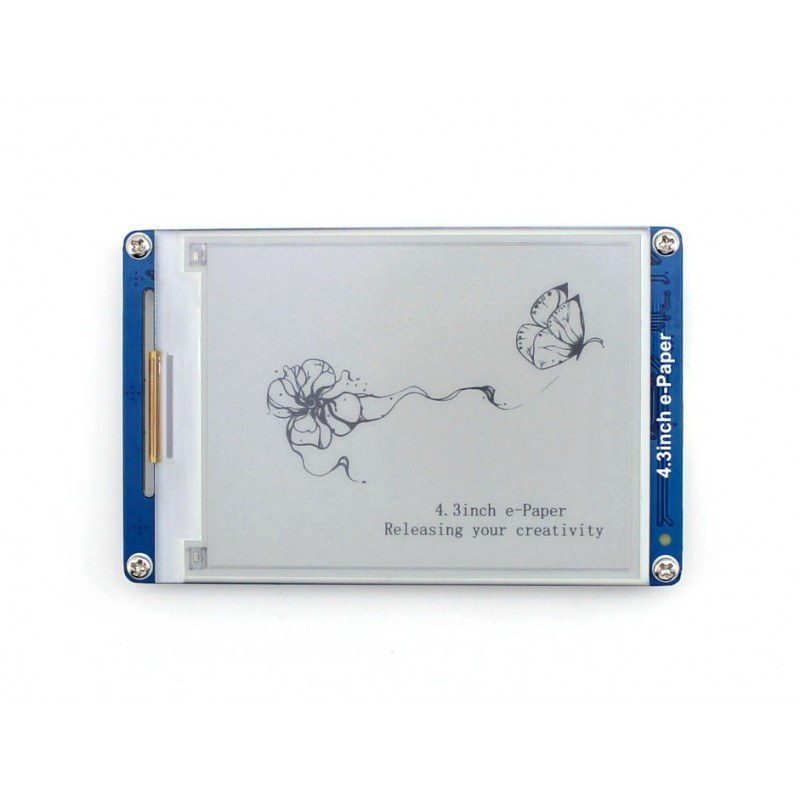

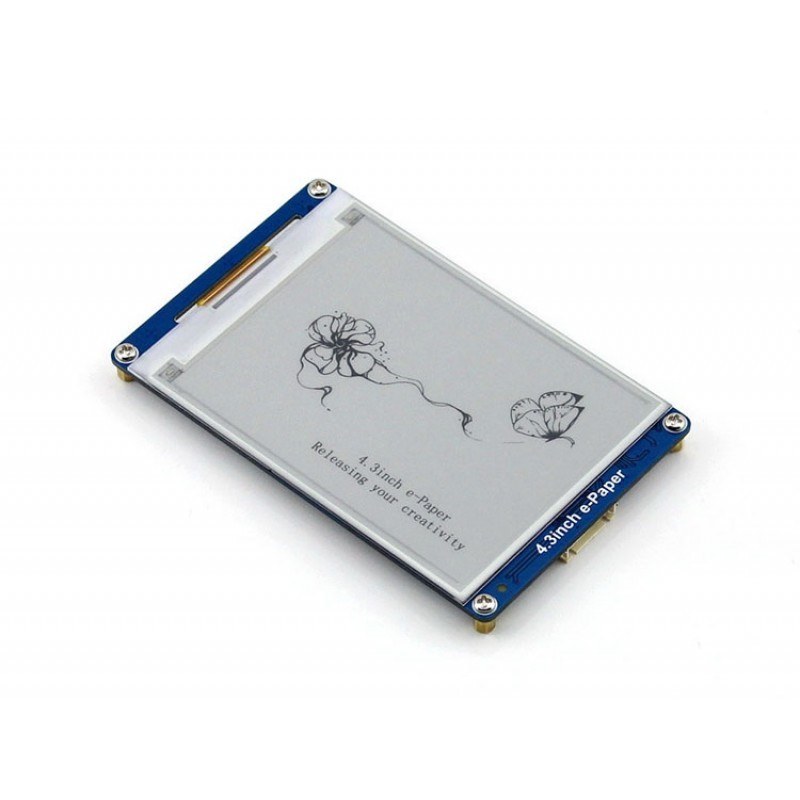

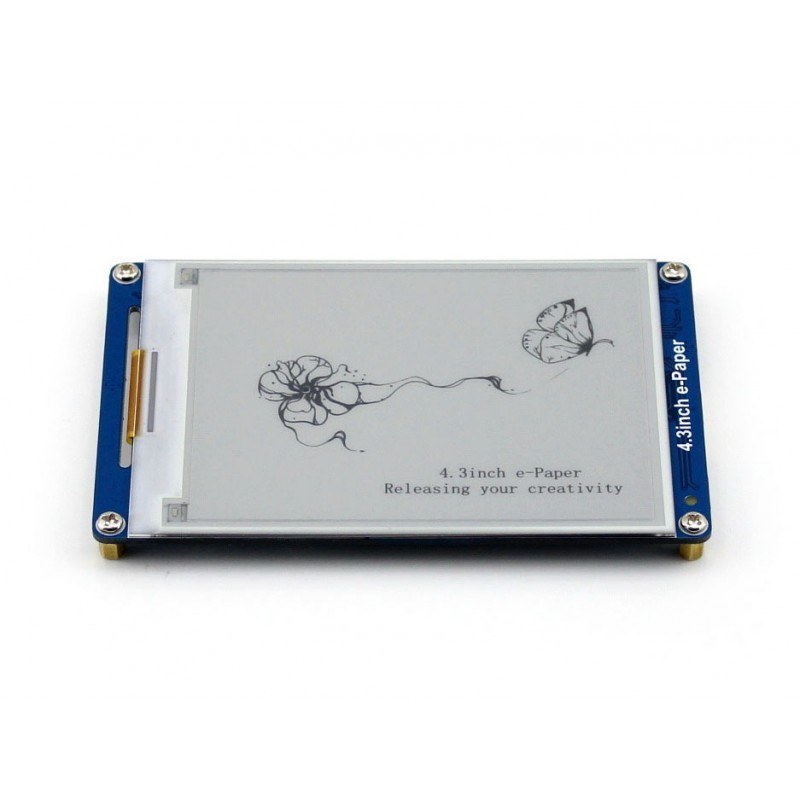

This is a 800 x 600 resolution 4.3" size e-Paper screen. It consumes ultra low power as it uses E-Ink technology. This screen also has internal font support, you can easily use this screen by connecting to computer or microcontrollers like Arduino via UART interface.
Technical Features:
- You can display writings, graphics and photos via serial interface.
- It supports 32, 48 and 64 dot matrix GBK Chinese and English fonts with its internal font library.
- It is possible to upload fonts and pictures using 128 mB internal NAND flash memory and SD card slot
- 4 stage grey tonning, 800 x 600 resolution
- Adjustable baurdate serial communication (default baud rate is 115200)
- It is possible the operate with 3.3 V and 5 V logic signals
- Ultra low power consumption, under 5 mA in stand-by mode
- PC software support.

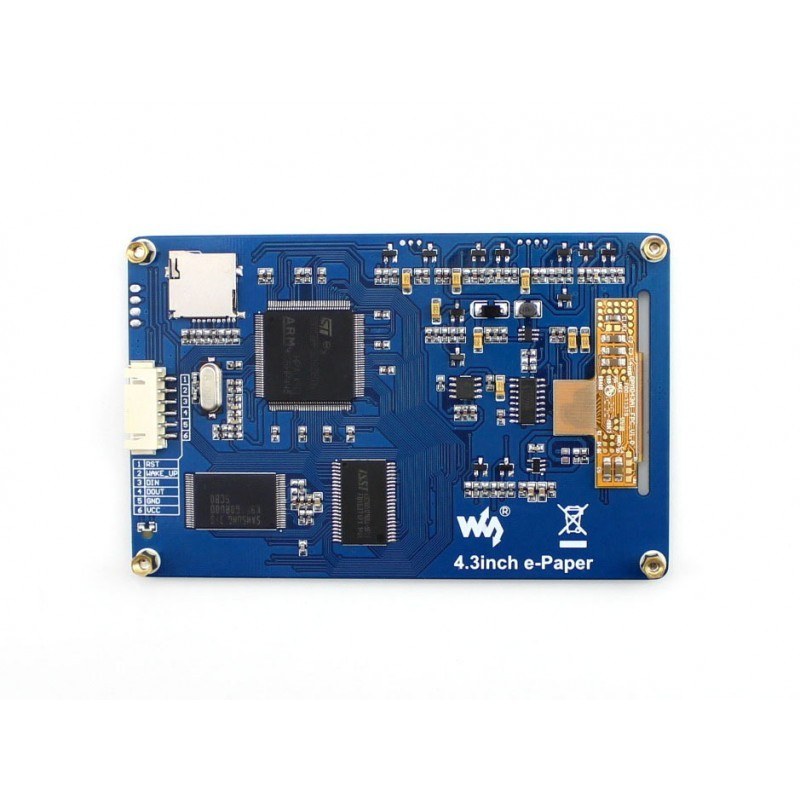

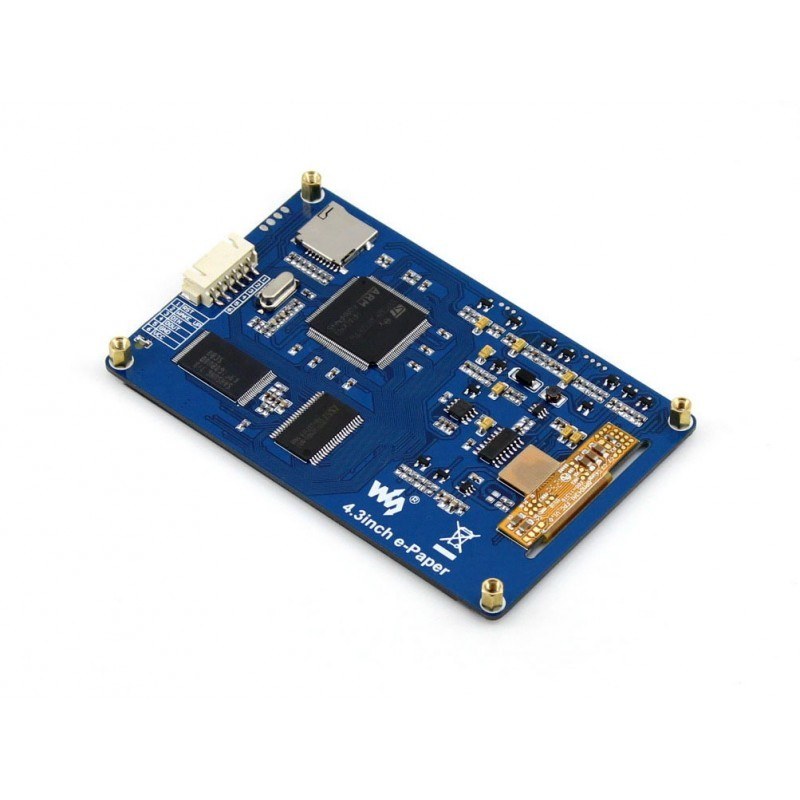

Pin Wiring:
- Vcc : 3.3 V - 5 V
- Gnd : Gnd
- Dout : Serial data out
- Din : Serial data in
- Wake_up : External wake up
- Rst : External Reset
Detailed information and example applications can be found in wiki page.
