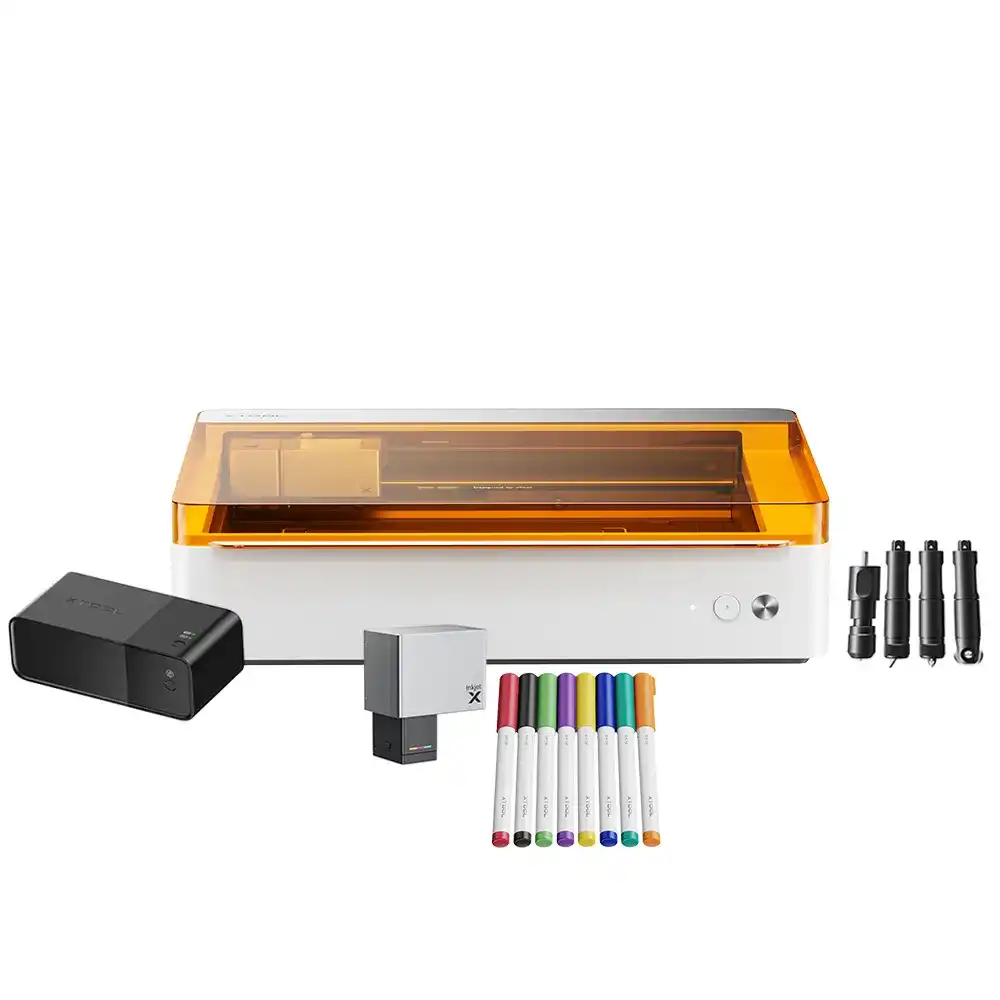

xTool M1 Ultra 20W Advanced

xTool M1 Ultra 20W Advanced

The xTool M1 Ultra 20W Advanced is a powerful and practical laser machine designed for cutting and engraving. With its 20W laser power, it works with high precision on a wide range of materials such as wood, leather, and acrylic. The smart camera system enables easy positioning and automatic focusing, simplifying the entire process. Thanks to its safe design and user-friendly interface, it can be used comfortably at home, in the office, or in a workshop. It's the perfect solution for all your creative projects.

Processing Capacity:

• Laser Type: Diyot Lazer

Processing Mode:

• Laser Cutting
• Laser Engraving
• Inkjet Printing
• Blade Cutting
• Foiling

Supported Materials:

• Laser Cuttable: Wood, Opaque Acrylic, Paper, MDF, Leather
• Blade Cuttable: Paper Cardstock, Vinyl, PVC, Leather
• Laser Engravable: Wood, Opaque Acrylic, Leather, Stainless Steel, Plated Metal
• Inkjet Printable: Paper, Cardstock, Wood, Canvas, Acrylic

Working Area:

• Laser Mode/Blade Mode/Pen Mode: 11.8'' x 11.8'' (300 mm x 300 mm)
• 11.61'' x 11.61'' (295 mm x 295 mm) for cutting blade
• Inkjet Mode: 11.7'' x 11.3'' (296 mm x 286 mm)
• Max. Working Speed: 15.75 ips (400 mm/s)

Max. Laser Cutting Capacity (Basswood):

• 20W: 0.39" (10 mm) in ONE PASS
• 10W: 0.24" (6 mm) in ONE PASS

Max. Laser Cutting Capacity (Acrylic):

• 20W: 0.31" (8 mm) in ONE PASS
• 10W: 0.20" (5 mm) in ONE PASS

Max. Blade Cutting Capacity:

• Fine-point Blade: 0.06" (1.5 mm)
• Cutting Blade: 0.10" (2.5 mm)

Max. Processing Height:

• Laser Mode: With Riser Base: 4.92" (125 mm)-Without Riser Base: 1.06" (27 mm)
• Inkjet Mode/Pen Mode/Blade Mode (Foiling): With Riser Base: 5.43" (138 mm)-Without Riser Base: 0.79" (20 mm)
• Max. Rotary Engraving Diameter: With Riser Base 0 - 3.90" (0-99 mm)

Smart Software:

• Supported Software: xTool Creative Space
• Operating System: Android/IOS/iPad/macOS/Windows
• Connection Method: USB/Wi-Fi/IP
• Supported Files: SVG/DXF/JPG/JPEG/PNG/BMP/TIF
• AImake Compatibility: Yes

Easy Operation:

• Pre-assembled: Yes
• Built-in Camera: No
• Positioning Method : Pin-Point™ Positioning
• Focus Mode: Autofocus

Accuracy & Precision:

• Laser Spot Size:
  10W Diode Laser: 0.0016" × 0.0024" (0.04 mm × 0.06 mm)
  20W Diode Laser: 0.0024" × 0.0031" (0.06 mm × 0.08 mm)


• Positioning Precision: 0,0008" (0,02 mm)
• Ranging Precision: 0,0039" (0,1 mm), Probe
• Image Resolution: No
• Motion Accuracy: 0,0004" (0,01 mm)

General Information:

• Safety Certification: Class 1 Laser Safety (TÜV SÜD Certified)
• Product Dimensions: 24,41'' x 19,61'' x 7,01'' (620 mm x 498 mm x 178 mm)
• Product Weight: 37,48 lb (17 kg)
• Max. Machine Input Power: 200W
• Power Adapter Input Voltage: 100 V - 240 V ~ AC 50/60 Hz
