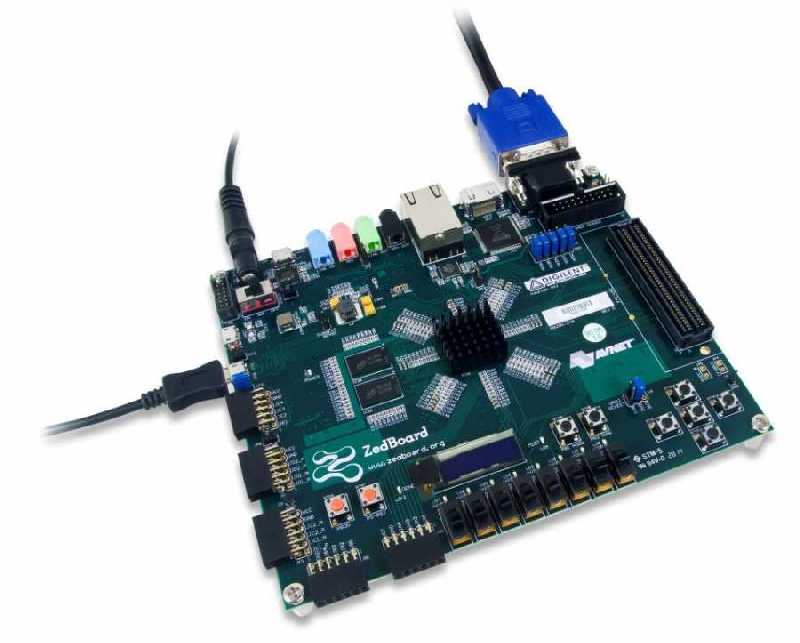

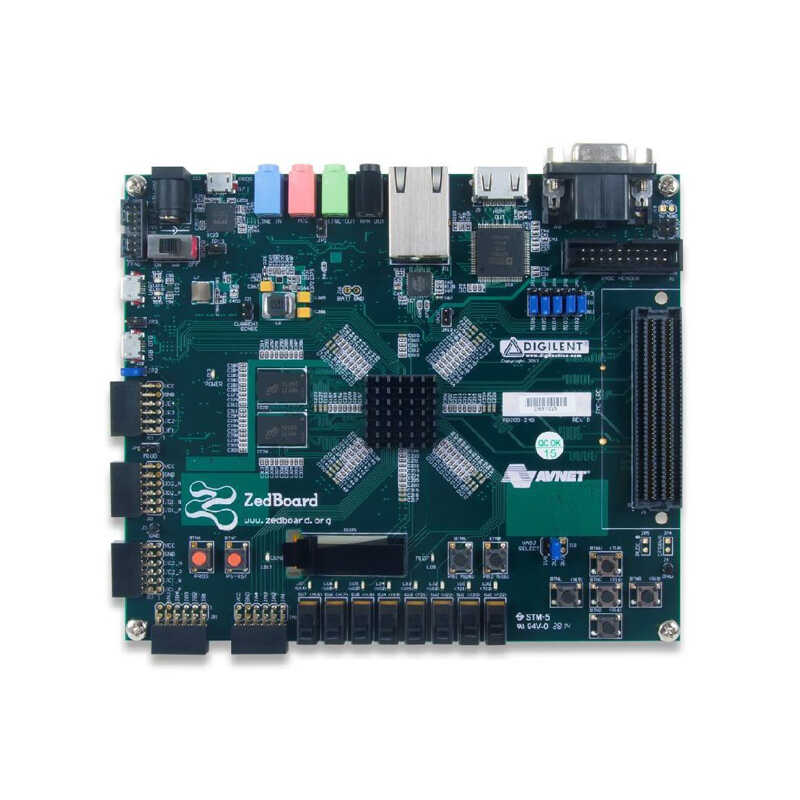

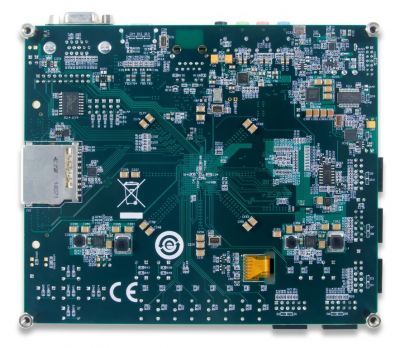

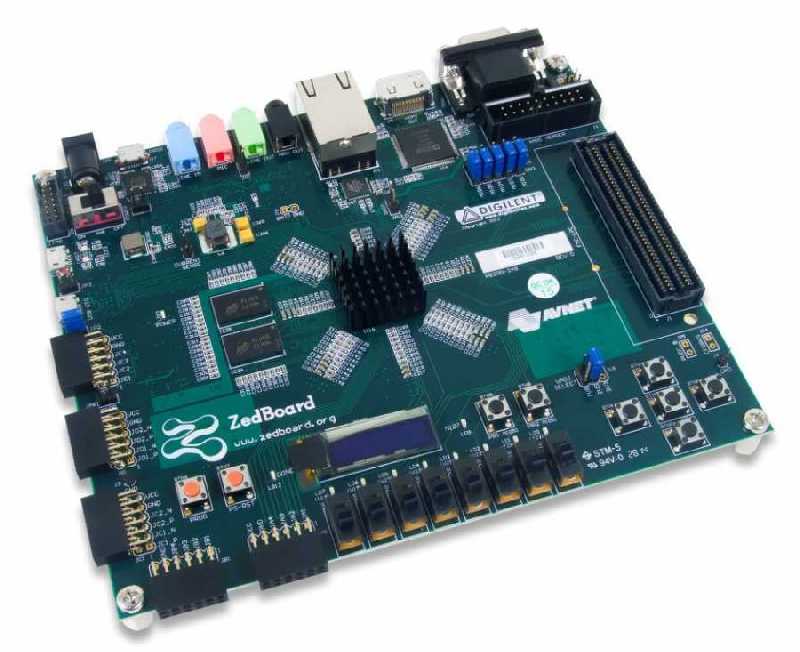

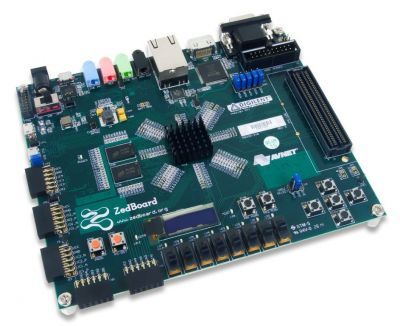

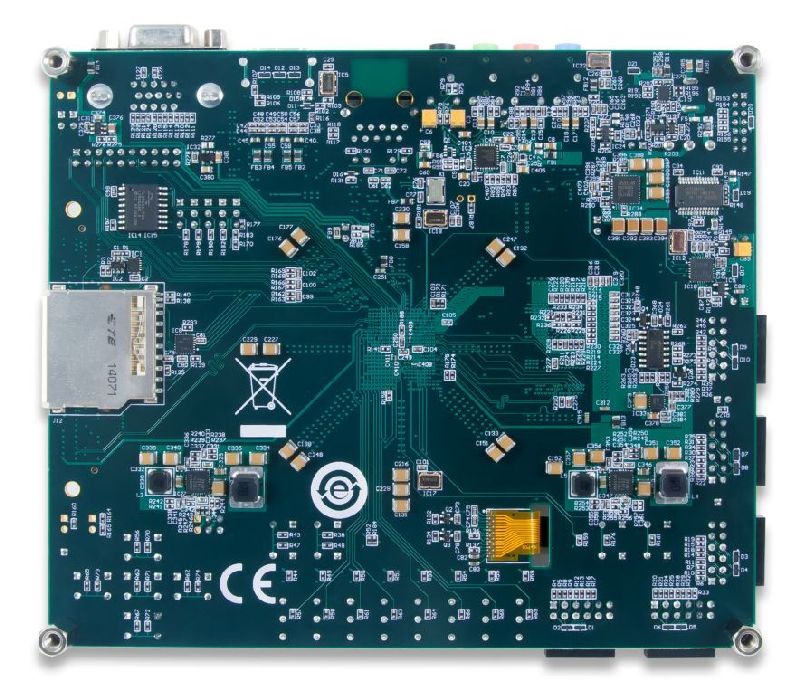

ZedBoard Zynq-7000

ZedBoard is a low cost development board for Xilinx Zynq™-7000 All Programmable SoC (AP SoC) (XC7Z020-CLG484) which includes internal USB-JTAG programmer. This card includes everthing that you need to create Linux, Android, Windows® and other OS/RTOS based designs. In addition, operating system for easy user and logic input/output can be provided by various expansion connectors.

Take advantage of Zynq-7000 AP SoC's tightly-coupled ARM® processor system and 7 series programmable logic for creating unique and powerful desings with ZedBoard

Features:

• Zynq-7000 AP SoC XC7Z020-CLG484
• Dual processor ARM Cortex A9
• Memory:
• 512 MB DDR3
• 256 Mb Quad-SPI Flash
• 4 GB SD card
• Dahili USB-JTAG programmer
• 10/100/1000 Ethernet
• USB OTG 2.0 and USB-UART
• PS & PL I/O expansion (FMC, Pmod™, XADC)
• Multiple display (1080p HDMI, 8-bit VGA, 128 x 32 OLED)
• I2S Audio CODEC

Target Applications:

• Video processing
• Motor control
• Software acceletarion
• Linux/Android/RTOS development
• Embedded ARM® processing
• General Zynq™-7000 AP SoC prototype

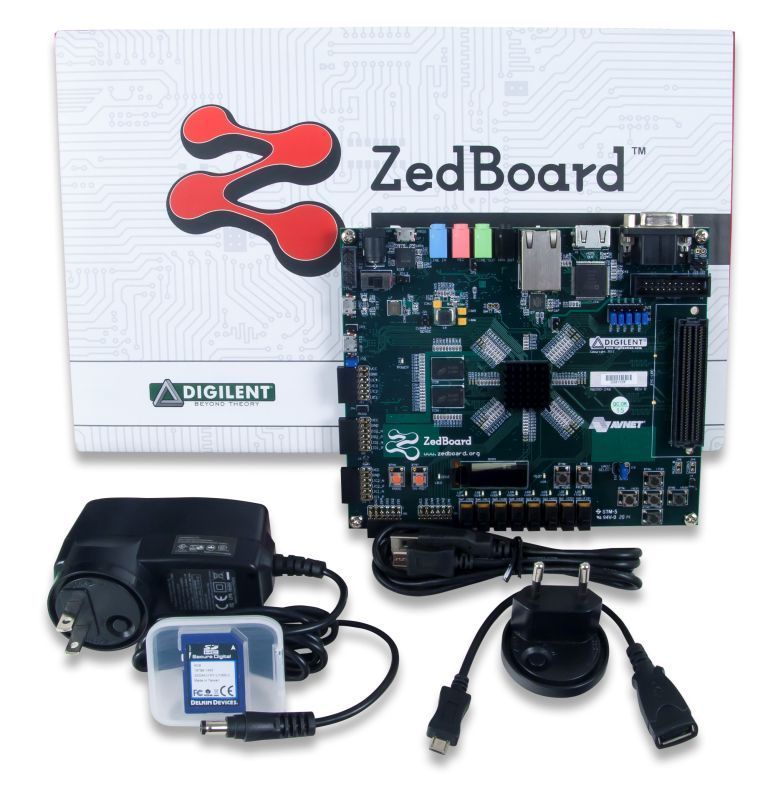

Package Contents:

• ZedBoard 7020 baseboard
• 12 V AC/DC power supply
• 4 GB SD Card
• Micro-USB cable
• USB Adapter: Male Micro-B - Female Standart-A
• Start Guide
• Device specific ChipScope license and ISE® WebPACK™

Documents:

• Zedboard web page
• Zynq-7000 web page
• Datasheet
• Circuit schematic
• Wiki page
