Zybo Z7-20 ARM&FPGA SoC Developement Board

Brand
Digilent
Product Code
17960
İşlemci
ARM® Cortex™-A9
Bağlantı Noktası
USB
Kablosuz Bağlantı
Yok
Hafıza
1GB
Fiyat
: 17,551.40 TL + VAT
KDV Dahil Fiyat
: 21,061.69 TL

If product will be used in academic studies, product's price is $339+Tax. If you want to take advantage of the academic discount, you will need fill Academic Price Request Form. Then you must send it to [email protected] via e-mail. You will be contacted by us as soon as possible.

Zynq-7000 ARM/FPGA SoC Developement Board

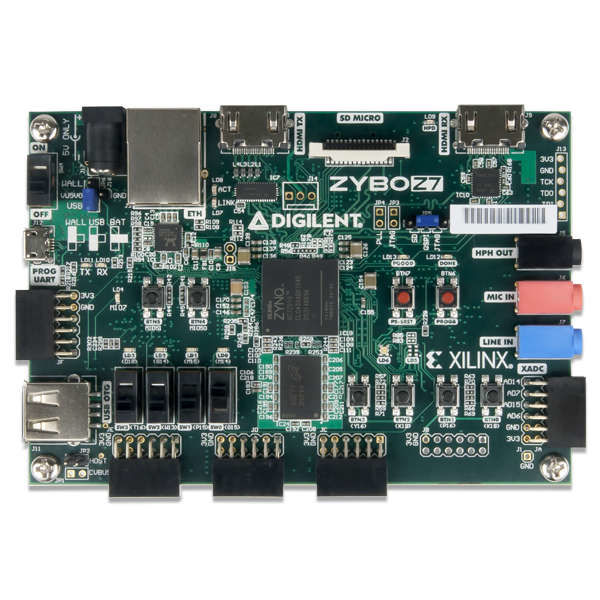

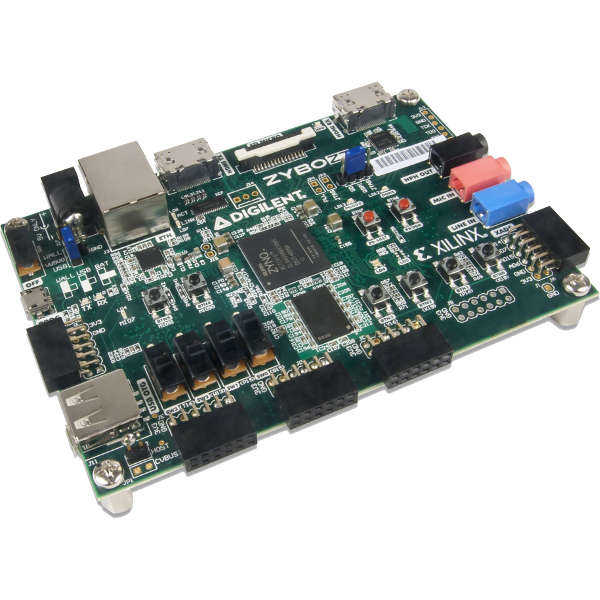

The Zybo Z7 is a feature-rich, ready-to-use embedded software and digital circuit development board built around the Xilinx Zynq-7000 family. This is the second generation update to the popular Zybo that was released in 2012. The Zynq family is based on the Xilinx All Programmable System-on-Chip (AP SoC) architecture, which tightly integrates a dual-core ARM Cortex-A9 processor with Xilinx 7-series Field Programmable Gate Array (FPGA) logic. The Zybo Z7 surrounds the Zynq with a rich set of multimedia and connectivity peripherals to create a formidable single-board computer, even before considering the flexibility and power added by the FPGA. The Zybo Z7's video-capable feature set, including a MIPI CSI-2 compatible Pcam connector, HDMI input, HDMI output, and high DDR3L bandwidth, was chosen to make it an affordable solution for the high end embedded vision applications that Xilinx FPGAs are popular for. Attaching additional hardware is made easy by the Zybo Z7's Pmod connectors, allowing access to Digilent's catalog of over 70 Pmod peripheral boards, including motor controllers, sensors, displays, and more.



Product contents: ZYBO Z7-20 board

Zybo Z7 comes in two APSoC variants: Zybo Z7-10 features Xilinx XC7Z010-1CLG400C. Zybo Z7-20 features the larger Xilinx XC7Z020-1CLG400C. Users will select which variant they would like at checkout.
Zybo Z7-10 Zybo Z7-20
FPGA part XC7Z010-1CLG400C XC7Z020-1CLG400C
1 MSPS On-chip ADC Yes Yes
Look-up Tables (LUTs) 17,600 53,200
Flip-flops 35,200 106,400
Block RAM 270 KB 630 KB
Clock Management Tiles 2 4
Available Shield I/O 32 40
Total Pmod Ports 5 6
Fan Connector No Yes
Zynq Heat Sink No Yes
HDMI CEC Support TX port only TX and RX ports
RGB LEDs 1 2


Zybo Z7-10 ARM&FPGA SoC Technical Specifications:
ZYNQ Processor:
  • 667 MHz dual-core Cortex-A9 processor
  • DDR3L memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
  • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
  • Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
  • Programmable from JTAG, Quad-SPI flash, and microSD card
  • Programmable logic equivalent to Artix-7 FPGA
Memory:
  • 1 GB DDR3L with 32-bit bus @ 1066 MHz
  • 16 MB Quad-SPI Flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64™ compatible identifier
  • microSD slot
Power:
  • Powered from USB or any 5V external power source
USB and Ethernet:
  • Gigabit Ethernet PHY
  • USB-JTAG Programming circuitry
  • USB-UART bridge
  • USB 2.0 OTG PHY with host and device support
Audio and Video:
  • Pcam camera connector with MIPI CSI-2 support
  • HDMI sink port (input) with CEC
  • HDMI source port (output) with CEC
  • Audio codec with stereo headphone, stereo line-in, and microphone jacks
Switches, Push-buttons, and LEDs:
  • 6 push-buttons (2 processor connected)
  • 4 slide switches
  • 5 LEDs (1 processor connected)
  • 2 RGB LEDs
Expansion Connectors:
  • 5 Pmod Ports:
  • 8 Total Processor I/O
  • 40 Total FPGA I/O
  • 4 Analog capable 0-1.0V differential pairs to XADC
