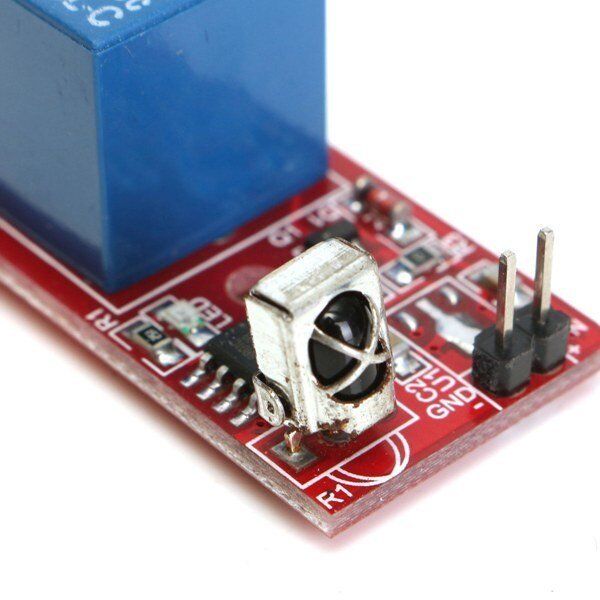

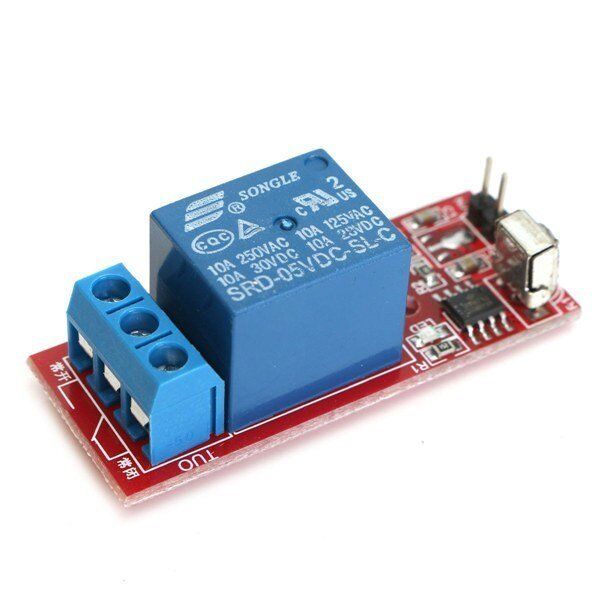

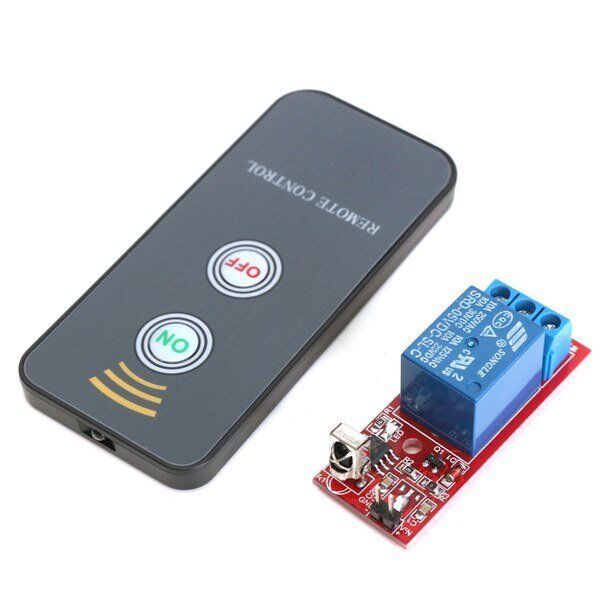

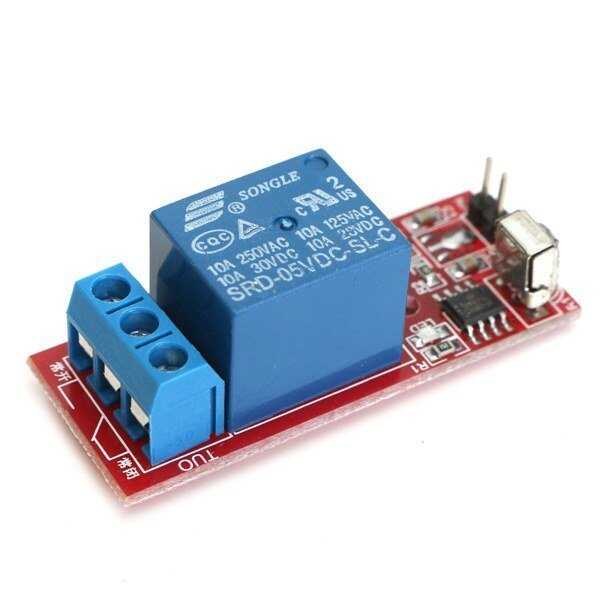

Infrared remote controlled 5V relay board
Relay remotely controlled with the supplied IR remote.
When you press the ON button, relay switches, indicator lights up; when you press the OFF, relay switches off and light turns down.
Single IR Controlled Relay Board Technical Specs:
- Operating voltage: 5V DC
- Quiescent Current: 1 mA
- The current required to maintain contact closure: 80 mA
- On the remote control responds at a distance of up to 8 meters
- Self locking function
- Dimensions: 50 x 20 x 20 (mm)

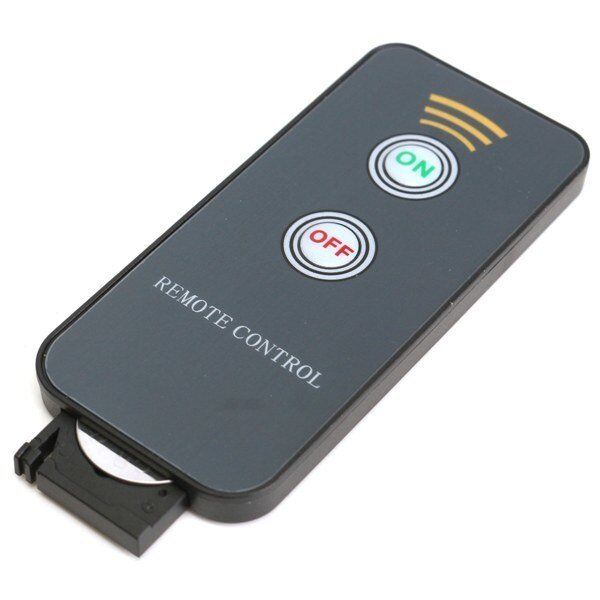

Remote Specs:
- UPD6122 uses chip, NEC encoding format
- User code: 0x00FF
- Core values: "ON": 40; "OFF" button: 19
- Power supply: 1 x CR2025 batteries
- Dimensions: 86 x 40 x 6 (mm)
