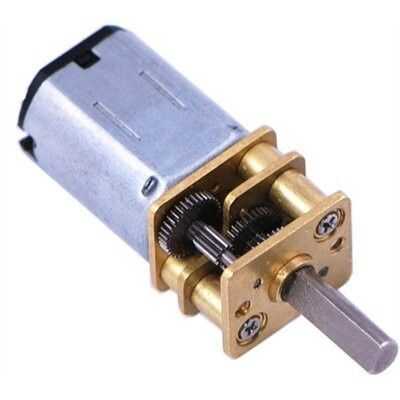

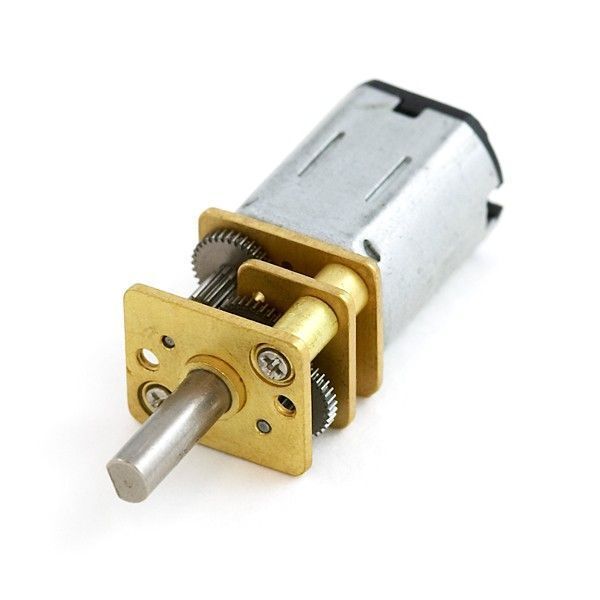

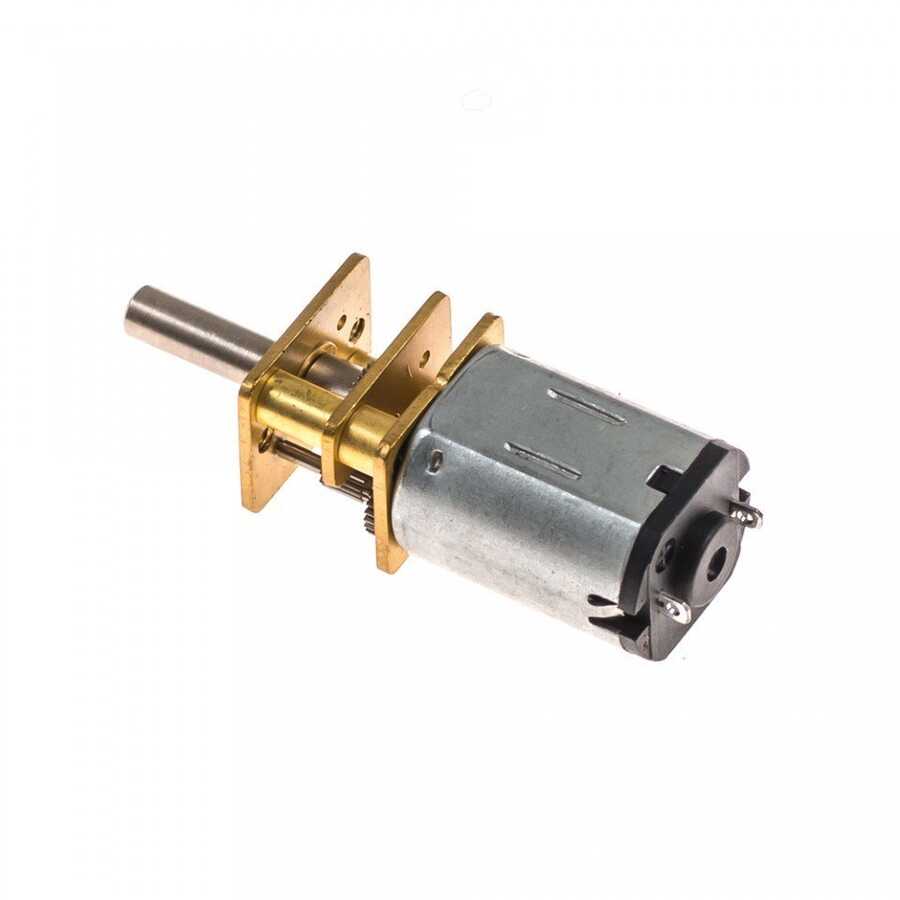

12V 12mm with RPM/min: 300

12V 12mm with RPM/min: 300

Thanks to its reducer structure, the motor provides great convenience in providing high torque output. It allows you to obtain a long-lasting, durable and stable result thanks to its gearbox structure as well as the material of its outer casing made of metal. This part uses a two-wire connection and supports PWM speed control as well as directional control. In this way, it offers you the possibility of a more detailed project planning. Thanks to its harmonious structure, it has the equipment to see your work in all kinds of projects. The engine has RPM types for different needs on our website.

Specifications:

• Working Voltage: 12V
• Speed: 300 Rpm / Min
• Motor Diameter: 12mm
• Reducer Diameter: 12mm
• Torque: 3 kg/cm
• Idle Current: 100mA ± 50mA
• Stall Curent: 0.8A
• Shaft: 3mm D Shaft
• Shaft Length: 10mm
• End to End Length: 24mm
• Weight: 9.5 gr

Package Included:

• 12V 12mm with RPM/min: 300
