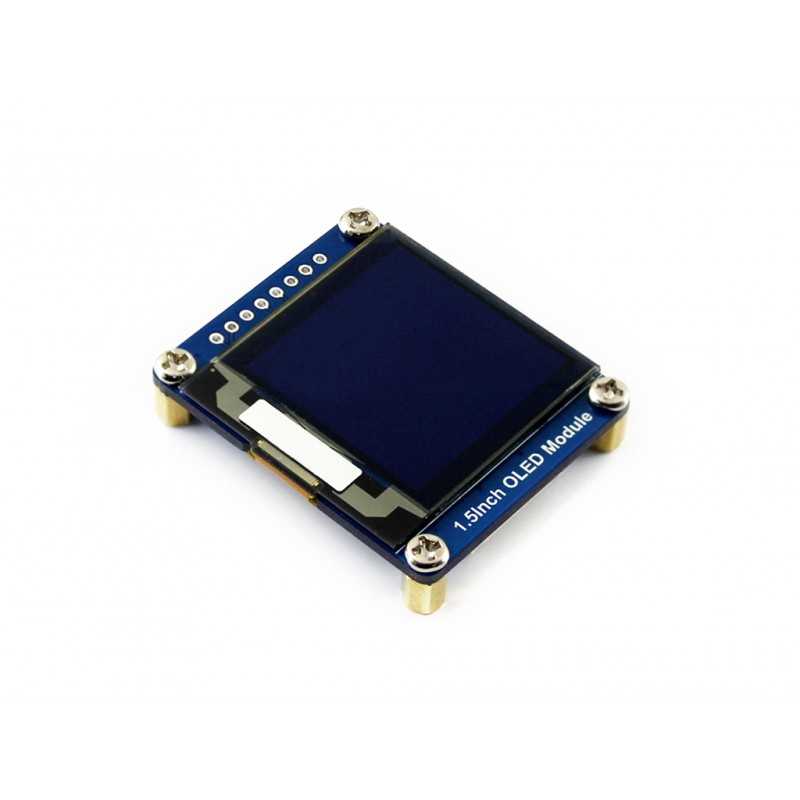

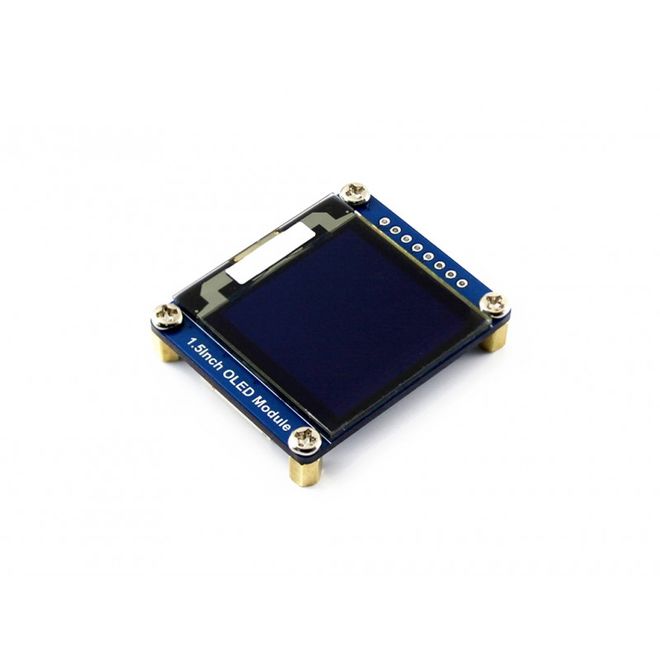

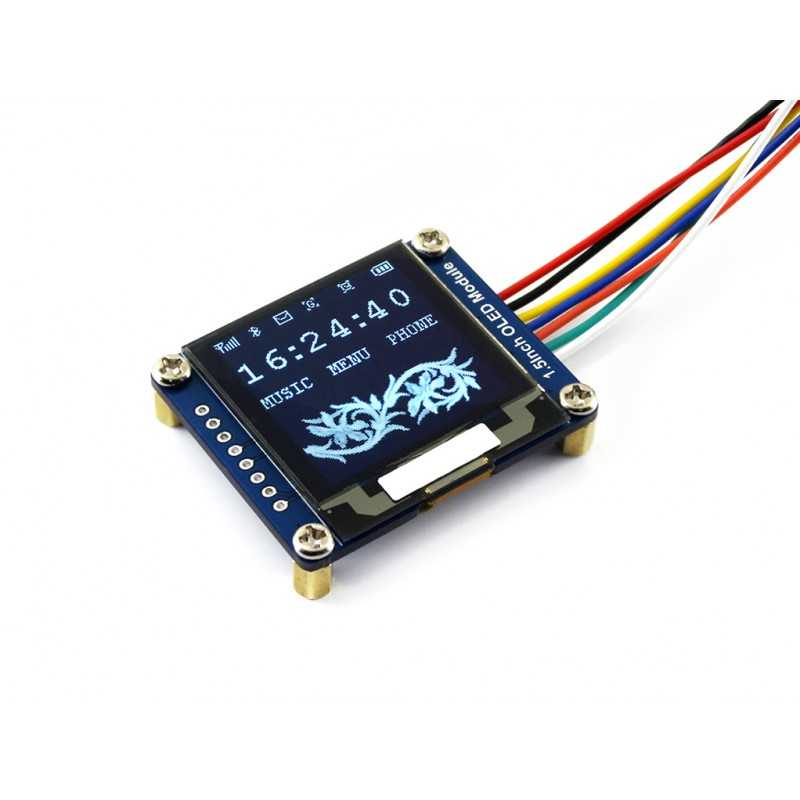

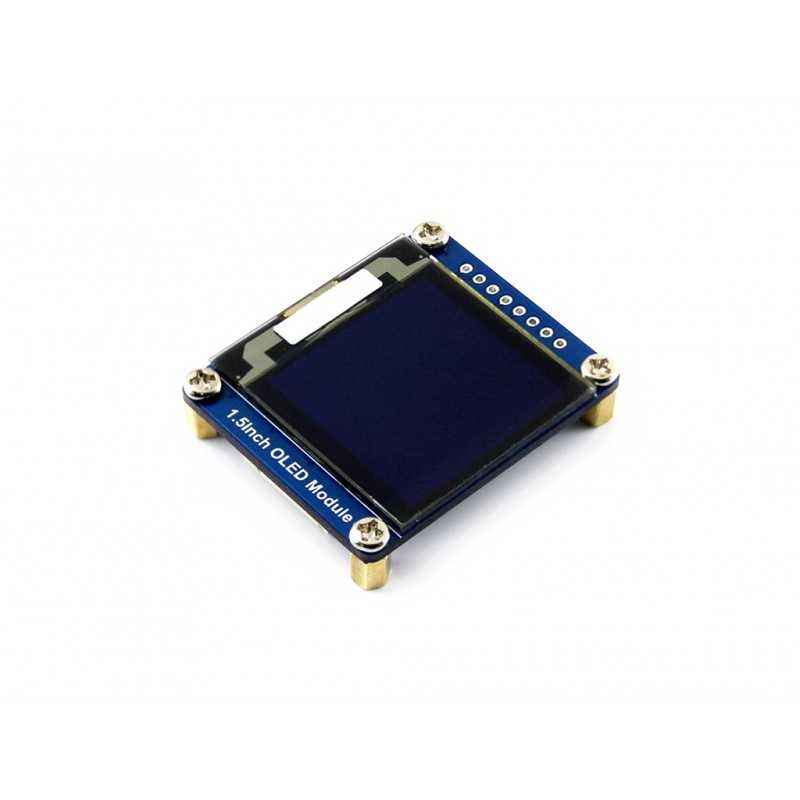

Gelince Haber VerThis is a general OLED display Module, 1.5inch diagonal, 128x128 pixels, 16 gray scale, with embedded controller, communicating via SPI or I2C interface.

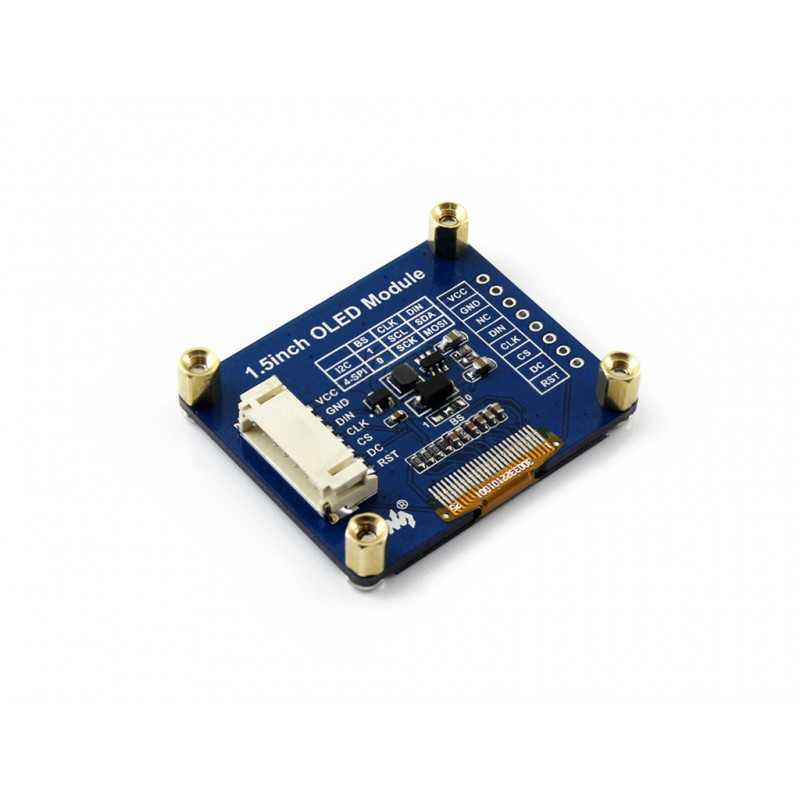

SYMBOL | DESCRIPTION |
---|---|
VCC | Power (3.3~5V input) |
GND | Ground |
DIN | Data input |
CLK | Clock data input |
CS | Chip selection, low active |
DC | Data/Command selection (high for data, low for command) |
RST | Reset, low active |
There are two available drive interfaces for this OLED module: 4-wire SPI and I2C:
BS | CS | DC | DIN | CLK | |
---|---|---|---|---|---|
4-wire SPI | 0 | Chip select | Data/Command | MOSI | SCK |
I2C | 1 | NC | I2C address selection | SDA | SCL |
