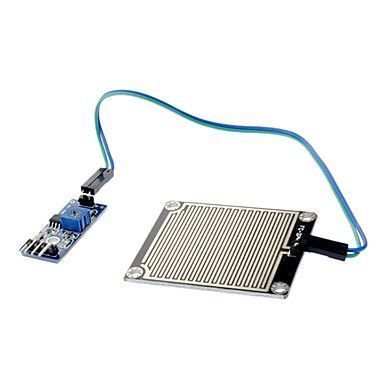

This product can be used as a drop of rain and water sensor.

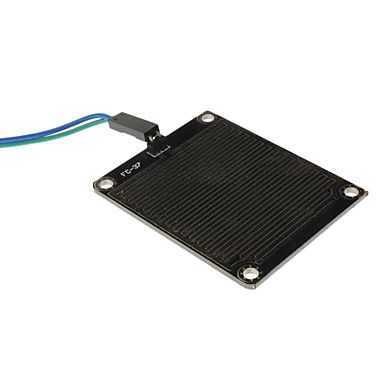

A result of conductive lines which are extruded parallel to each other, contact with water, the sensor output value can be read on an analog PIN. It can be used with lots of microcontroller platforms such as Arduino. The use of the sensor is quite simple. Supply voltage and a ground connection is made and the output leg of the sensor can be read. It can

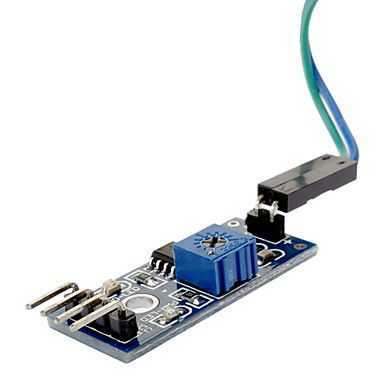

Through to giving both digital and analog output, it is easily adaptable to different systems. The sensitivity of sensor can be adjustabled via potentiometer which is on the sensor.
Sensor Usage:
By from the PIN Vcc to 5V, GND to a ground pin the connection is done, Analog read from A0 pin and digital read from D0 pin can be output.
Package Includes:
- Rain Sensor
- The output of the sensor comparator circuit
- Jumper Cables
Features:
- Operating Voltage: 5V
- Operating Current: <20mA
- Sensor Output: Dijital ve Analog
- Sensor sensitivity setting
- Sensor Area: 50x38x10mm
