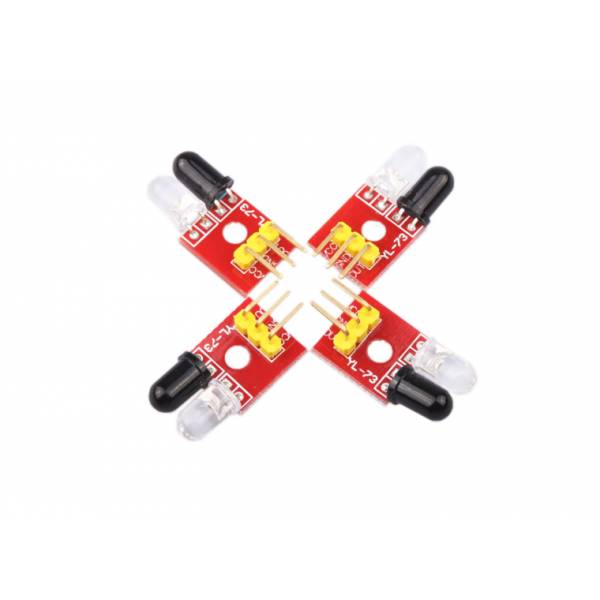

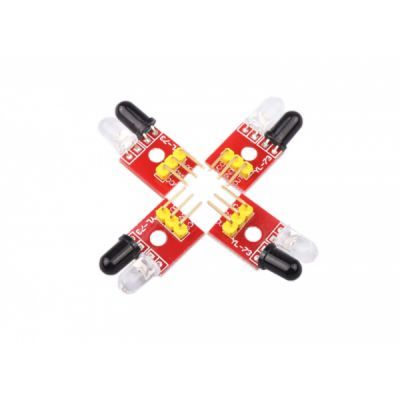

4 Way Tracking Module is a kit that contains 4 infrared tranciever modules. It can detect a line is present or not through this modules. All of the sensors' sensitivity and distance set can be set via the potentiometer on the controller board.

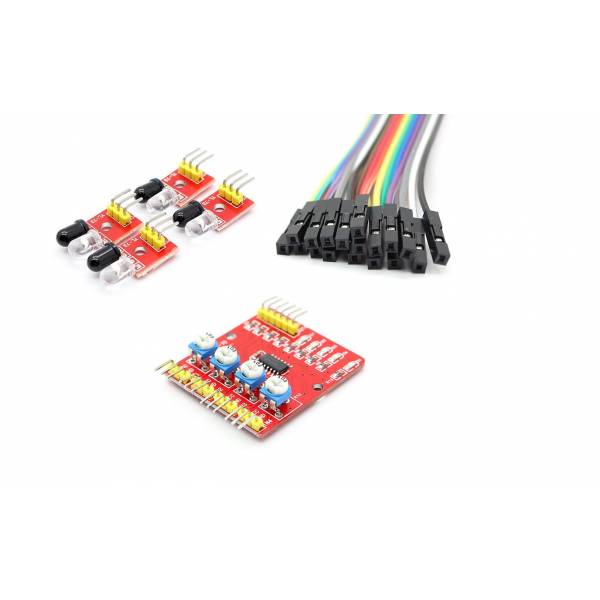

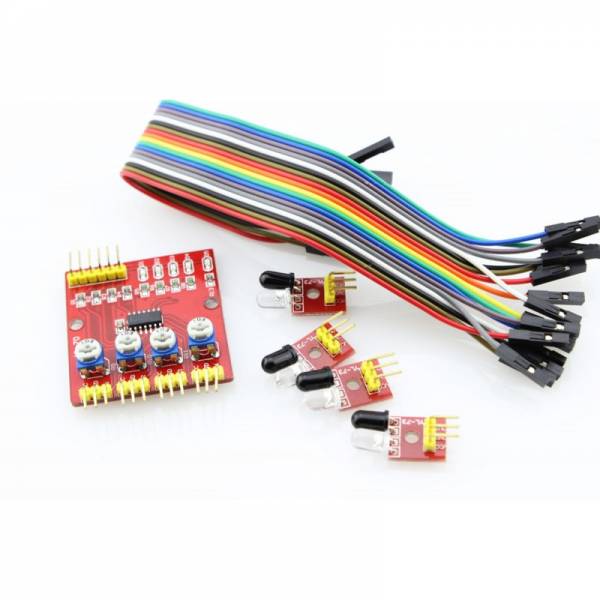

The connection between controller board and sensor can be made by jumper wires and this jumper wires are included in this kit. Thanks to the fixing screw holes on sensors, the sensors can be positioned as vertical or horizontal.

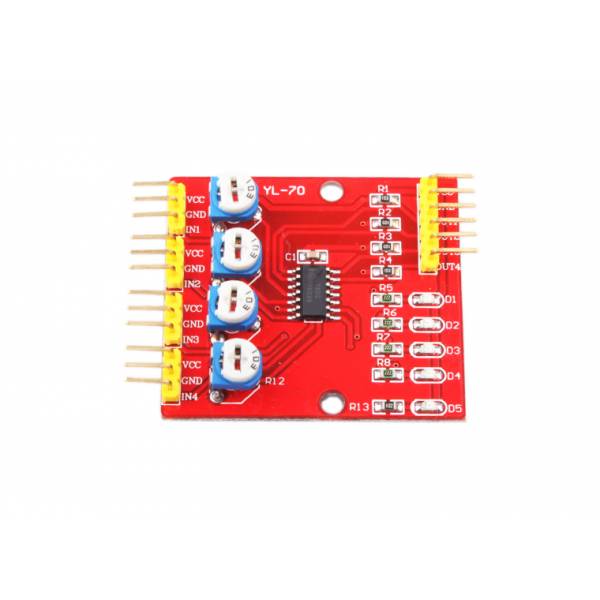

Controller board includes OUT pins ,to get the outputs of 4 sensors, Vcc and GND pins. In addition to these for each output, there is a LED on controller board.
Features:
- Operating Voltage: 3,3-5V
- Fixing Screw Holes: M3
- Adjustable Distance Set from 1mm to 10cm
- Controller Board Dimensions: 42x38x12mm
- Sensor Dimensions: 25x12x12mm
- Board Output: Digital
