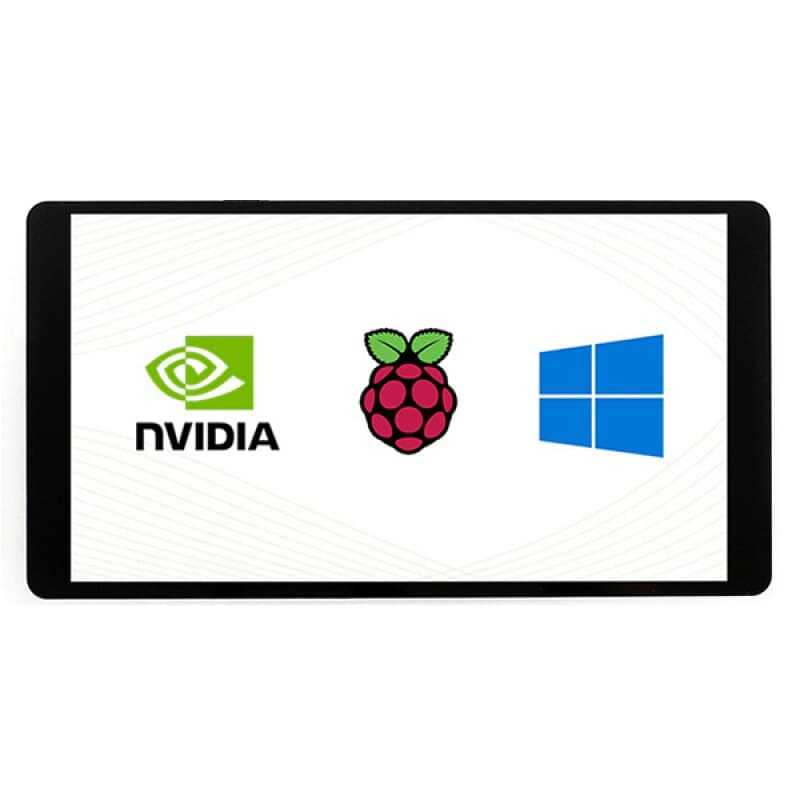

5.5inch Capacitive Touch AMOLED Display, 1080×1920, HDMI, Toughened Glass Cover

AMOLED is a display technology and stands for Active Matrix Organic Light Emitting Diodes. Does not need backlight. In this way, thinner screens can be used on phones. The fact that the backlight will not be used makes AMOLED displays more prominent in energy efficiency.



5.5inch Capacitive Touch AMOLED Display Pin Diagram:


5.5inch Capacitive Touch AMOLED Display Technical Specifications:

  • Size: 5.5”
  • Resolution: 1080x1920
  • Display Port: HDMI
  • Display Panel: AMOLED
  • Viewing Angle: 170°
  • Touch Type: Capacitive
  • Touch Points: 5 Points
  • Touch Port: USB
  • Audio Output: 3.5mm Jack



5.5inch Capacitive Touch AMOLED Display Dimensions:


Raspberry Pi:

  • It supports Raspbian, provides 5-point touch and is driverless.
  • It supports Ubuntu / Kali / WIN10 IoT, provides single point touch and is driverless.
  • It supports Retropie and is driverless. It supports all versions of Raspberry Pi.
  • It supports Ubuntu, provides single point touch and is driverless. It supports Ubuntu, provides single point touch and is driverless.


Jetson Nano:

  • It supports Ubuntu, provides single point touch and is driverless.

PC:

  • It supports Windows 11/10/8.1/8/7, provides 5-point touch and is driverless.



What is the difference between AMOLED screen and LCD screen?

LCD and AMOLED displays are two of the most common display technologies. LCD screens have organic liquid pixels that are illuminated by a backlight. AMOLED displays also have organic liquid pixels, but they can illuminate themselves. Thanks to active matrix technology, AMOLED displays are even brighter than OLED displays.

Is AMOLED screen safe for eye health?

AMOLED displays are recommended to consumers not only because of their breathtaking appearance, but also because they are one of the safest eye-health-safe display technologies ever developed.



5.5inch Capacitive Touch AMOLED Display Package Contents:

  • 1 x 5.5 inch HDMI AMOLED
  • 1 x HDMI Cable
  • 1 x USB Type A Plug to Micro B Plug Cable
  • 1 x HDMI Adapter(B)
  • 1 x USB Adapter(B)
  • 1 x HDMI to Micro HDMI Adapter(C)
  • 1 x USB Adapter(C)
  • 1 x Screw Set
