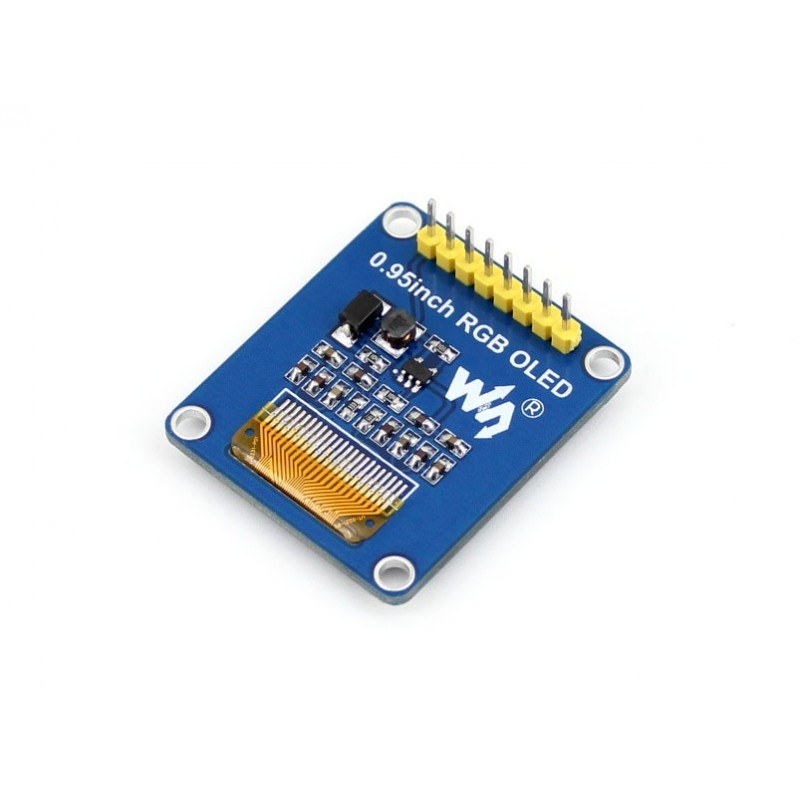

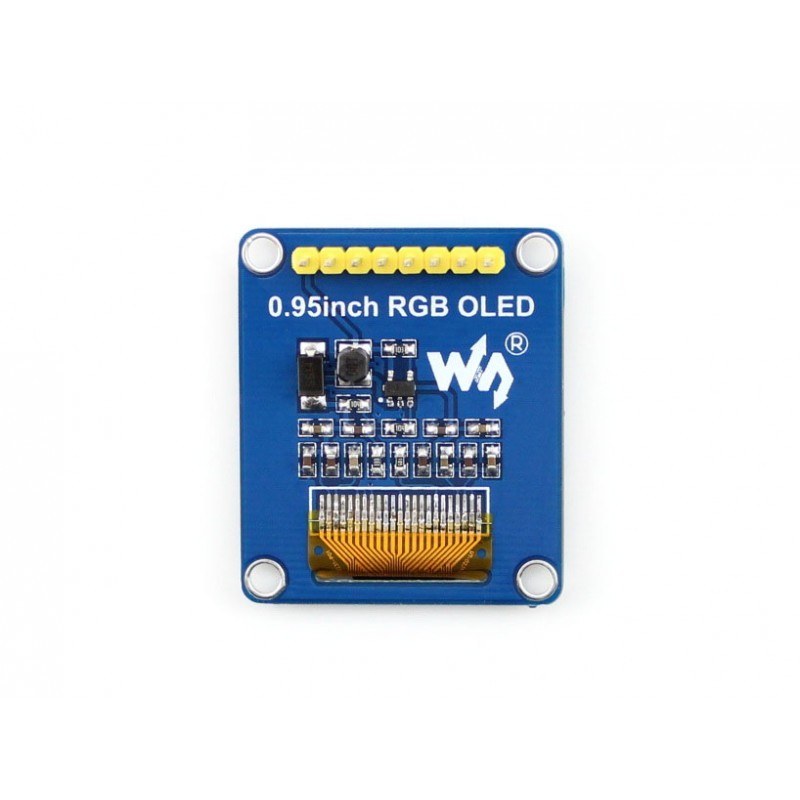

WaveShare 0.95 inch RGB OLED Screen

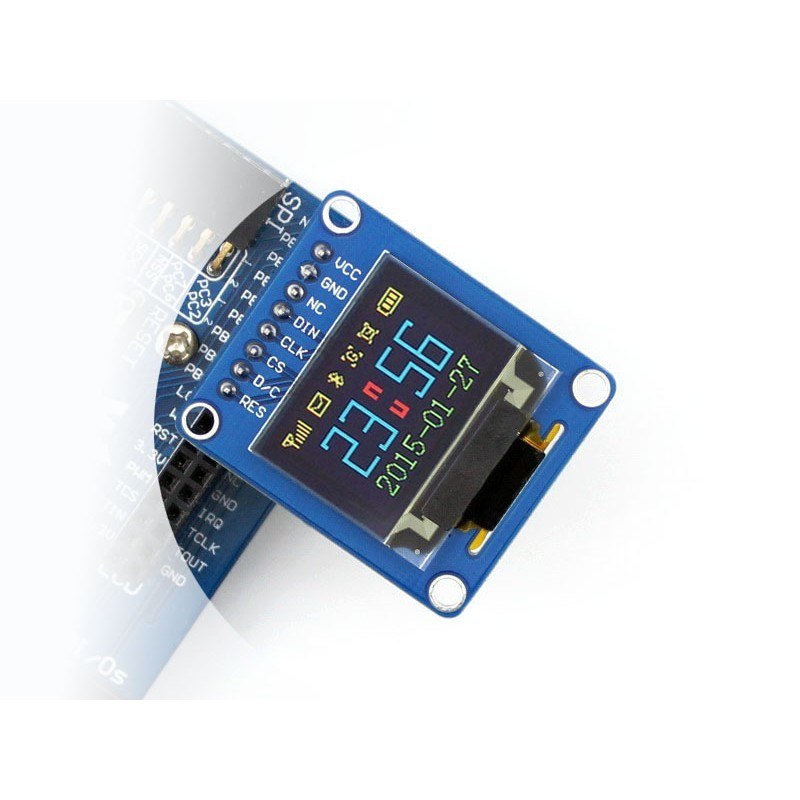

This is 0.95" size RGB OLED screen module. You can get high contrast displays woth no beck lights thanks to OLED technology. This module supports SPI communication interface.
Technical Features:
Sizes:

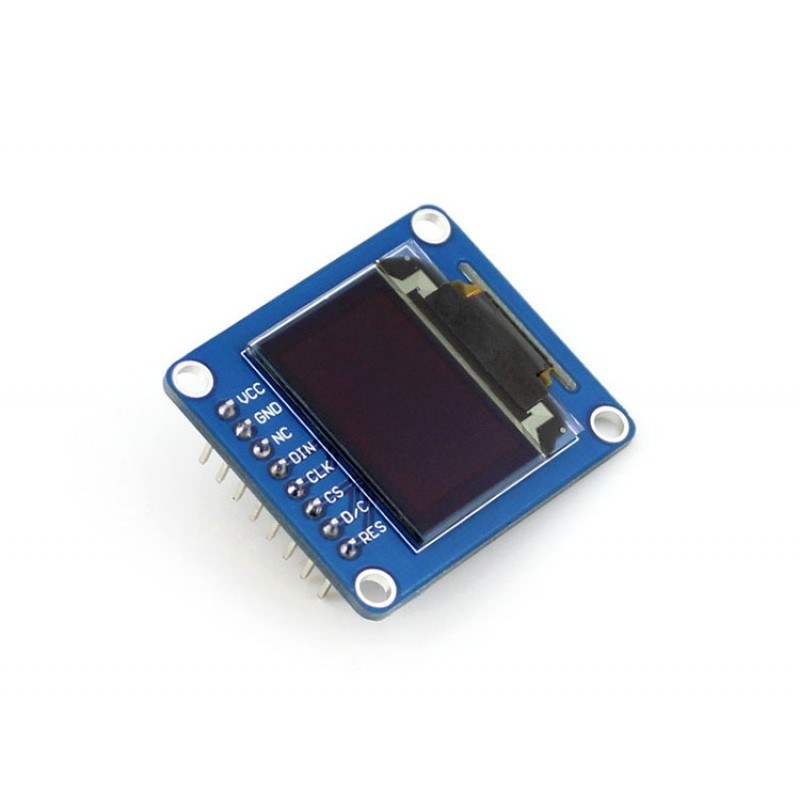

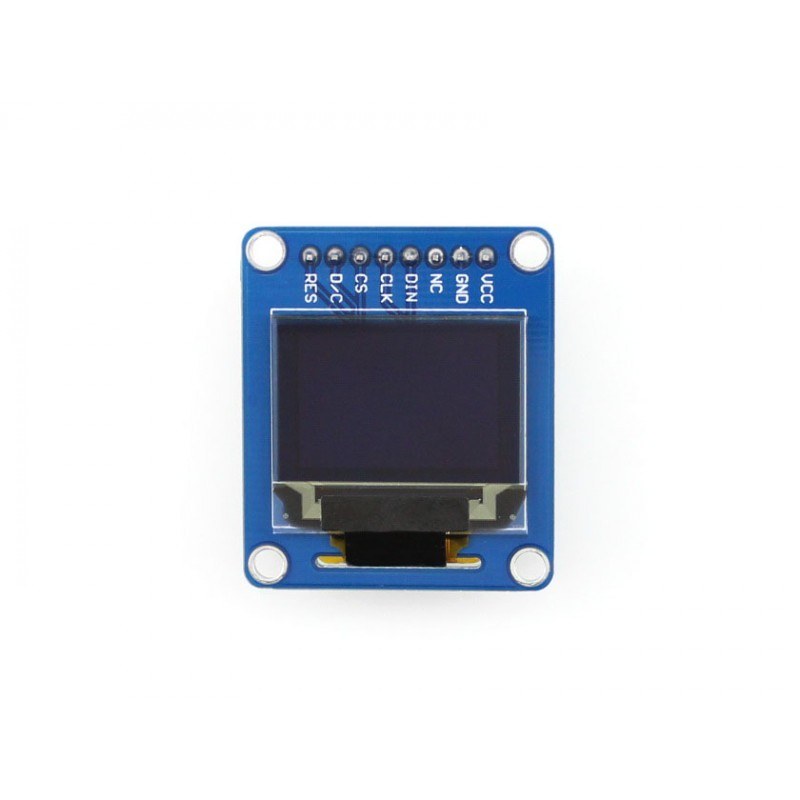

| PIN NO. | SYMBOL | DESCRIPTION |
|---|---|---|
| 1 | VCC | Power positive (3.3~5V power input) |
| 2 | GND | Ground |
| 3 | NC | NC |
| 4 | DIN | Data input |
| 5 | CLK | Clock signal input |
| 6 | CS | Chip selection, low active |
| 7 | D/C | Command signal, low level for command, high level for data |
| 8 | RES | Reset signal, low active |
Detailed information and example codes can be found on Wiki page.
