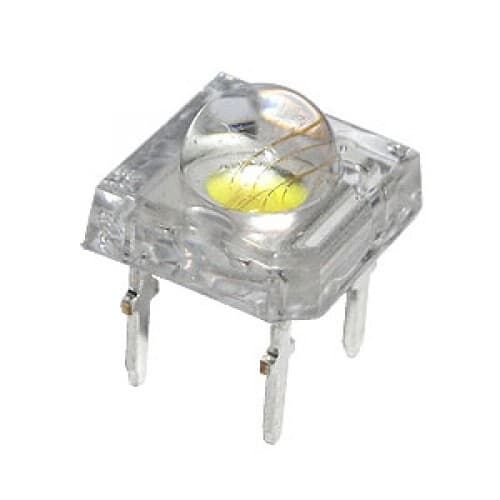

5mm Piranha 4 Pin Flux LED – Red

5mm Piranha 4 Pin Flux LED – Red

This led, which has 4 legs, has two "+" and two "-" poles. You can use these LEDs with a very wide angle, bright light and quality color accuracy in all your projects. These LEDs can be used in many circuits such as transceiver circuits.

5mm Piranha 4 Pin Flux LED Technical Specifications:

• Color: Red
• Working Voltage: 3.0V-3.4V
• Working Current: 20mA
• Operating Temperature: 30-60C
• Wavelength: 470nm
• Luminous Intensity: 1200mcd
• Soldering Temperature: 260C (5sec)
• Width: 7.62mm
• Length: 7.62mm
• Height: 9mm
