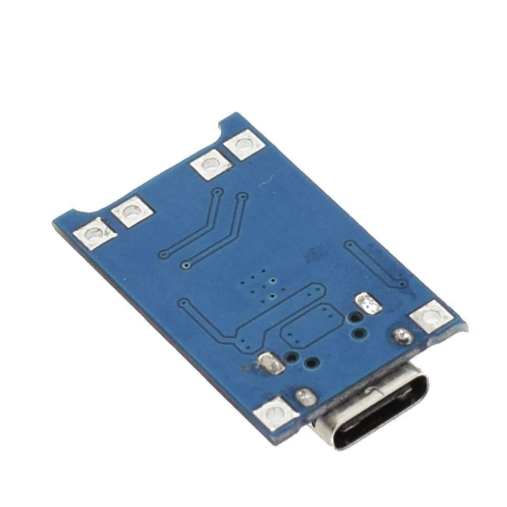

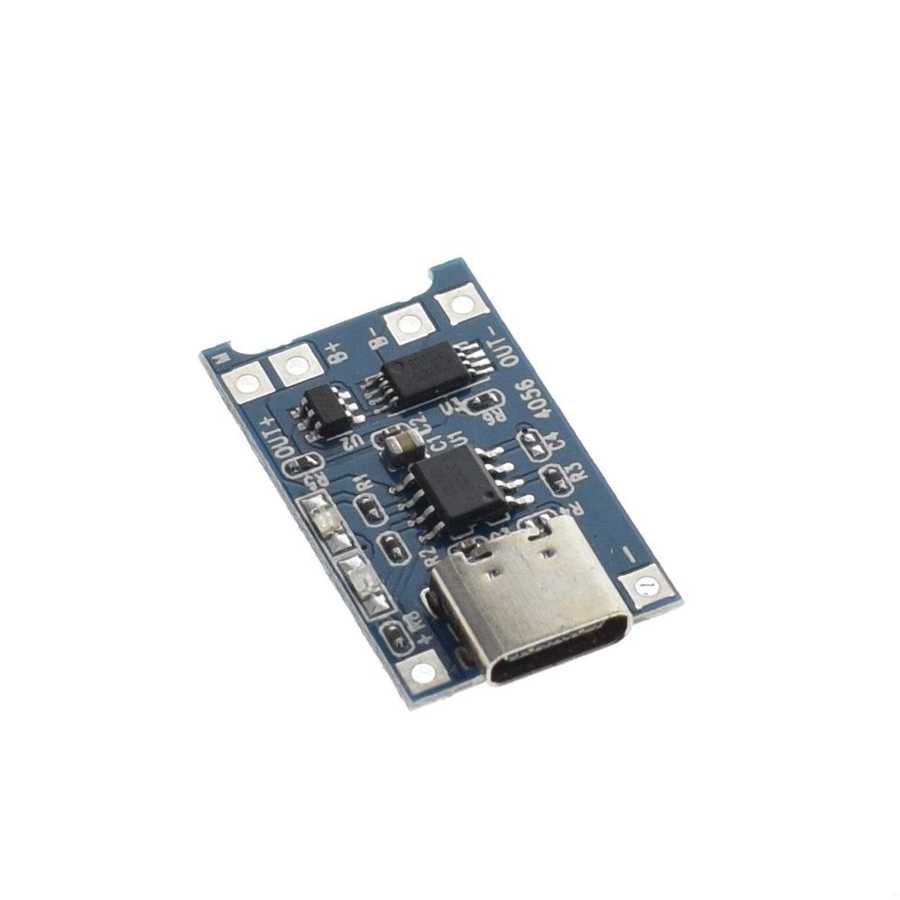

TP4056 Type C 1S 3.7V Lithium Charger

Module performance:

• The input voltage: 4.35-6 v (recommended voltage 5 v)
• Charge cut-off voltage: 4.2 V + / - 1%
• Maximum charging current output: 1000 ma
• The battery overcharge protection voltage: 4.28 V
• Battery overcharge lifting voltage: 4.00 V
• The battery discharge protection voltage: 3.0 V
• Battery discharge termination voltage: 3.2 V
• Battery: over-current protection current 3 a
• The board size: about 2.5 * 1.65 CM
• Light state: no load the light not bright, red light for recharging, is full of green light.
