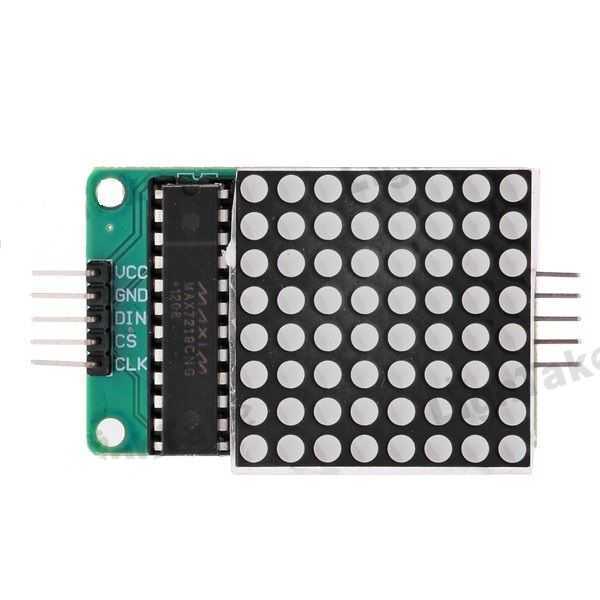

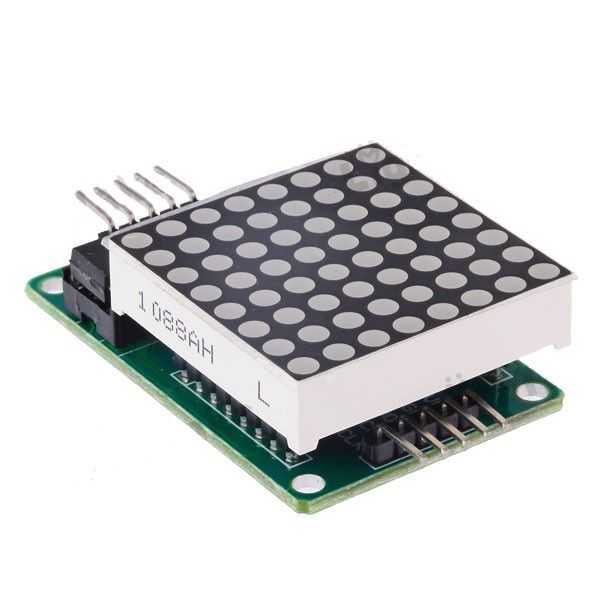

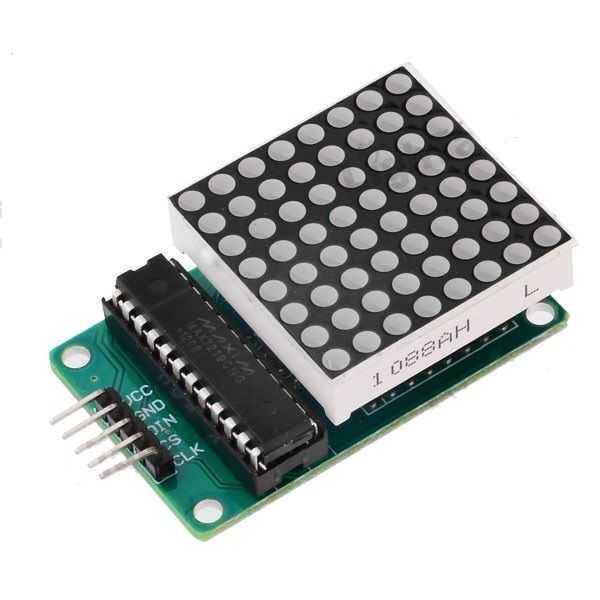

8x8 Red Dot Matrix Board

You can use this modul contains 4 8x8 LED matrix in your LED board or display projects. It is possible to drive this board via Arduino, pcDuino and other microcontollers. There is a MAX7219 common cathode driver IC. This IC drives the board via serial interface.

Features:

• Dimensions: 50 mm x 32 mm x 15 mm
• Operating voltage: 4.7 V - 5.3 V DC
• There are 3mm holes at the corners existing for screwing
• Possibility to consecutively add moduls with the header connections.
• Microcontroller based matrix modul with MAX7219 IC
• Operating current: 320 mA
• 8x8 common cathode red dot matrix

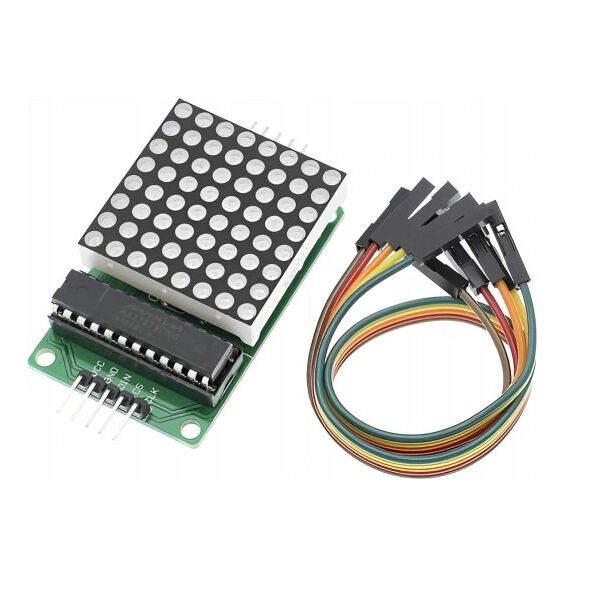

Kit includes: 8x8 matrix PCB, 5-pin female - female jumper cable.

Documents:

• Click here for example Arduino and pcDuino code.
• Click kere for datasheet.
