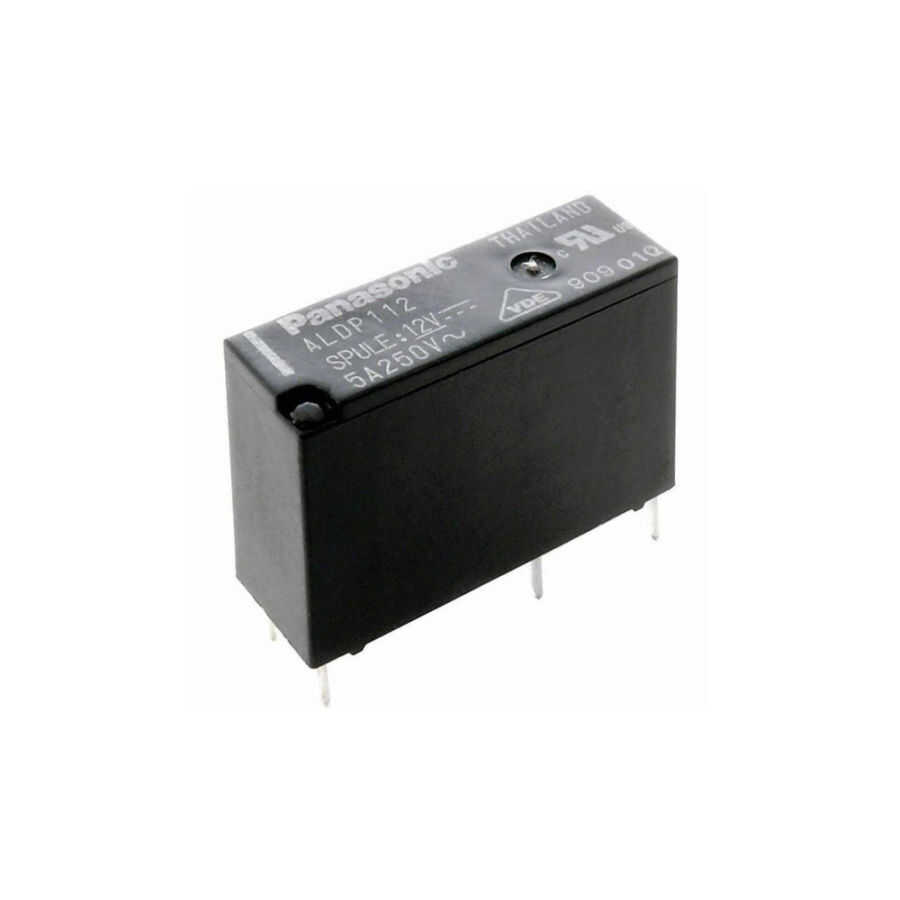

ALDP112W Panasonic Relay 5A 12V 4 Pin

ALDP112W Panasonic Relay 5A 12V 4 Pin

ALDP112W Panasonic Relay 5A 12V 4 Pin consists of two main parts, the relay being a mechanical switching unit that can be controlled by electrical methods, as well as a relay coil and contactors. The relay coil, on which current is flowing, creates a magnetic field and changes its position by pulling the contacts. Telecom applications, gas detector circuits, RF control applications, Infrared, small volume circuits, etc. It is one of the preferred circuit elements in studies.

ALDP112W Panasonic Relay 5A 12V 4 Pin Technical Specifications:

• Size: 20.50 mm x 7. 20 mm x 15. 30 mm
• Mounting Type: THT
• Coil Type: Non Latching
• Coil Voltage: 12VDC
• Coil Current: 16.7mA
• Contact Current: 5A
• Contact Voltage: 277VAC / 30VDC
• Coil Resistance: 720 Ohms
• Coil Power: 200mW
• Number of Pins: 4 Pins
• Operating Temperature: -40°C ~ +85°C
