XL4016 DC-DC Adjustable Digital Voltage Step-Down Regulator Module

XL4016 DC-DC Adjustable Digital Voltage Step-Down Regulator Module

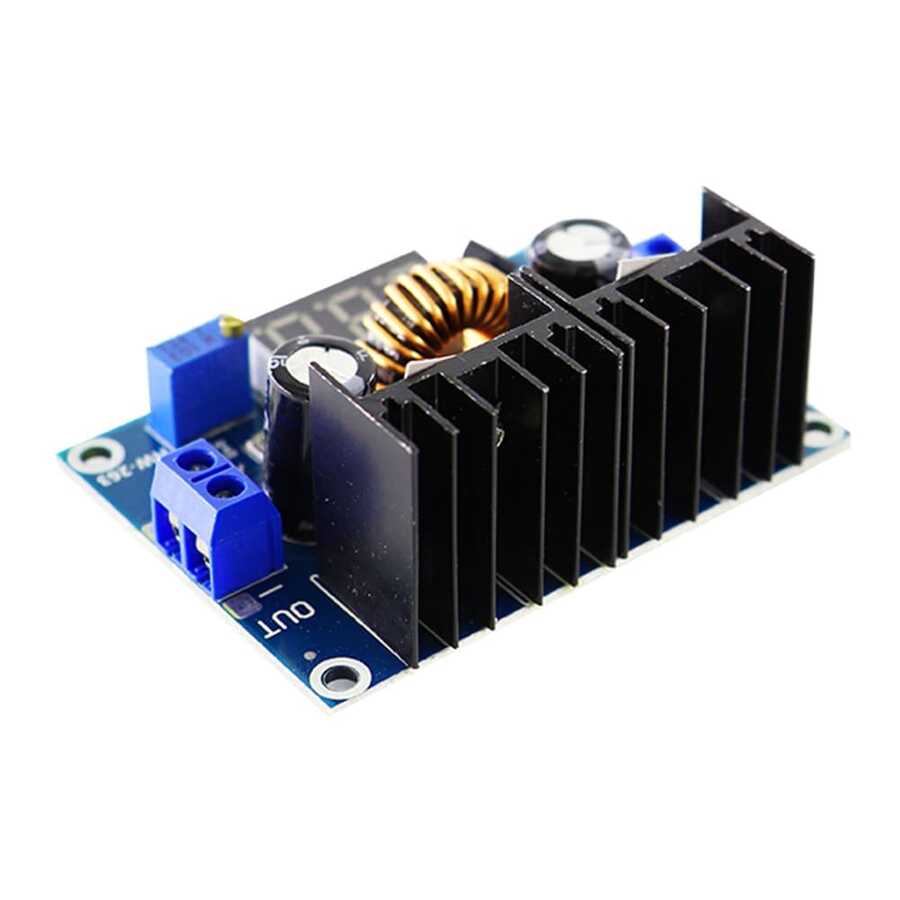

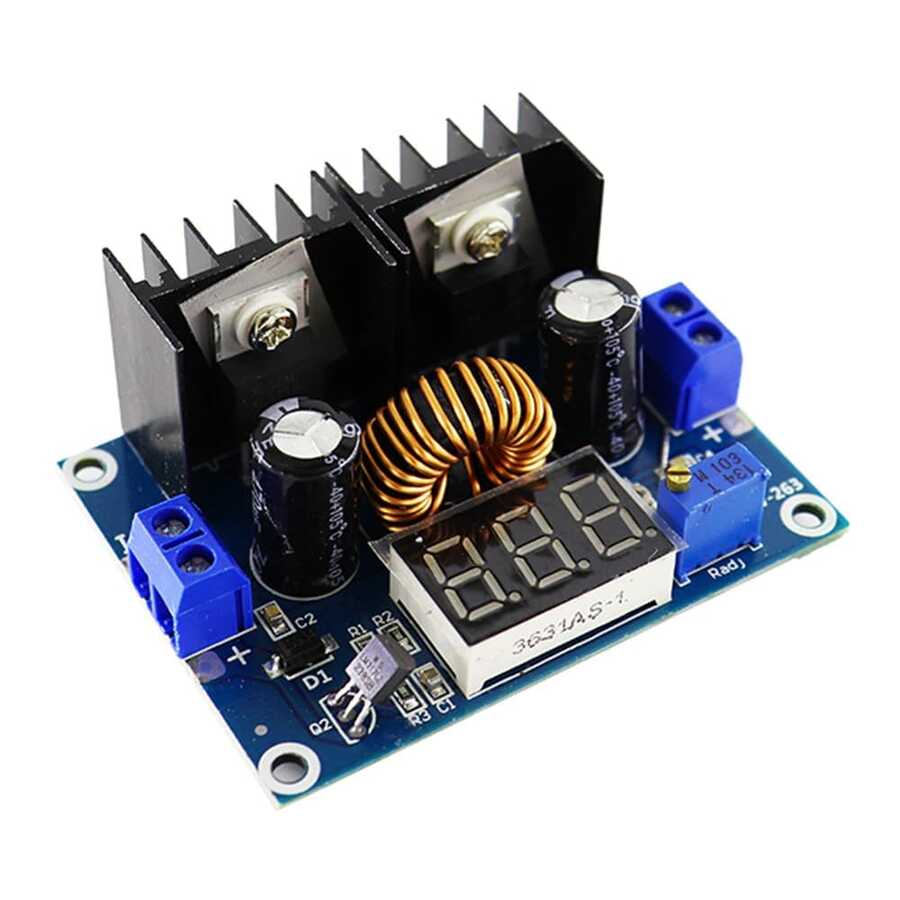

The XL4016 DC-DC Adjustable Digital Step-Down Regulator Module is a step-down module with high efficiency and low ripple. It is a module that can gradually adjust the input voltage and output voltage and displays it on its digital screen. The input voltage is 4-40V/DC and the output voltage is obtained by reducing the voltage between 1.25V-36V thanks to the trimpot on the board. Also, this product has overheat protection and short circuit protection feature.

Click to View All Voltage Reducer Models.

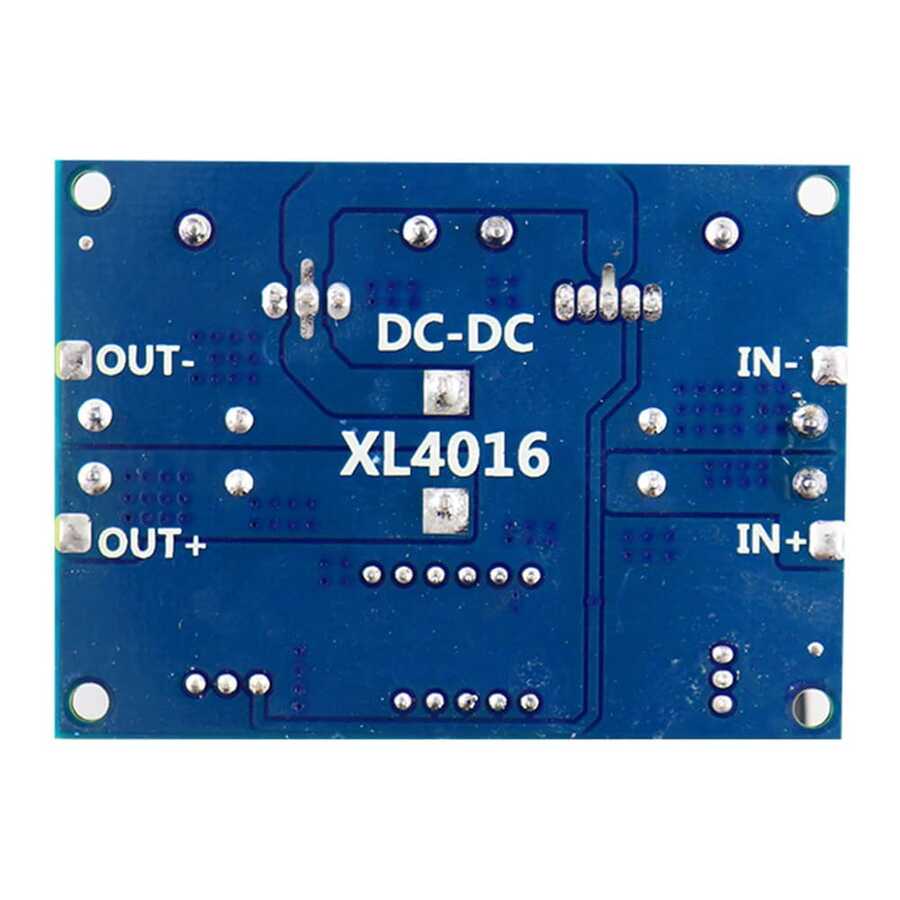

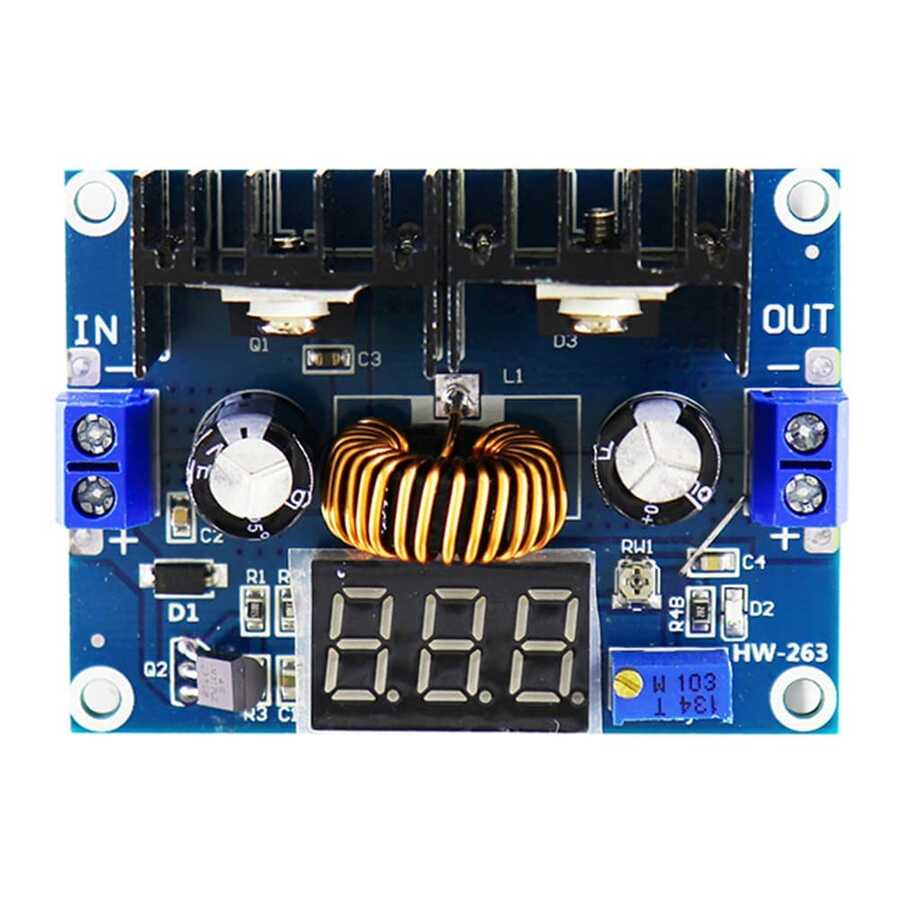

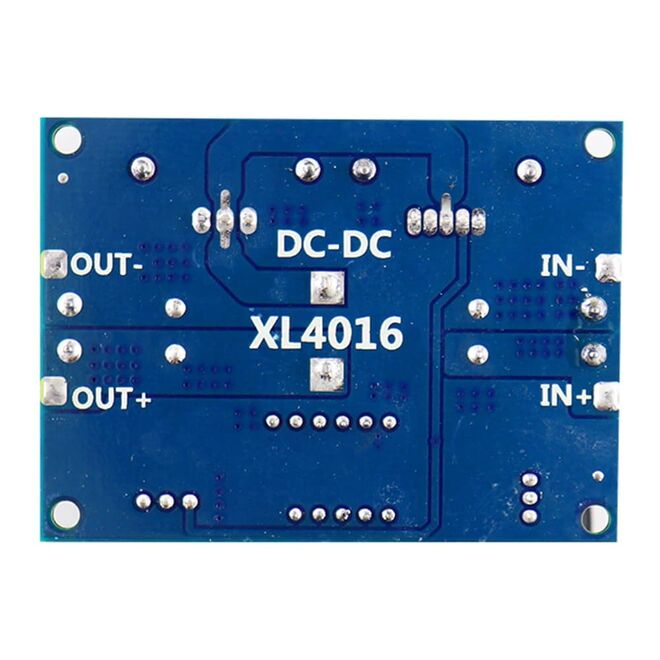

In applications to be made with this product, the input voltage must always be higher than the output voltage. The digital led display on the screen shows the output voltage. “IN+” and “IN-” are voltage input pins while “OUT+” and “OUT-” are voltage output pins. “IN+” means positive supply input, “IN-” means ground, “OUT+” means positive output voltage and “OUT-” means ground output on the board. There is a blue trimpot on the module. You can adjust the voltage value with this trimpot.

XL4016 DC-DC Adjustable Digital Step-Down Regulator Technical Specifications:

• Model: XL4016
• Input Voltage: 4-40V/DC
• Output Voltage: 1.25-36V/DC
• Current: 8A (Max.)
• Output Power: 200W
• Working Frequency: 180KHz
• Size Range: 4-40V/DC
• Conversion Efficiency: Up to 96%
• Voltmeter Error Accuracy: ±0.05V
• Input Reverse Polarity Protection: YES
• Display: Digital - Color
• Width: 65mm
• Length: 48mm

• Height: 28mmm

XL4016 DC-DC Adjustable Digital Step-Down Regulator Package Contents:

• 1 x XL4016 DC-DC Adjustable Digital Voltage Step-Down Regulator
