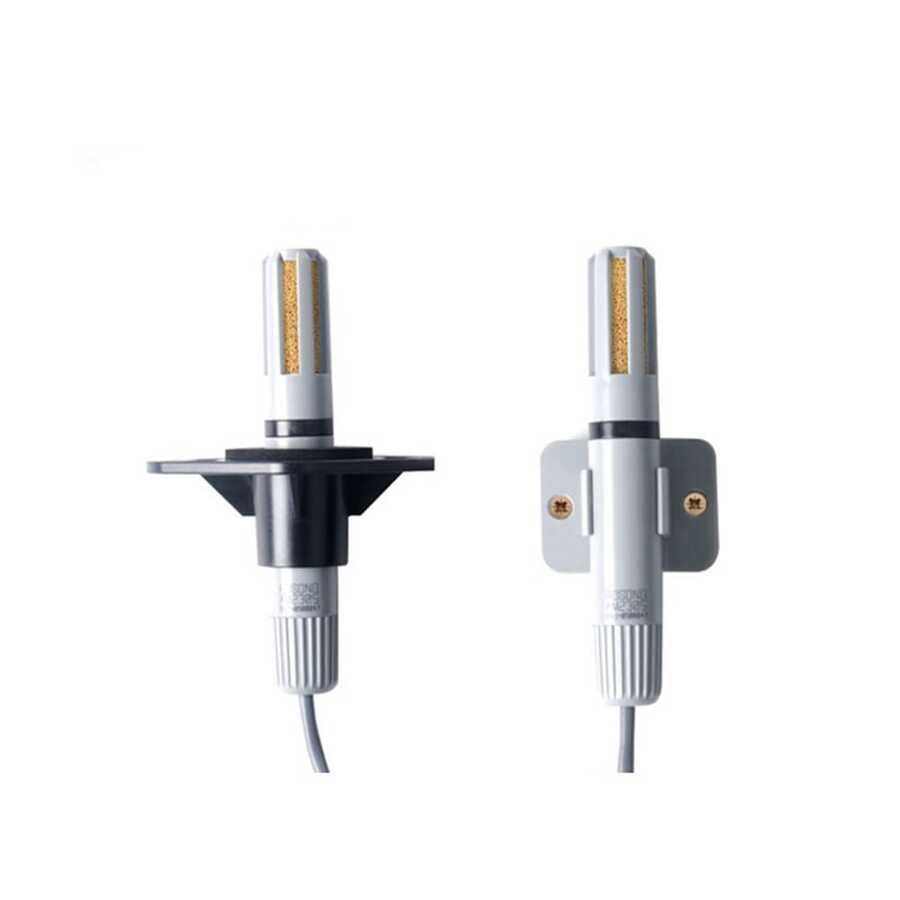

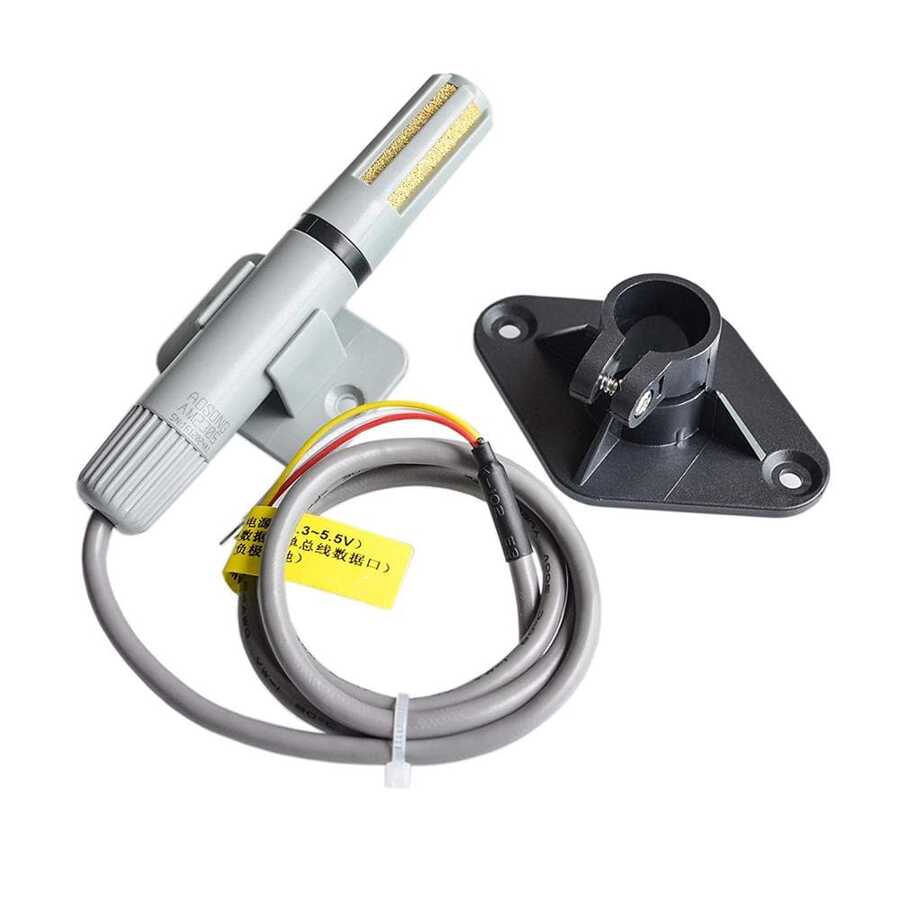

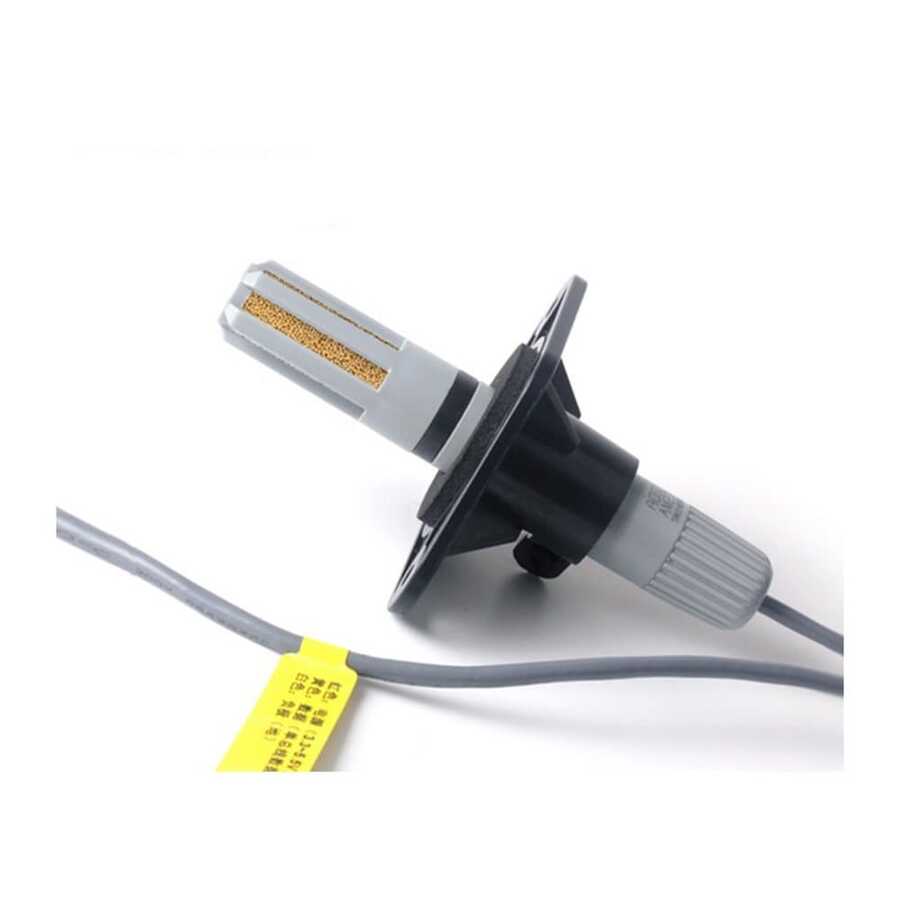

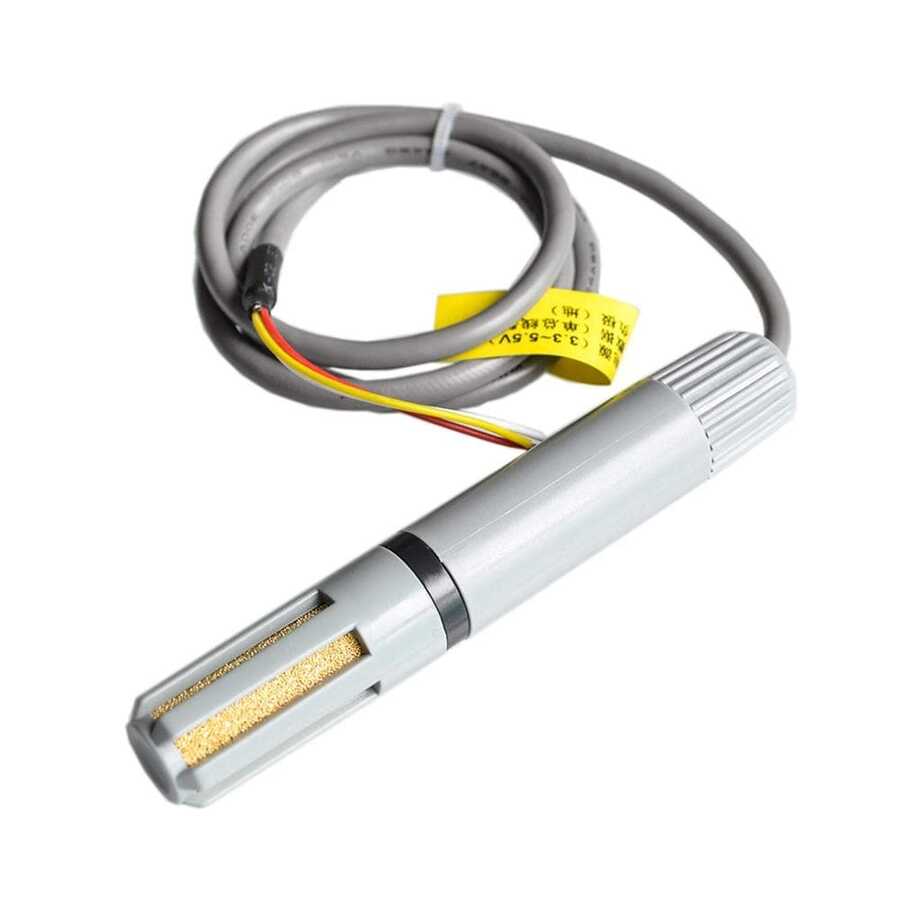

AM2305 Temperature and Humidity Sensor Shell Duct Sensor Shell with 70cm Cable

AM2305 Temperature and Humidity Sensor Shell Duct Sensor Shell with 70cm Cable

The AM2305 digital temperature and humidity sensor is a premium quality humidity and temperature sensor. It is used to measure and report the humidity and air temperature of the surrounding environment. AM2305 digital temperature and humidity sensor is a temperature and humidity combined sensor with digital signal output calibrated. The sensor includes a capacitive sensor wet components and a DS18B20 temperature measuring device and is connected with a high performance 8-bit microcontroller. Each AM2305 sensor is a highly accurate humidity calibration chamber for calibration. Calibration coefficients stored in the form of a program in the OTP memory, internal sensor detection signal processing to call these calibration coefficients. Single-cable serial interface, system integration becomes simpler and faster. The ultra-small size, low power consumption, signal transmission distance of 20 meters or more make it the best choice in a variety of applications, even the most demanding applications.

AM2305 Temperature and Humidity Sensor Usage Areas:

• Environmental Monitoring
• Ventilator/Respirator
• Anesthesia Machine
• Spraying Machine

AM2305 Temperature and Humidity Sensor Advantages:

• Relative humidity and temperature provide calibration of all digital outputs.
• It does not need additional components.
• It provides signal transmission for long distances.
• It provides 4-pin installation and is fully interchangeable.

AM2305 Temperature and Humidity Sensor Technical Specifications:

• Supply Voltage: 3.5-5.5V/DC
• It provides low power consumption.
• It provides long distance signal transmission.
• Measuring Range: 0-99.9% RH
• Temperature Range: -40 ~ 80°C
• Measurement Accuracy: ± 2% RH
• Temperature Measurement Accuracy: +_0.3c
• Interface: Digital
• Technology: Capacitive
• Power loss: Average 300uA
• Response Time: 5S

With which library can this sensor be used with ESP32?

Adafruit_AM2315.h is the library for this sensor.

What is the purpose of the temperature and humidity sensor?

Temperature and humidity sensors are among the most commonly used environmental sensors. Humidity sensors are also sometimes called hygrometers. These devices are used to provide the actual humidity situation in the air at any point or any place.

AM2305 Temperature and Humidity Sensor Dimensions:

AM2305 Temperature and Humidity Sensor Package Contents:

• 1 x AM2305 Temperature and Humidity Sensor Shell Duct Sensor Shell with 70cm Cable
