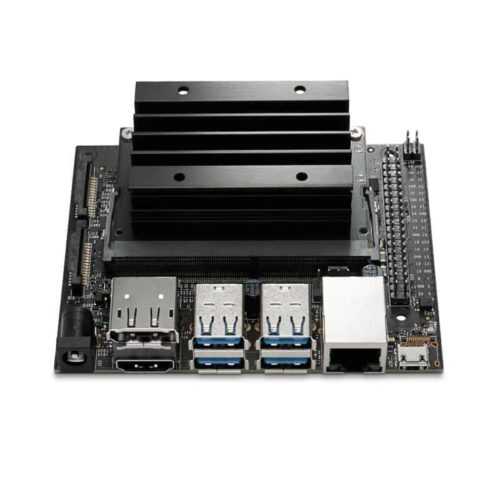

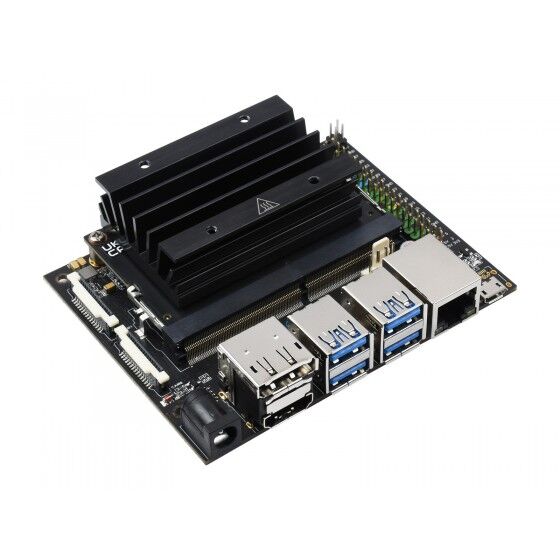

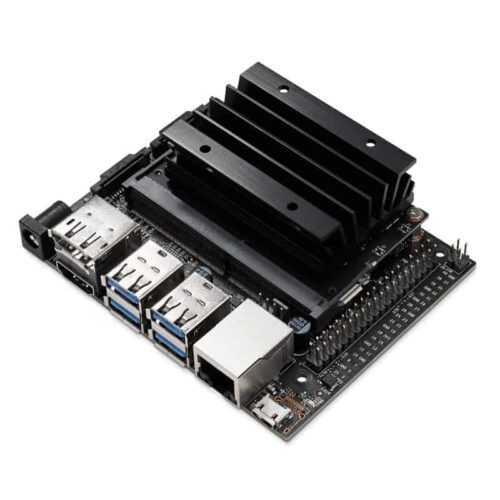

JETSON-NANO-DEV-KIT-C-EU ICTest Board

JETSON-NANO-DEV-KIT-C-EU İC Test Board

JETSON-NANO-DEV-KIT-C-EU IC Test Board has a quad-core 64-bit ARM CPU processor. It offers 472 GFLOPS to run modern AI algorithms fast, along with a 128-core integrated NVIDIA GPU and 4GB of LPDDR4 memory. It has a powerful artificial intelligence computer that allows multiple neural networks to be run in parallel for applications such as image classification, object detection, segmentation and speech. It also has an IPS display, which can configure the hardware resolution with software. Equipped with a 3.5mm audio jack speaker connector, this product supports HDMI audio output. It supports popular mini PCs like Raspberry Pi, Jetson Nano, BB Black, Banana Pi as well as general desktop computers and popular game consoles like Microsoft XBOX360, Sony PS4 and Nintendo Switch.

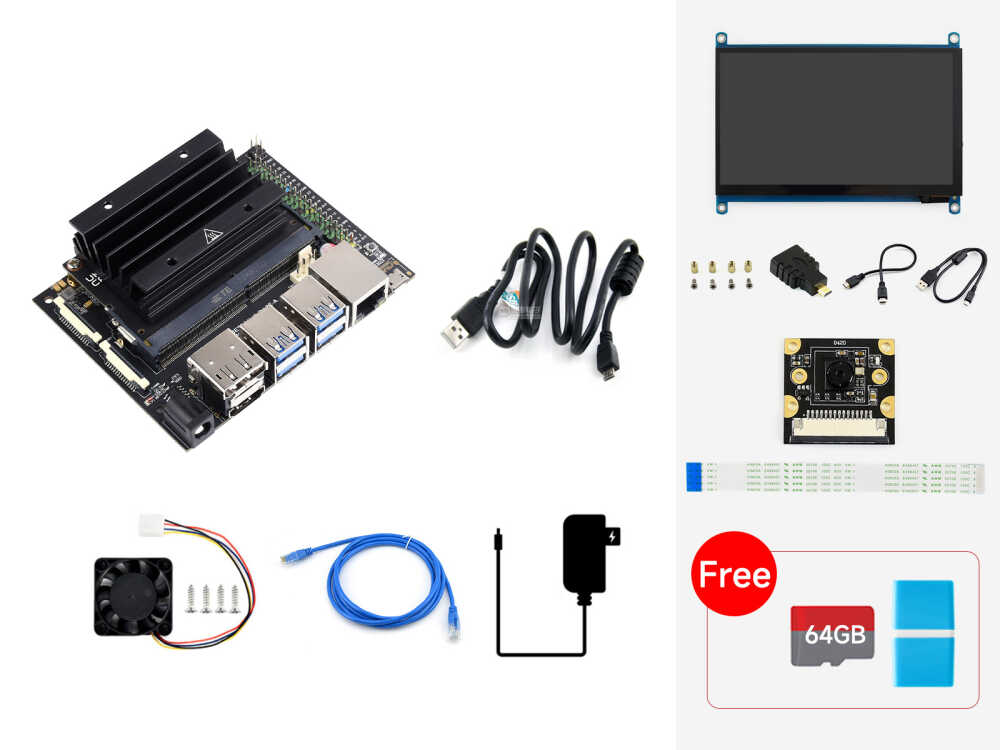

IMX219-77 Camera Features:

• Dimension: 25 x 24 mm
• Supports CM3/3+/4, Jetson Nano, Jetson Xavier NX
• 8 Megapixels
• Sensor: Sony IMX219
• Resolution: 1024 x 600
• Lens specifications:CMOS size: 1/4 inch / Aperture (F): 2.0 / Focal Length: 2.85 mm / Angle of View (diagonal): 79.3 degrees / Distortion: < 1% / Lens dimensions: 6.5 mm × 6.5mm
• 4 Screw Holes
• Provides 3.3V power output.

JETSON-NANO-DEV-KIT-C-EU IC Test Board Technical Specifications:

• GPU: 128 core Maxwell
• Processor: Quad-core ARM A57 @ 1.43 GHz
• Memory: 4GB 64-bit LPDDR4 25.6GB/s
• Storage: 64GB Class10 Micro SD card
• Expansion Interfaces: GPIO, I2C, I2S, SPI, UART
• USB Connection: 4x USB 3.0, USB 2.0 Micro-B
• Display: HDMI and DP
• Camera: 2x MIPI CSI-2 D'PHY Strip
• Video Encoder: 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
• Video Decoder: 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265)
• (H.264/H.265)Connectivity: Gigabit Ethernet, M.2 Key E expansion connector
