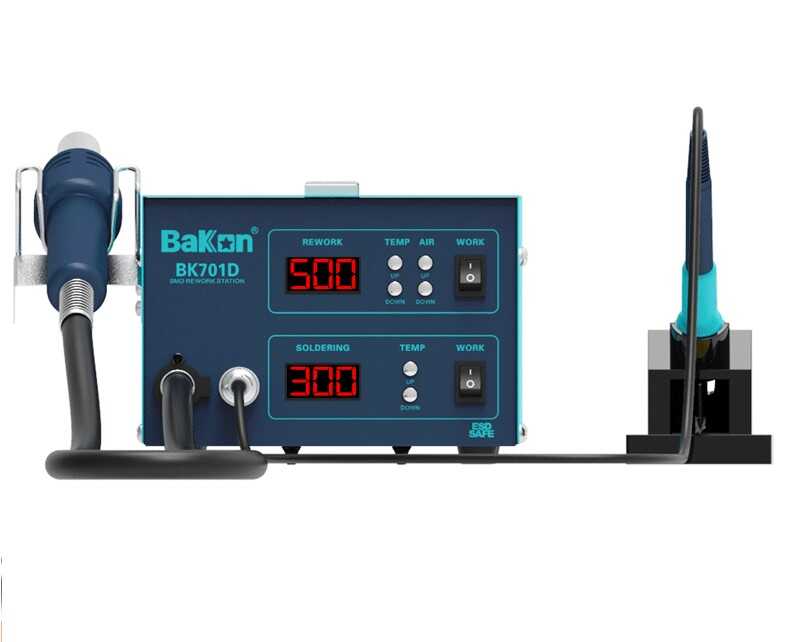

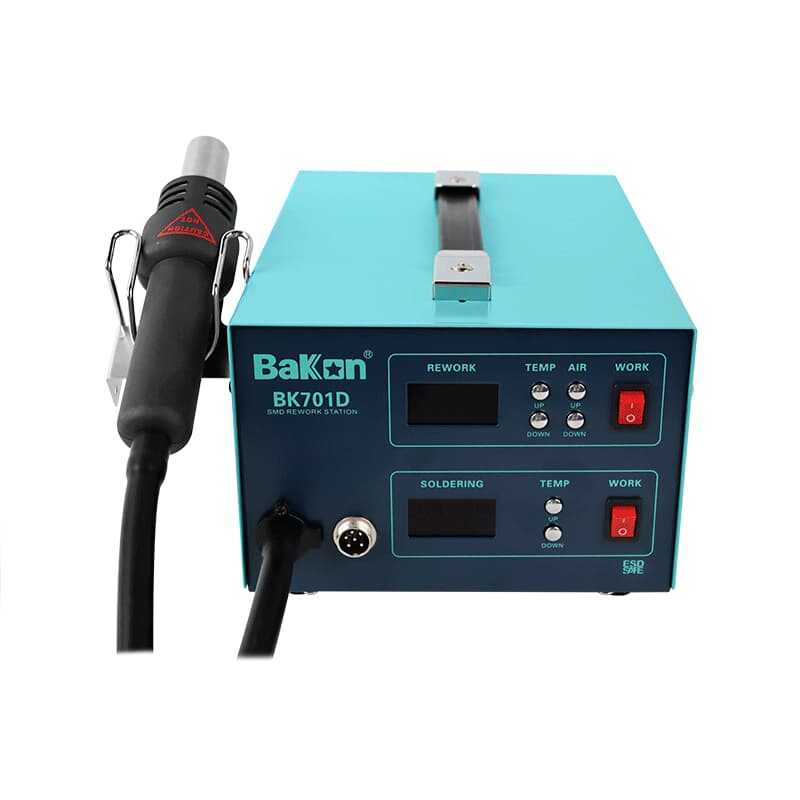

Bakon BK701D Intelligent 2 in 1 Soldering Iron - Soldering Station

Bakon BK701D Intelligent 2 in 1 Soldering Iron - Soldering Station

Bakon BK701D Intelligent 2 in 1 Soldering Iron is a long-lasting soldering station with high temperature sensitivity. It allows you to benefit from the advantages of the diaphragm pump in the most efficient way. Thermocouple sensors with high sensitivity are used in the station. In this way, it helps you to get the best results in your sensitive electronic works. Thanks to the ESD system that prevents electrostatic damage, it allows you to solder safely. CHIP, QFB, SOP, PLCC, BGA, SMD, ETC etc. It can be used for disassembly and soldering of electronic components, as well as paint drying, adhesive removal, etc. It is also suitable for operations. It has 2 separate digital displays for soldering and blowing station control. It allows you to do your circuit board repair work in the shortest and healthiest way. It is a long-lasting and comfortable product that you can use in scientific study laboratories and universities.

You can access the user manual by clicking here. Be sure to read before use.

Package Included:

• 1 x BK701 Main Unit
• 1 x Hot Air Blowing Handle

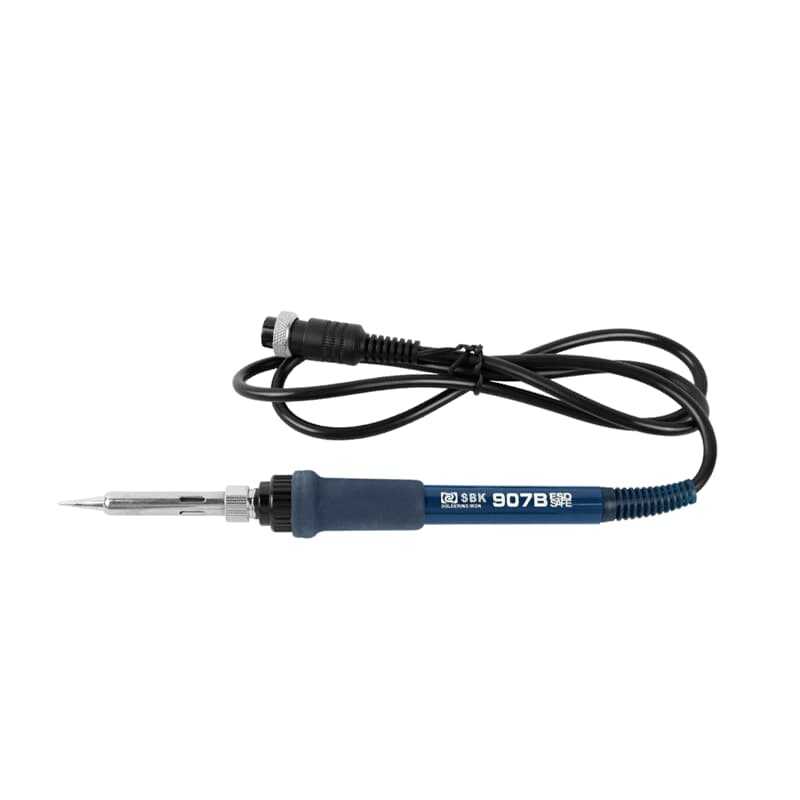

• 1 x 907B Soldering Arm

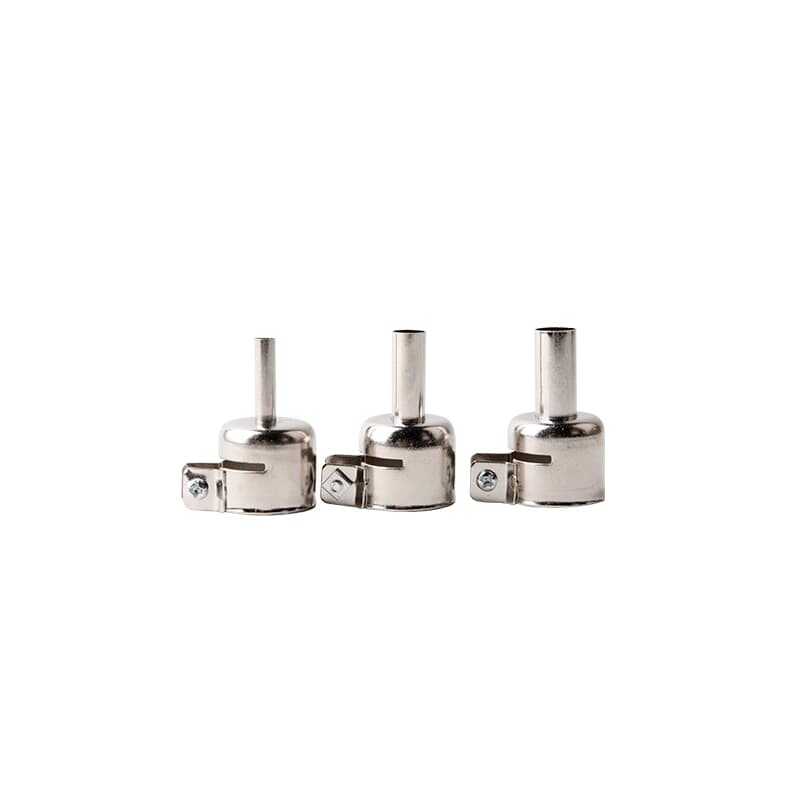

• 3 x Nozzles

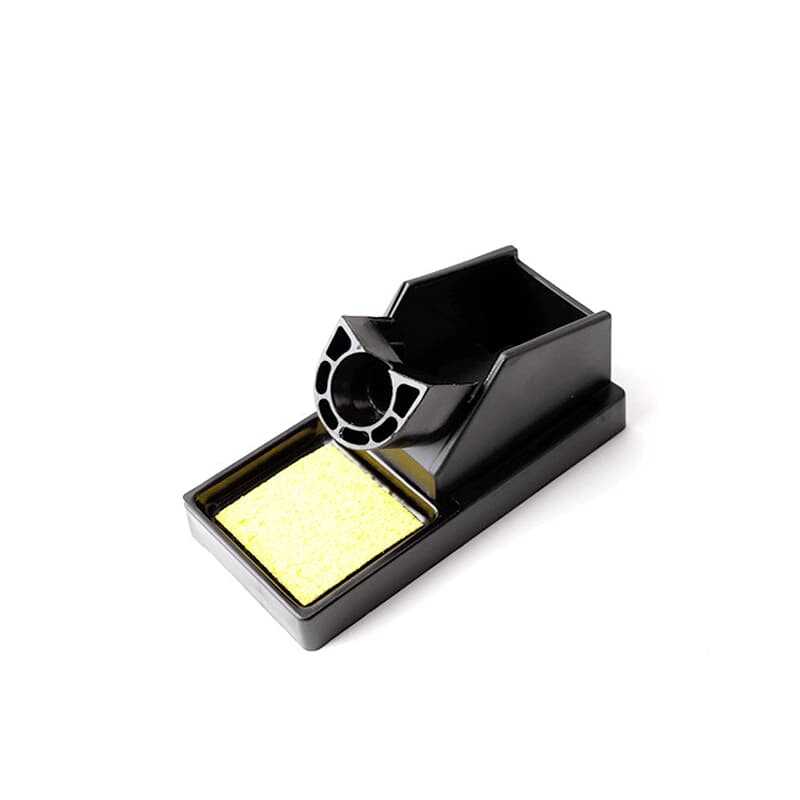

• 1 x BK506 Soldering Stand
• 1 x 220V Power Cord
• 1 x User Manual
• 1 x Warranty Certificate
• 1 x Technical Service Form

General Specifications:

• Power Consumption: 700W
• Size: L:160 x W: 141 x H: 95mm
• Environmental Operating Temperature: 0~40°C
• Storage Ambient Temperature: 20-80°C

Hot Air Station Technical Specifications:

• Airflow Type: Diaphragm Pump Compressor
• Temperature Range: 100-500°C
• Temperature Stability: ± 1 °C
• Display Type: LED Digital Display
• Arm Cable Length: 100cm

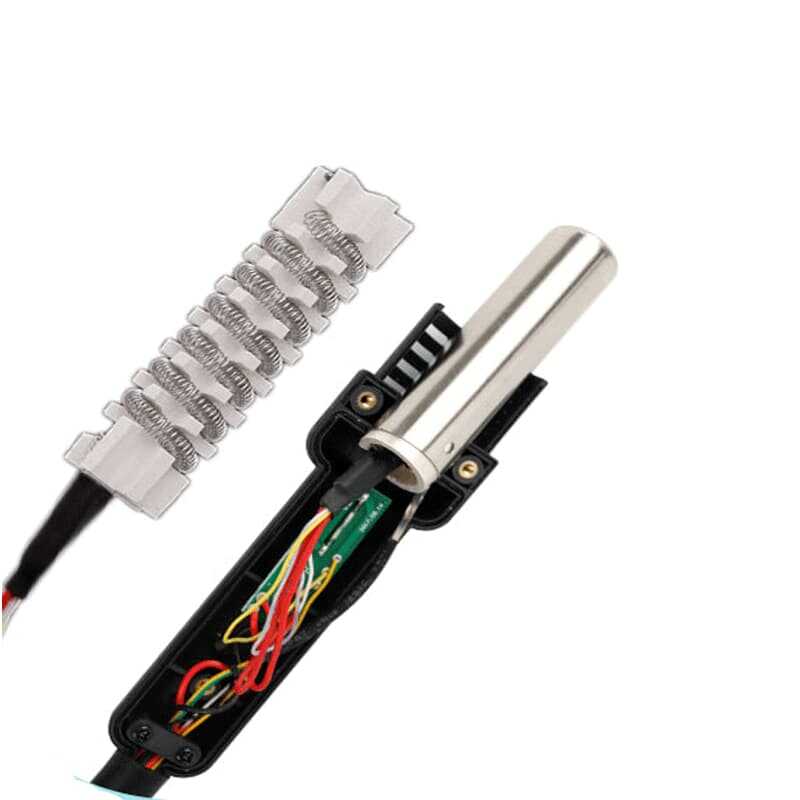

• Blowing Arm Heater: 90Ω

Soldering Soldering Station Technical Specifications:

• Temperature Range: 100-480 °C
• Power Consumption: 75W ± 10%
• Temperature Stability: ± 1 °C
• Grounding Voltage: 2mV
• Ground Impedance: 2ohm
• Arm Cable Length: 100cm
• Arm Warmer: 15Ω

Document / Useful Links:

• User guide
• How to Make the Best Solder? Soldering Techniques - Video
