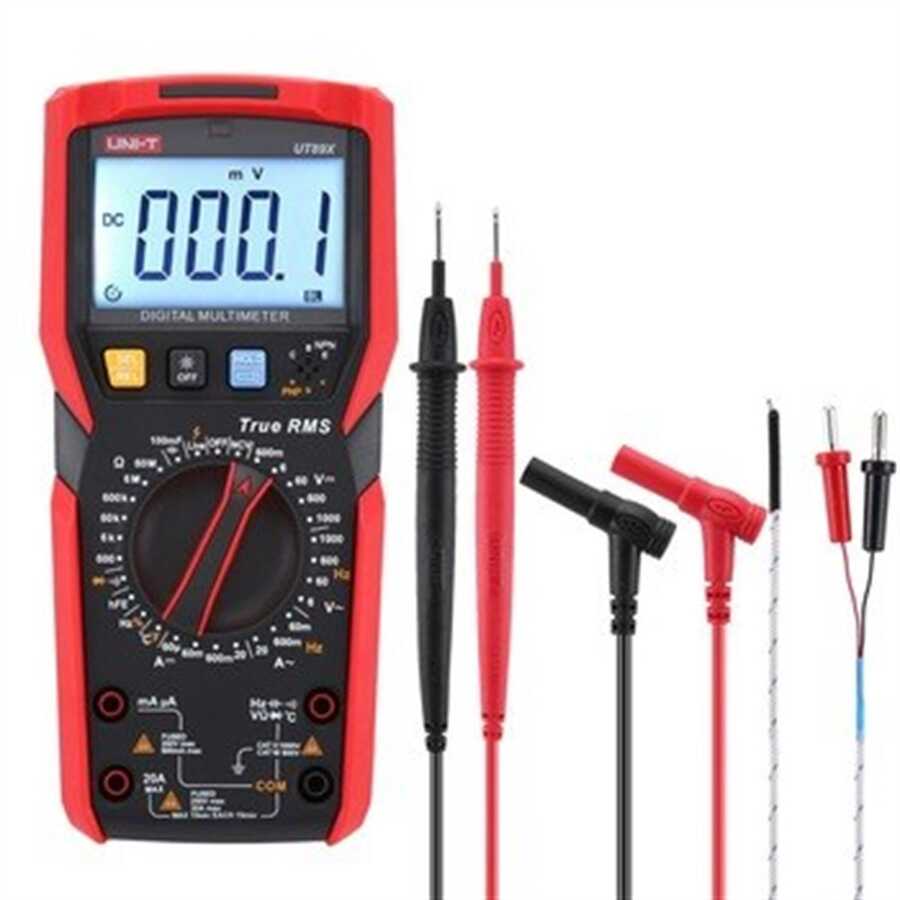

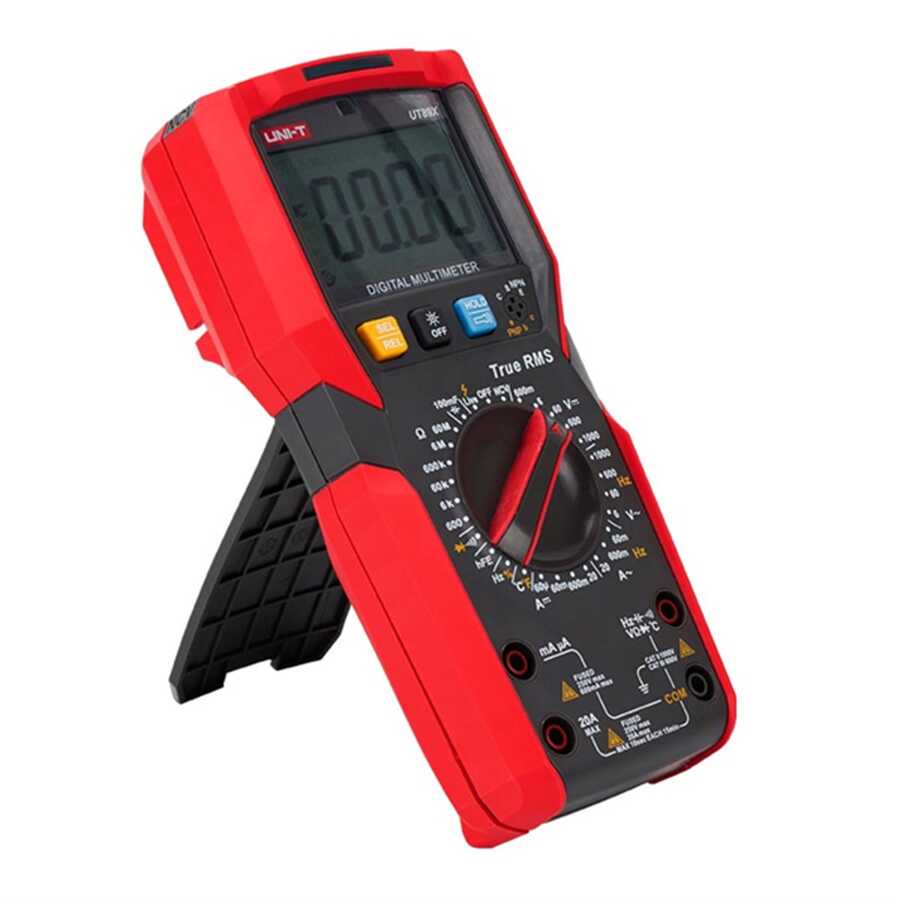

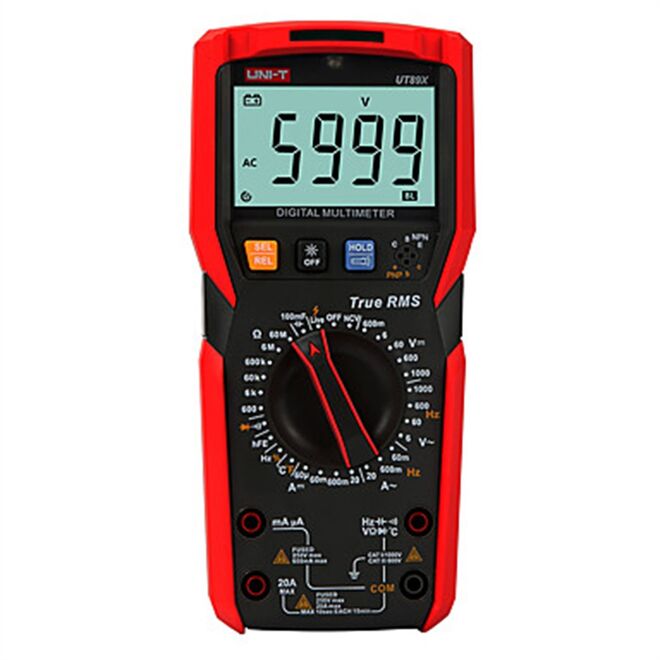

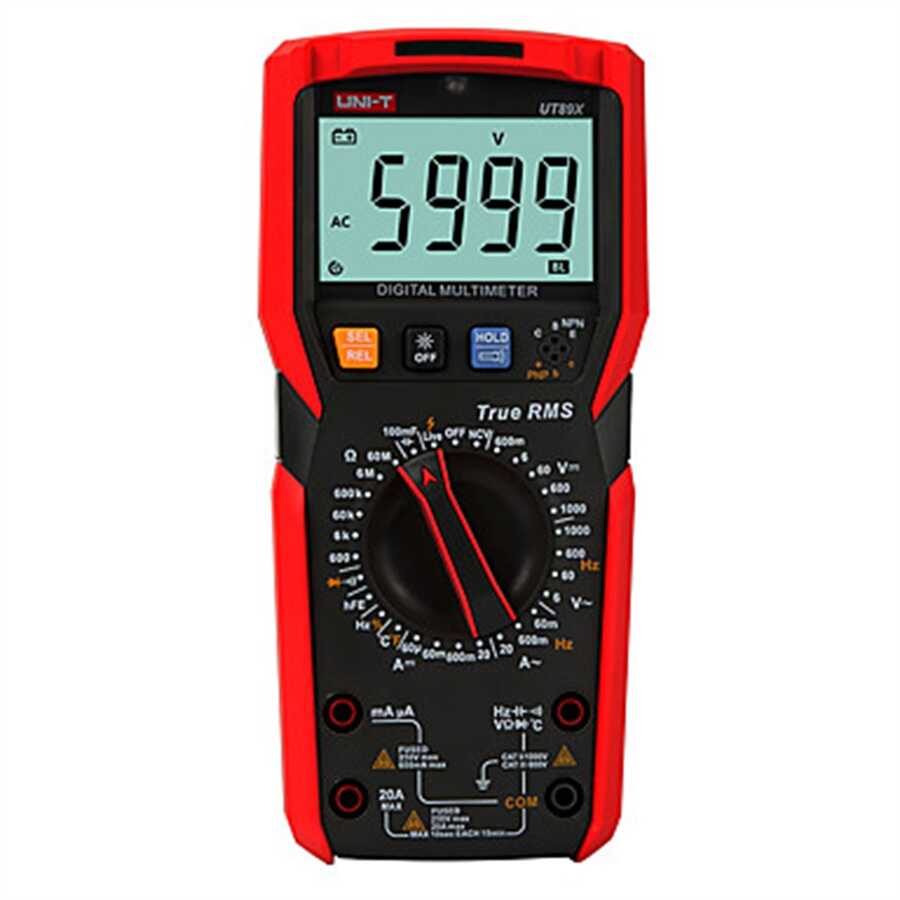

The UT89X is a 3 5/6 bit digital multimeter with RMS sinus wave. It has AC/DC measurement up to 1000V 20A maximum. With NCV, it can quickly detect all wires with electric current. You can also perform temperature measurement with the UT89X. You can also use it in dark environments thanks to its flashlight and automatic LCD light.
|
Specifications |
Range |
UT89X |
|
DC voltage (V) |
600mV/6V/60V/600V/1000V |
±(0.5%+2) |
|
AC voltage (V) |
6V/60V/600V/1000V |
±(0.8%+5) |
|
DC current (A) |
60μA/6mA/60mA/600mA/20A |
±(0.8%+8) |
|
AC current (A) |
60mA/600mA/20A |
±(1%+11) |
|
Resistance (Ω) |
600Ω/6kΩ/60kΩ/ |
±(0.8%+3) |
|
Capacitance (F) |
6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF/100mF |
±(2.5%+20) |
|
Frequency (Hz) |
9.999Hz/9.999MHz |
±(0.1%+4) |
|
Duty cycle |
0.1%~99.9% |
±(2%+5) |
|
Features |
||
|
Display count |
|
6000 |
|
Sampling rate |
|
3 times/s |
|
True RMS |
|
√ |
|
AC voltage frequency response |
|
45~1000Hz |
|
AC current frequency response |
|
45~1000Hz |
|
LED test |
|
√ |
|
Audible/visual alarm |
V/A/Cap/Diode/hFE/NCV/Live (UT89X)/LED (UT89XD) |
|
|
Diode/Continuity test |
|
√ |
|
Transistor hFE |
|
√ |
|
Dual range NCV test |
|
√ |
|
Auto power off |
|
√ |
|
Low battery indication |
|
√ |
|
Data hold |
|
√ |
|
Function selection |
SELECT |
√ |
|
Flashlight |
|
√ |
|
Auto backlight |
|
√ |
|
General Characteristics |
||
|
Power |
1.5V battery (R03) x 4 |
|
|
Display |
61mm x 36mm |
|
|
Product color |
Red and grey |
|
|
Product net weight |
345g |
|
|
Product size |
189mm x 89mm x 53mm |
|
|
Standard accessories |
Batteries, test lead, k-type temperature probe (UT89X) |
|
