BMP388 Digital Pressure Sensor (Breakout)

BMP388 Digital Pressure Sensor (Breakout)

BMP388 Digital Pressure Sensor,It is the new version of Breakout with pressure and temperature measurements. Compared to Arduino code editing and later products, it offers lower power consumption, small size, high speed and consumption rate. Barometric sensors are generally a product used for you to use barometric pressure and temperature. However, they can also measure coercive and relative floor height, where they have a certain relationship between altitude and barometric pressure. In addition, the product is suitable for accurate altitude tracking measurements, especially for drone applications.

BMP388 Dijital Basınç Sensörü Features;

• Operating Voltage: 3.3V / 5.5V
• Working Current: 0.5mA
• Measuring Range: 300-1250 hPa
• Relative Pressure Accuracy: ±0.08 hPa（±0.66m @700-900hPa,25℃-40℃）
• Absolute Pressure Accuracy: ±0.5 hPa（0℃-65℃@300-1100hPa）
• Offset Temperature Coefficient: ±0.75 Pa/K（-20℃-65℃@700-1100hPa）
• Absolute Temperature Accuracy: ±0.5℃（@0℃-65℃）

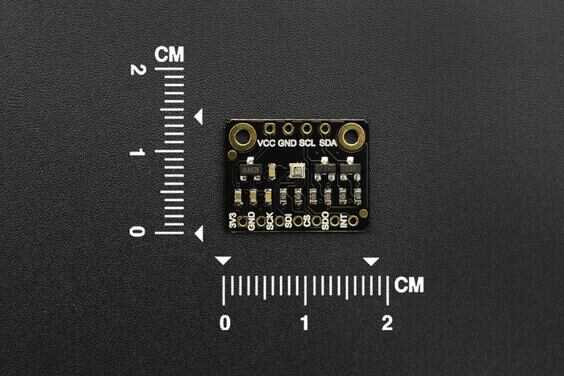

• Outline Dimension: 22 x 30 mm
• Mounting Hole Position: 15mm
• Operating Temperature: -40℃ ~ 80℃
