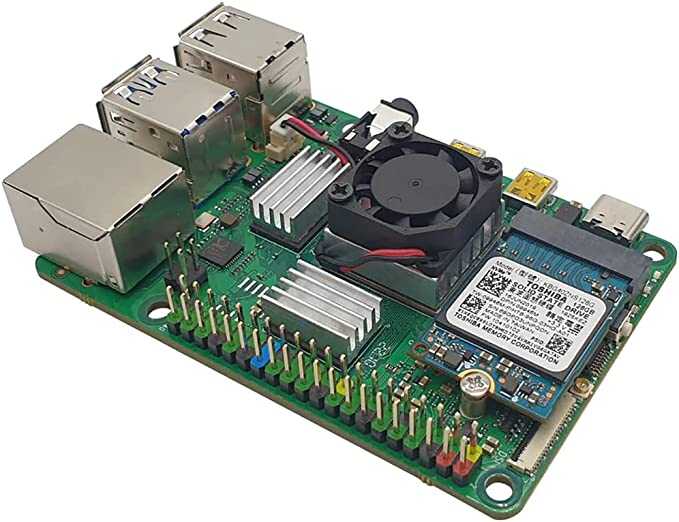

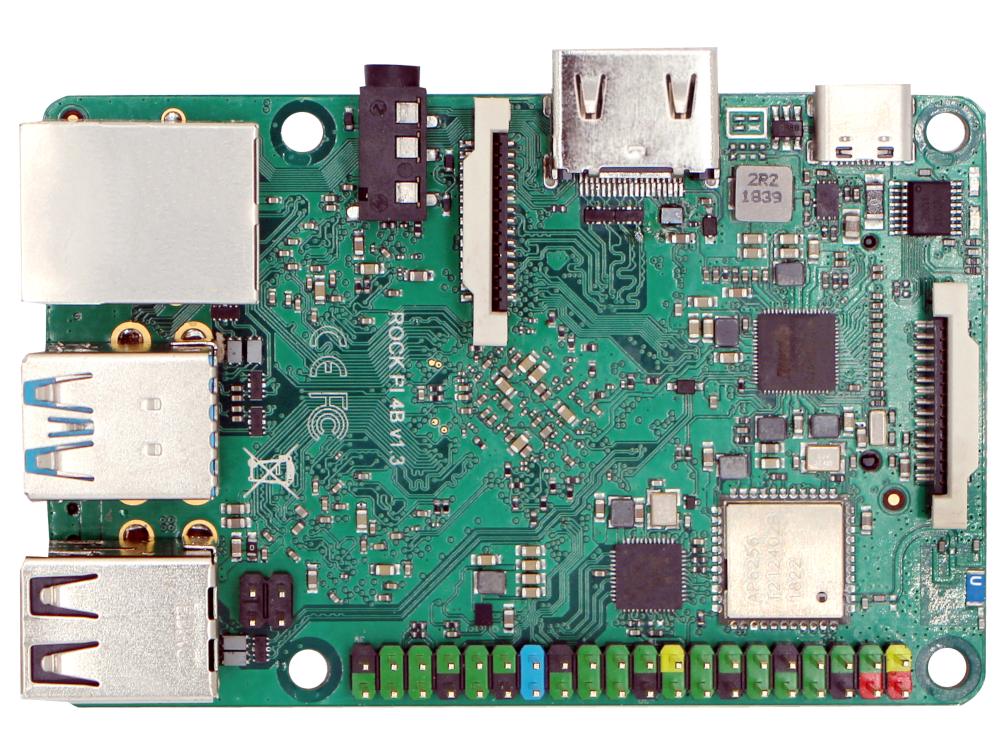

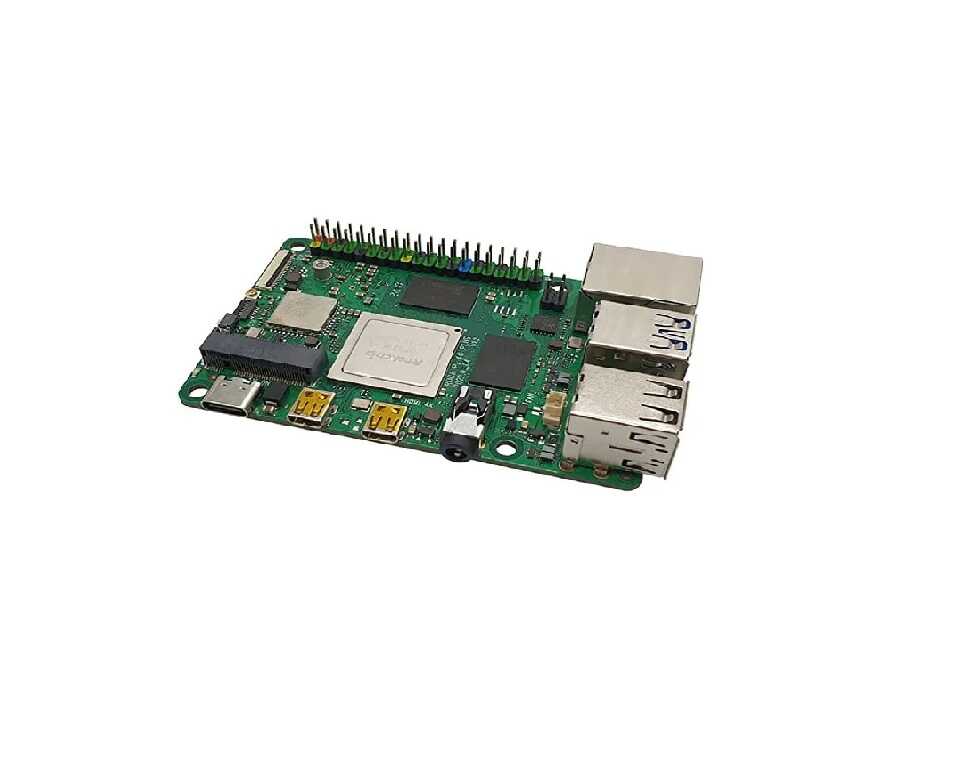

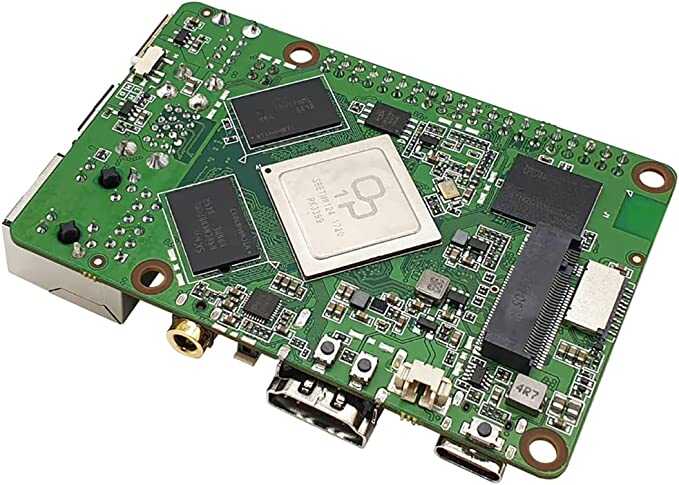

Rock Pi 4C+ Development Board 4GB - Wi-Fi Bluetooth Supported

Rock Pi 4C+ Development Board 4GB - Wi-Fi Bluetooth Supported

ROCK 4 is an ultra-small form factor Single Board Computer (SBC) that delivers class-leading performance while taking advantage of outstanding mechanical compatibility. ROCK 4 provides makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and highly capable platform to build their ideas and turn them into reality.

ROCK 4 features a modern and powerful hexa-core ARM-based processor with RK3399 inside and offers significantly improved performance compared to other popular SBC boards. All models feature LPDDR4 3200Mb/s RAM and optional high-performance eMMC modules, powering any application.

ROCK 4 offers constructor-friendly expansion options, including a 40-pin GPIO interface that allows interfacing with a range of inputs from buttons, switches, sensors, LEDs and much more.

ROCK 4 also has a Gbit LAN for networking, with dedicated bus and controller, it works without lag under heavy-duty networking applications. It offers built-in 802.11 ac wifi, 2.4G and 5G WLAN connectivity. With Bluetooth 5.0, ROCK 4 benefits from improved Bluetooth speed and greater range.

ROCK 4 also features a standalone USB 3.0 host and a USB 3.0 OTG port, each with 5Gbps/s. USB 3.0 OTG can work as a USB device like Android ADB or USB devices. A hardware switch is provided for the OTG mode switch.

ROCK 4 supports GPU-accelerated mainstream AI stack. What's more, a dedicated hardware NPU accelerator next for ROCK 4 will boost the complex Machine Learning algorithm and reduce power.

The industrial standard MIPI CSI connector makes it easy to connect external cameras to ROCK 4, and ROCK 4 also supports industrial standard MIPI DSI for LCD and touch screen. With hardware accelerated algorithm it is great for Image Processing application, Robotics and much more.

 Rock Pi 4C+ Geliştirme Kartı 4GB - Wi-Fi Bluetooth Destekli Teknik Özellikleri:

• Processor System:
  • Dual Cortex-A72 frequency 1.5 GHz (up to 2 GHz)
  • Quad Cortex-A53 1.4Ghz (up to 1.6GHz) with NEON coprocessor
  • Mali-T864 GPU
• memory storage
  • 4GB LPDDR4
  • MicroSD card slot (support up to 128GB)
  • Support up to 2TB M.2 2230 NVMe SSD (PCIe 2.0 x4)
  • Optional eMMC socket (16GB, 32GB, 64GB, 128GB)
  • 32Mb SPI flash pluggable – NVMe boot or network boot via SPI for example supported*
• Display/Sound:
  • Micro HDMI 2.0 Type D (up to 4k@60)
  • Micro HDMI 2.0 Type D (up to 2k@60)
  • MIPI DSI 4-lane display (with FPC connector)
  • Audio 3.5mm jack with microphone
  • HD codec supports audio up to 24-bit/96 kHz
• Camera Interface:
  • MIPI CSI 2 lanes for 8MP camera (via FPC connector)
• networking:
  • Gigabit LAN port (with PoE support via PoE HAT plug-in)
  • Wireless 802.11 b/g/n/ac
  • Bluetooth 5.0
• USB
  • 2x USB 2.0 host ports
  • 1 USB 3.0 HOST
  • 1x USB 3.0 OTG port
• I/O Expansion:
  • 1 UART
    2 SPI buses
    2 x I2C buses
    1 PCM/I2S
    1 SPDIF
    1 PWM
    1 ADC
    6 GPIOs
    2 x 5V DC power inputs
    2 x 3.3V power pin

modeller:

ROCK 4A/4B



ROCK  4A/4B Artı

ROCK  4 SE
