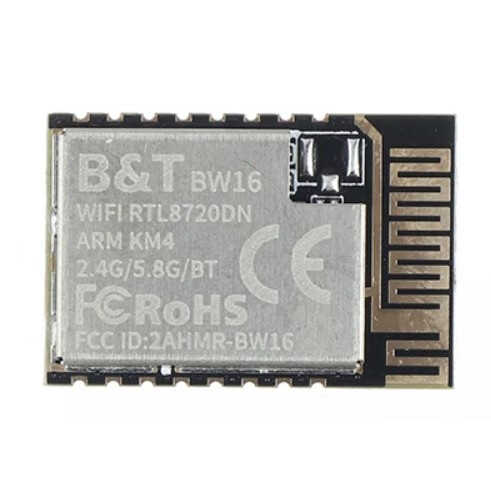

BW16 WiFi + Bluetooth Module

BW16 WiFi + Bluetooth Module

BW16 WiFi + Bluetooth Module is a dual-frequency Wi-Fi Bluetooth SoC product. It supports dual band (2.4GHz or 5GHz) WLAN and Bluetooth compatible low energy 5.0, and also provides bluetooth compatible baseband and RF baseband, configurable GPIO port for control of different peripheral devices. It integrates internal memory, realizes complete Wi-Fi and BT 5.0 protocol functions. Industrial manufacturing, smart home, smart farm, hotel solutions, etc. It can be easily used in other areas.

BW16 WiFi + Bluetooth Module Technical Specifications:

• Size: 24mm x 16mm x 0.3mm
• Power Supply Voltage 3.0V ~ 3.6V,
• Spectrum Range: 2400-2483.5 MHz - 5180-5825 MHz
• Bluetooth Compatibility: BT5.0
• Bluetooth Compatible Frequency Range: 2.402GHz-2.480GHz
• Support Interface: UART/GPIO/ADC/PWM/IIC/SPI/SWD
• Storage environment: -40 °C to 125 °C / 90% RH
• Operating Temperature: -20 °c / 70 °c
