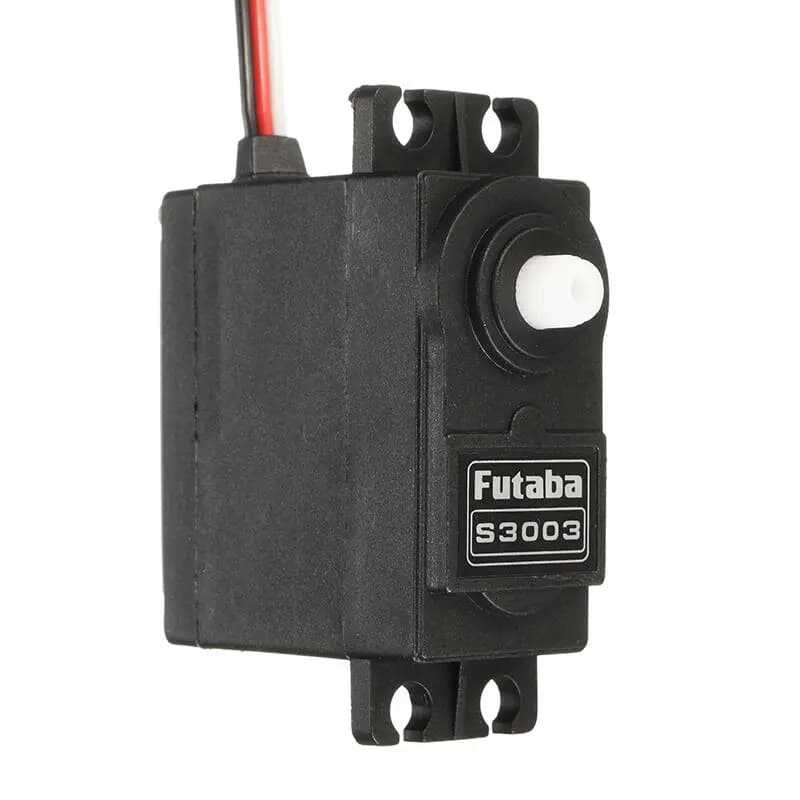

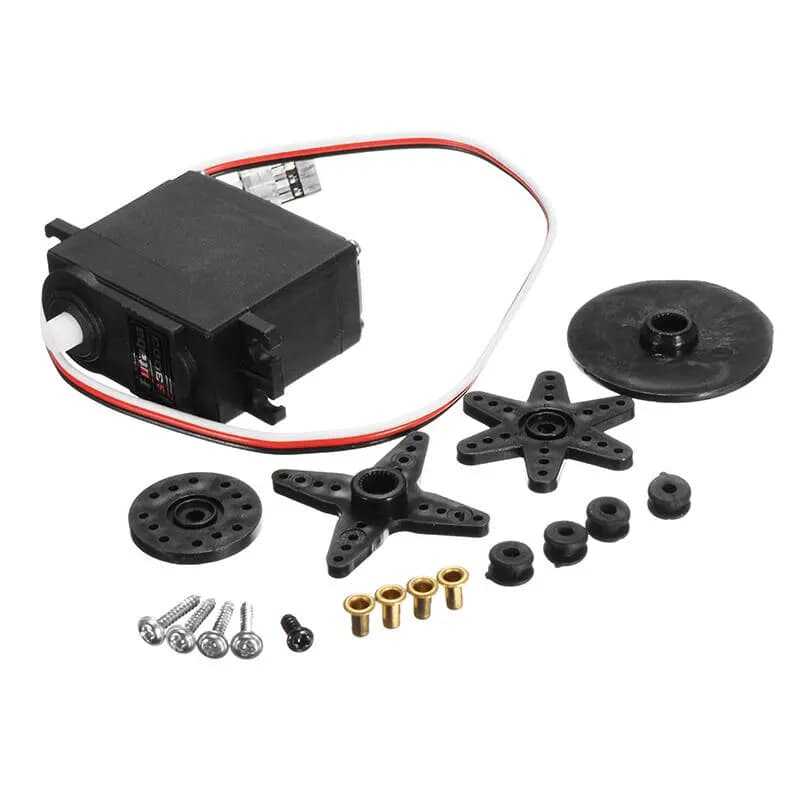

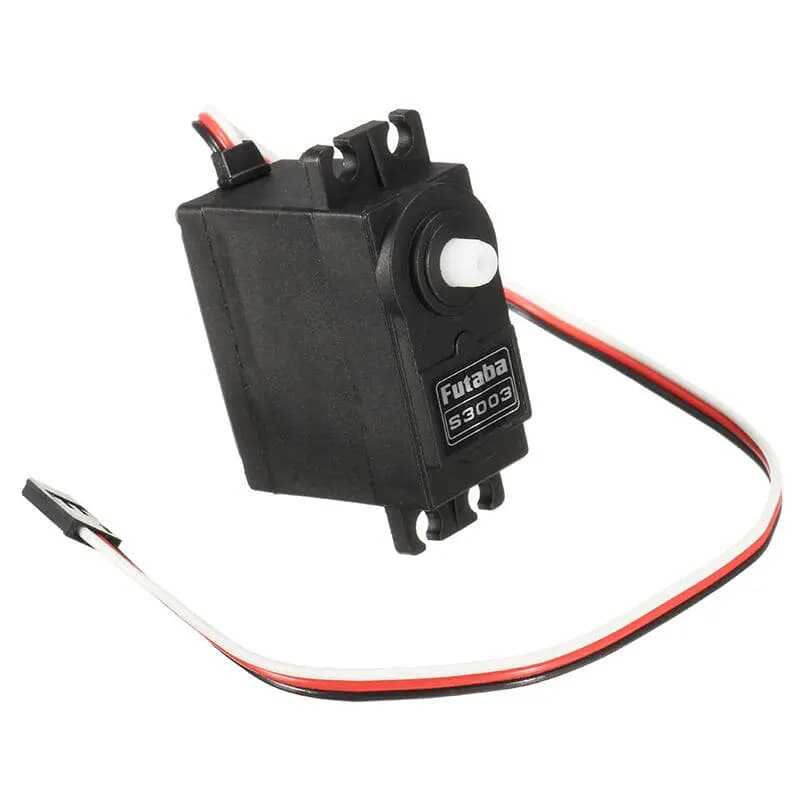

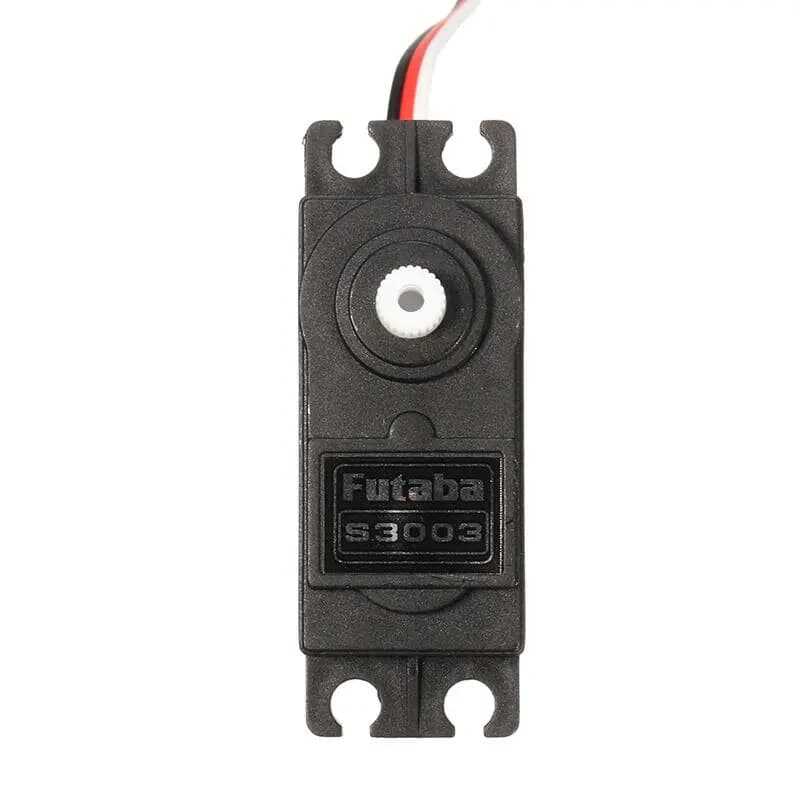

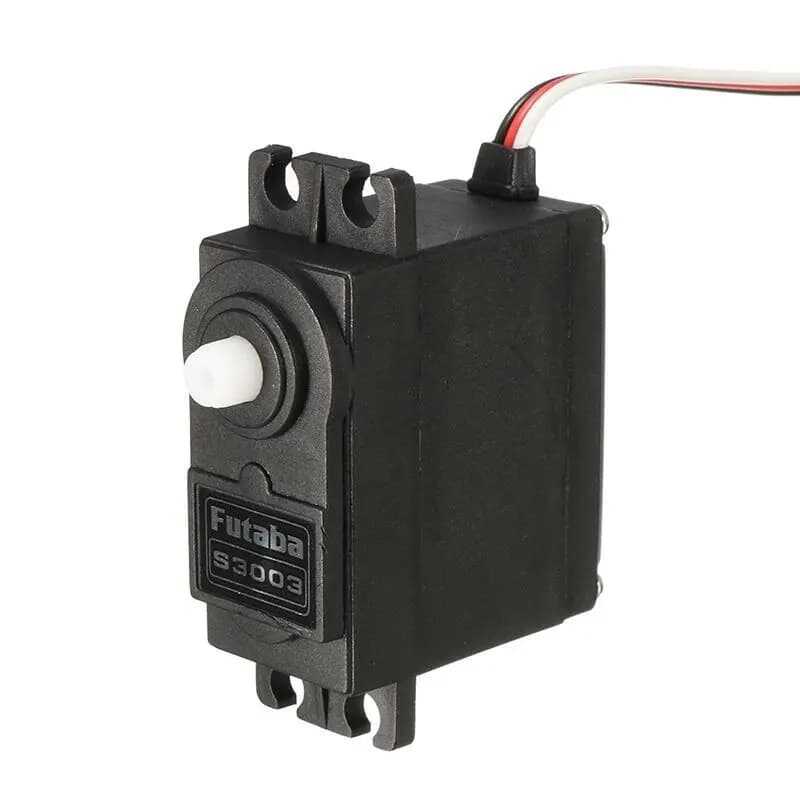

Futaba S3003 Servo Motor - 12KG 360 Degree

Futaba S3003 Servo Motor - 12KG 360 Degree

Servo is defined as a drive system that performs angular-linear position, speed and acceleration control in mechanisms without error. In other words, it is a motion control mechanism. Servo motors are the most used motor type in robot technologies, but they are also used in RC (Radio Control) applications. RC Servo Motors were first used in remote control model vehicles. Servos are designed to take the desired position and not change their position unless a new command comes. Servo motors can be used for many different purposes. There are models in different sizes and different torque powers. You can click here to find the most suitable servo motor type for your project.

Futaba S3003 Servo Motor Technical Specifications:

• Model: Futaba S3003
• Control System: +Pulse Width Control
• Operating Frequency: 20ms Period / 50Hz (Analog Control)
• (RX) Required Pulse: 3.0 ~ 5V Peak-to-Peak Square Wave
• Operating Voltage: 4.8 ~ 6V/DC
• Operating Temperature Range: -0 to +55 Degrees C
• Operating Speed ​​(4.8V): 0.200 sec/60° Degree (no load)
• Operating Speed ​​(6V) 0.160 sec/60° Degree (no load)
• Stall Torque (4.8V): 9.4kg/cm
• Stall Torque (6V): 11kg/cm
• Motor Type: Brushed Motor
• Potentiometer Driver: Direct Driver
• Bearing Type: No Bearing
• Gear Type: Plastic Gear
• Case Material: Plastic
• Programmable: NO

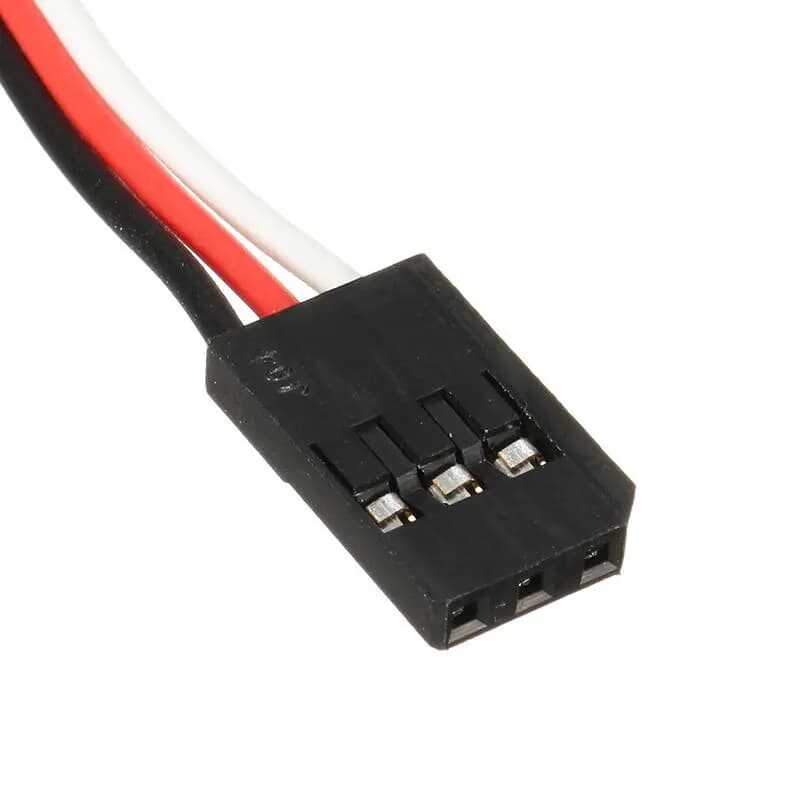

• Connector Cable Length: 32.0cm
• Width: 20mm
• Length: 41mm
• Height: 39mm

• Weight: 43gr
