Camera for Raspberry Pi Zero - 120 Degrees

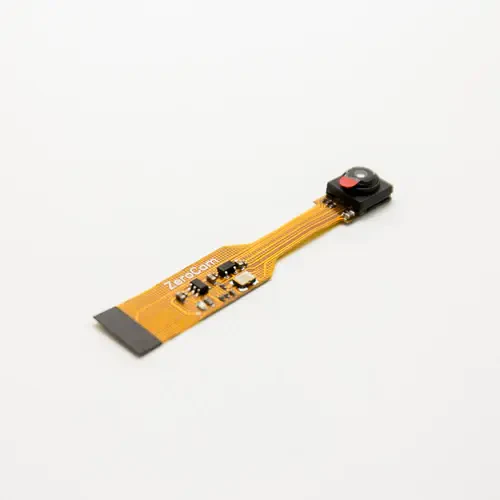

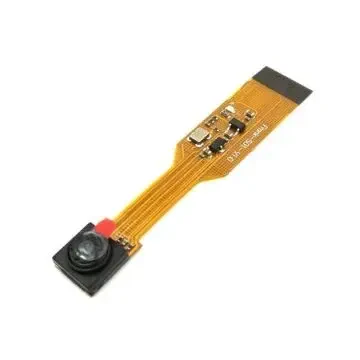

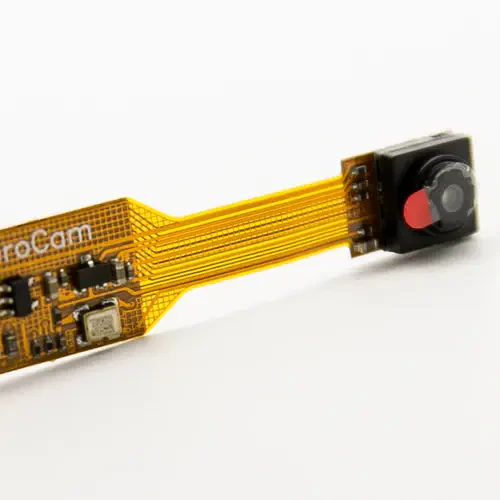

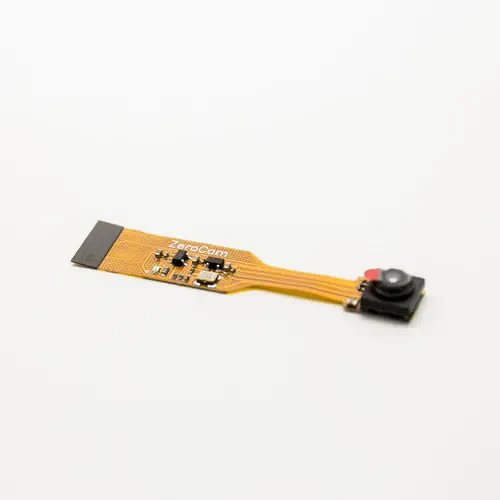

Odseven 120° Camera for Raspberry Pi Zero

Odseven 120° Camera is a camera module available for Raspberry Pi Zero or Zero W. This camera, which has a 5 Megapixel sensor, does not need an additional adapter as it plugs directly into the camera port of Raspberry Pi.

Compatible Models with Odseven 120° Camera for Raspberry Pi Zero:

• Raspberry Pi Zero
• Raspberry Pi Zero W

Odseven 120° Camera Technical Specifications for Raspberry Pi Zero:

• Sensor: OV5647
• Megapixel: 5
• Pixel Size: 2592 x 1944
• Pin: 22
• Peach: 0.5 mm
• AVDD: 2.7 / 3.3 V
• DVDD: 1.45 / 1.8 V
• DOVDD: 1.7 / 3.3 V
• Lens Structure: 4P (650nm)
• EFL: 3.52
• FNO:2.8
• FOV: 120 Degrees
• Output Format: 30 FPS
• Lens: F2.2
• Focal Length: 1.88mm
• Circuit / Camera Dimensions: 60 x 11.5 x 5.5 mm
