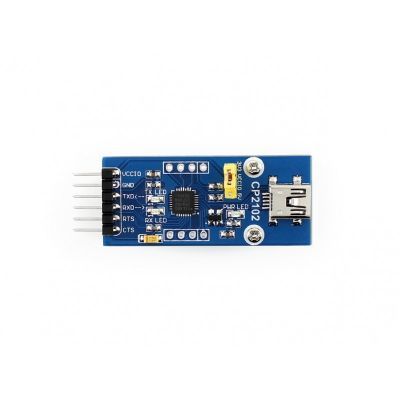

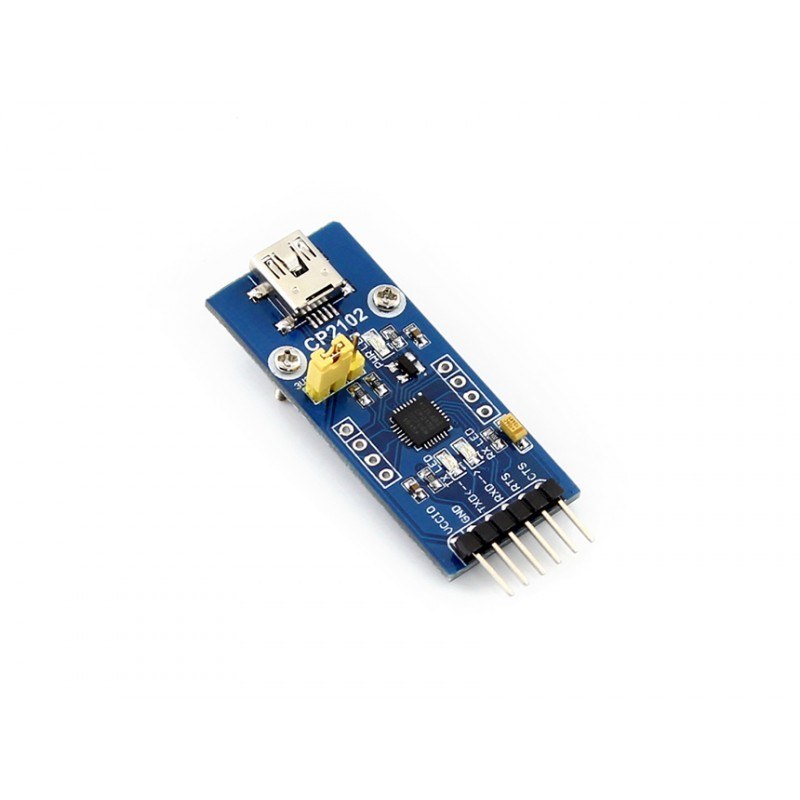

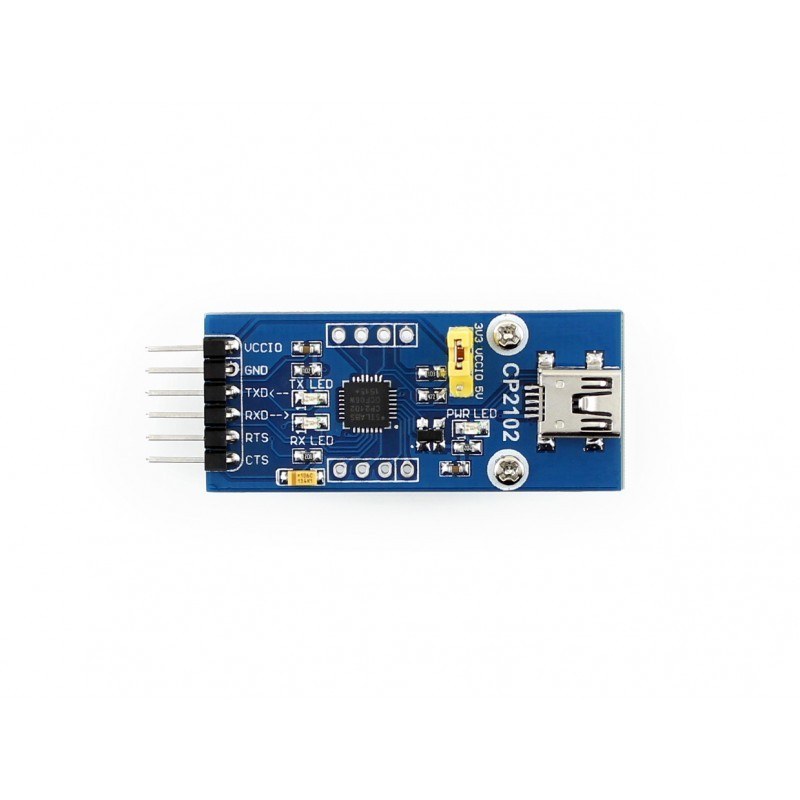

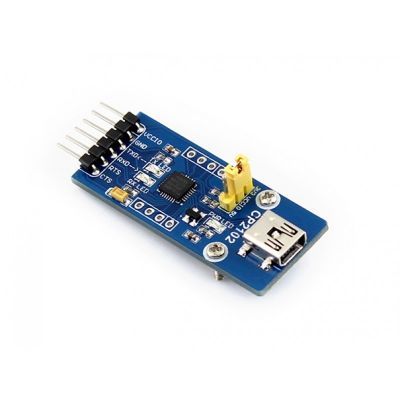

This board can be used as USB-UART converter and programmer. There is an internalCP2102 IC which is produced by SiLabs. Mini USB B type connector is available. UPackage doesn't include USB Cable.

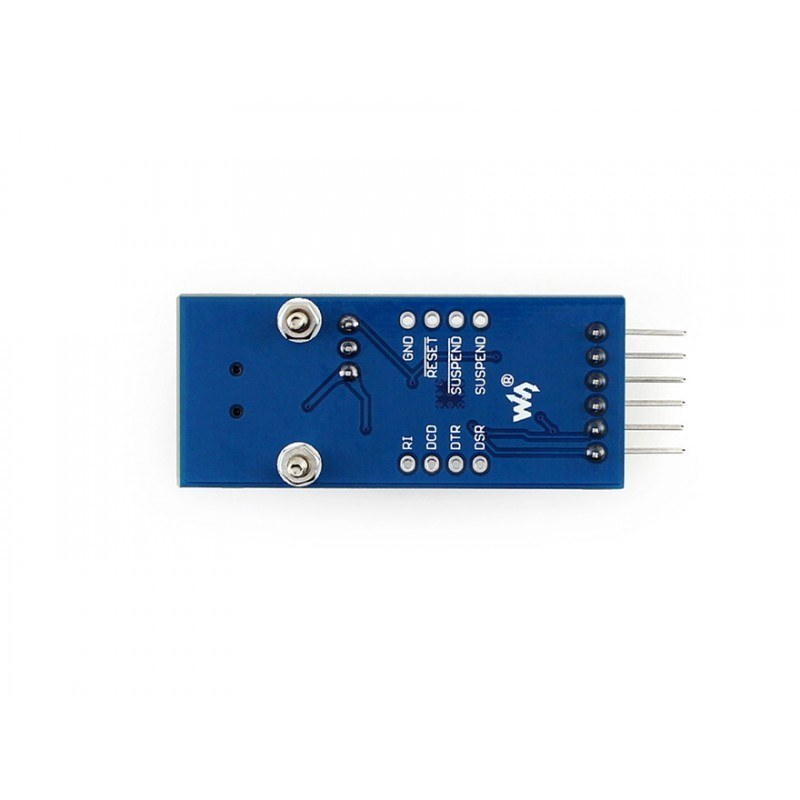

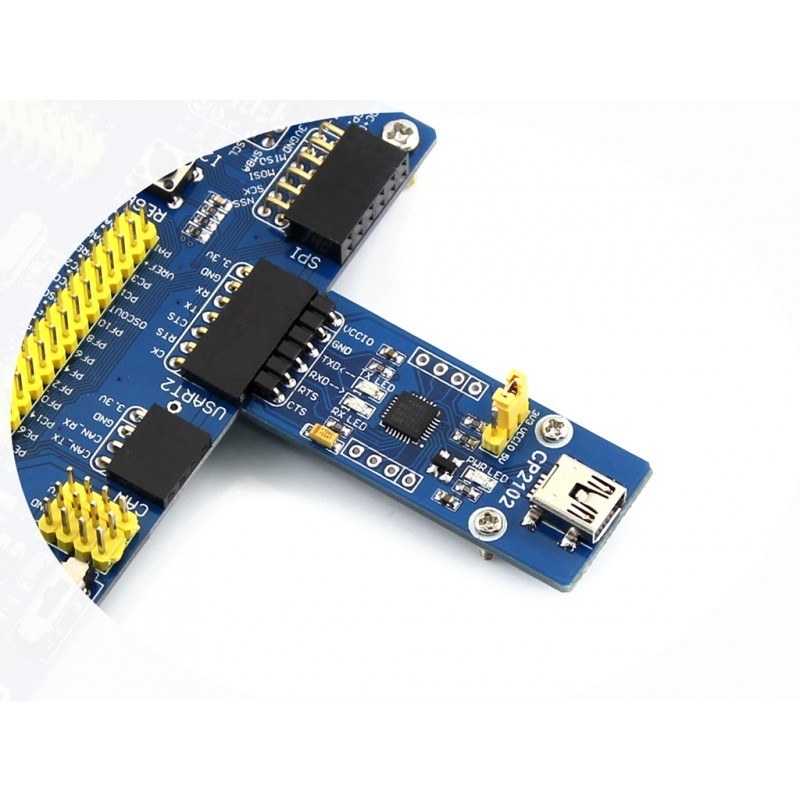

Reset pin is available, so you can program your microcontrollers which don't have a USB connection like Arduino Mini.
Jumper are avilable for switch from 3.3V/5V and switch between logic and Vcc voltages.
Teknik Özellikler:
- USB 2.0 Full-speed supported(12 Mbps)
- Compatible with all handshake and data signals.
- Data bits: 5, 6, 7 ve 8
- Stop bits: 1, 1.5 ve 2
- Parite: Odd, even ve paritesiz
- Baud rate: 300bps - 1Mbit
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshake support
- Event character support
- TX, RX and power LEDs
- Windows 8/7/Vista/Server 2003/XP/2000 supported.
- MAC OS-X/OS-9 supported.
- Linux 2.40 and above is supported.
- Operation Tempreature Range –40 ile +85 °C
