Through connecting this product to the outputs of your electronic circuits or devices which operate between DC 4.5-28V(max 30V), you can see voltage datas instantly and measure voltage digitally. Also, if the connected source between product's anode and cathode legs are max 30V, by connecting another device's that you want to measure its voltage, cathode to digital voltmeter's cathode and its anode to digital voltmeter's white cable, you can see values between 0-100V.

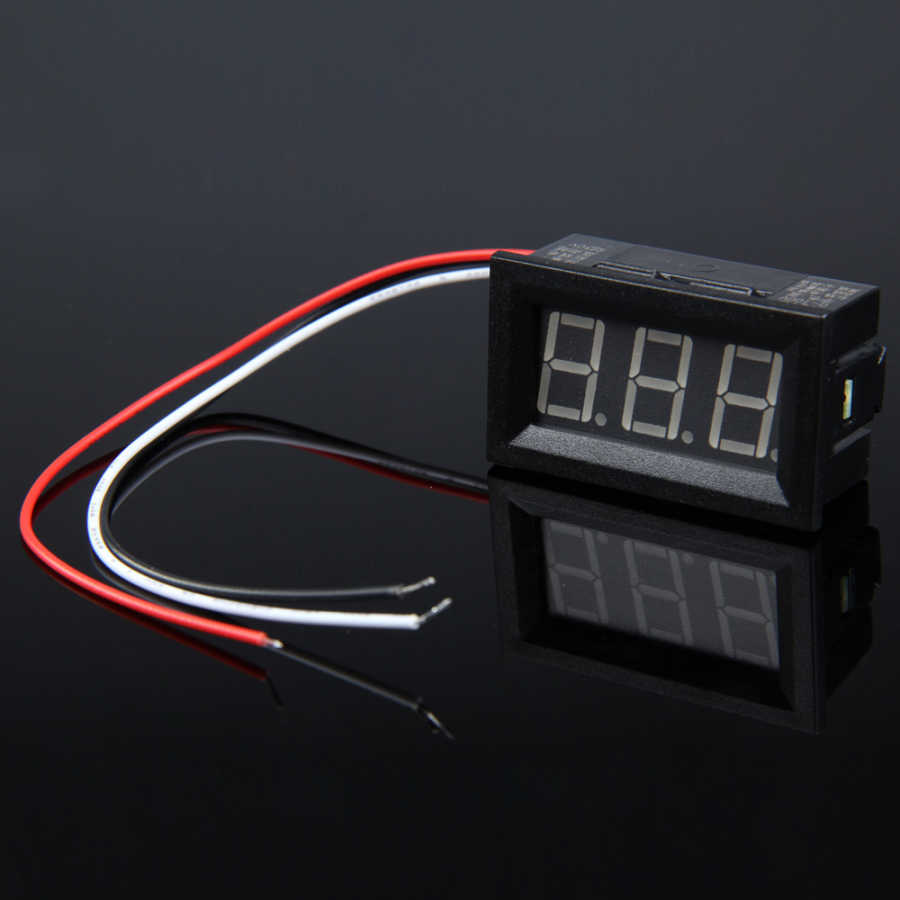

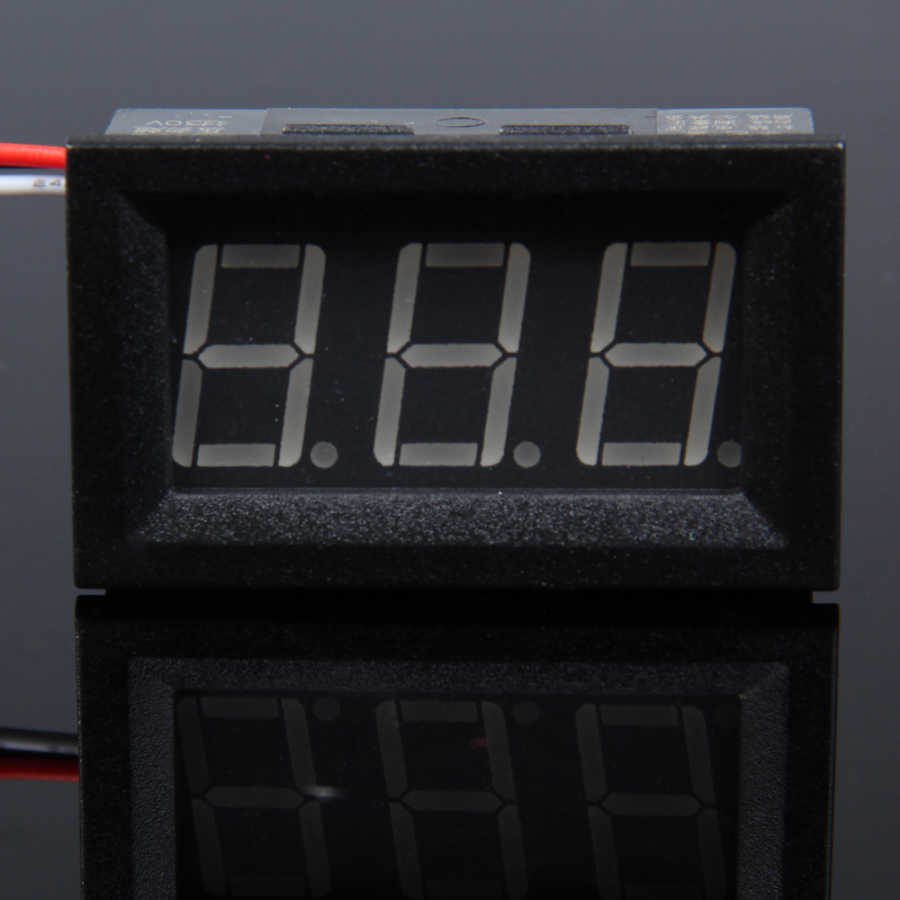

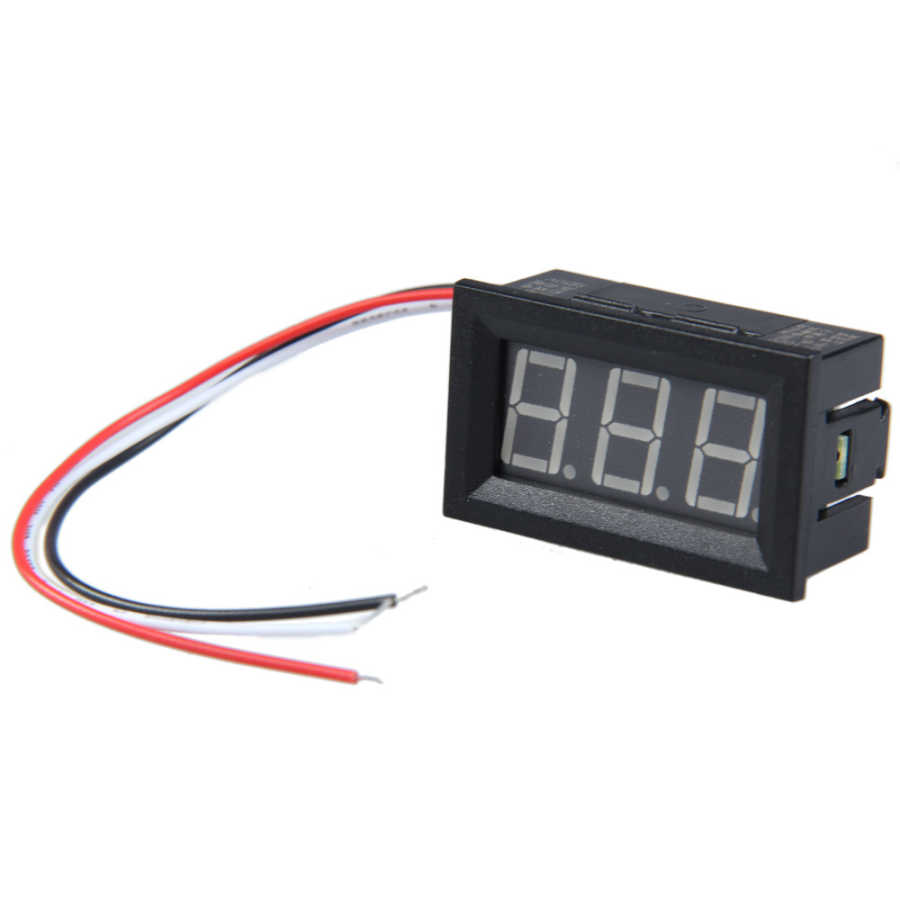

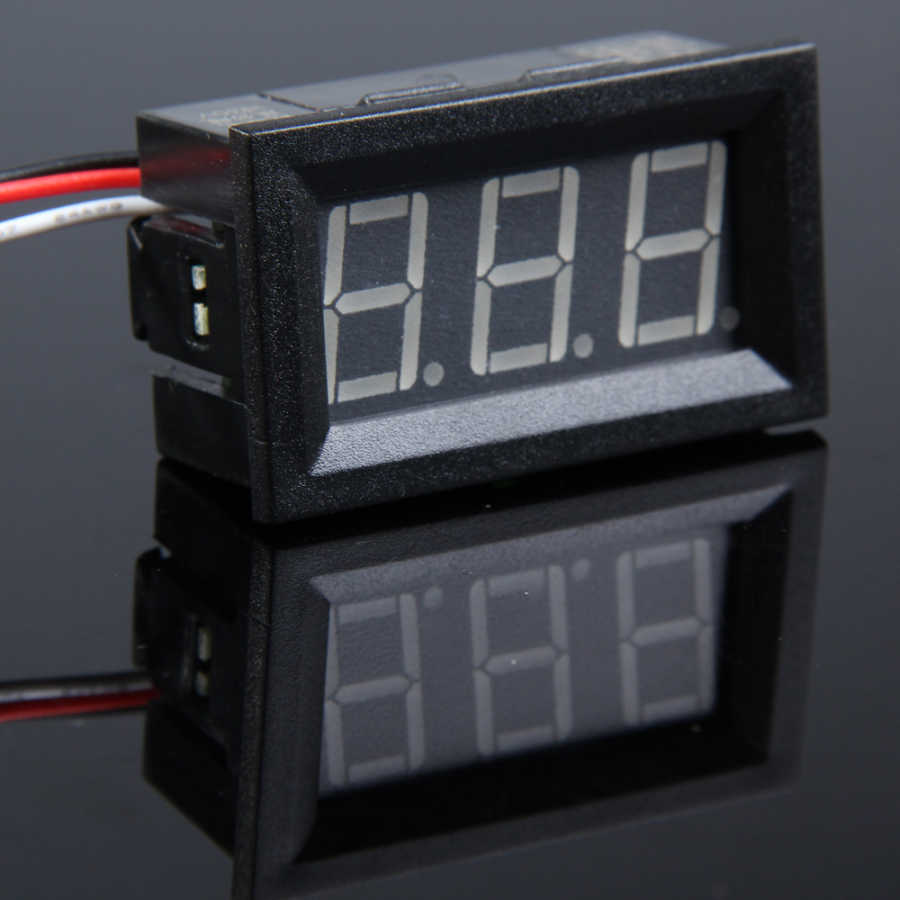

This small but readable 0.56" digital voltmeter with 3 Digit Display updates screen datas with 500 ms periods, will play a very important role in your projects. Also 1% tolarence is an important feature of the product.

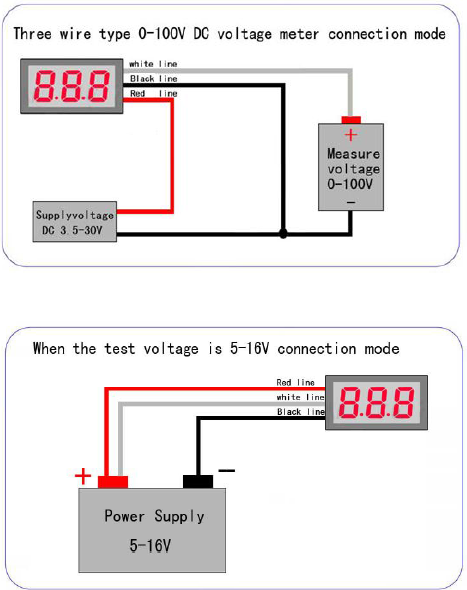

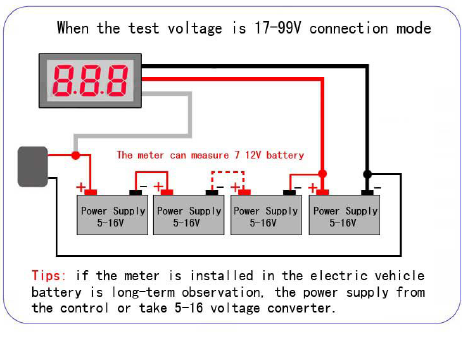

Connection examples are below.
Features:
- Weight: 18g
- Display Colours: Red, Green, Blue
- Display Mode: 0.56" 3 Digit LED Digital Tube
- Update Time: 500ms
- Phsical Sizes: 48 x 29 x 22 mm (L*W*H)
- Input Range: 4-30V
- Cable Length: 14cm
- Measurement Range: 0-100V
- Operating Environment Temperature: -10° ~ 65°
- Tolarance: ±(1% + 2 digit)
