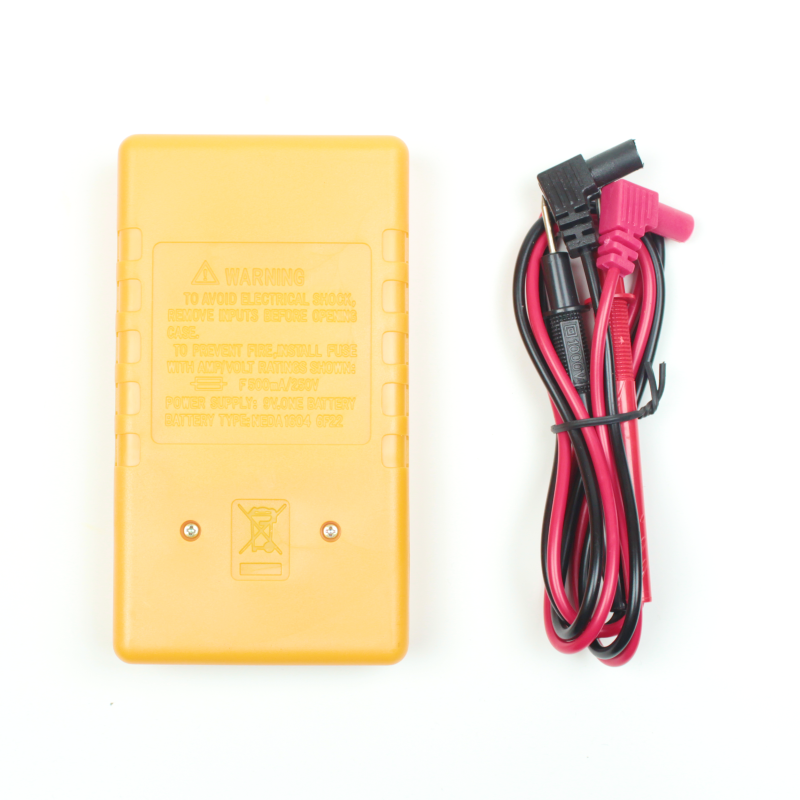

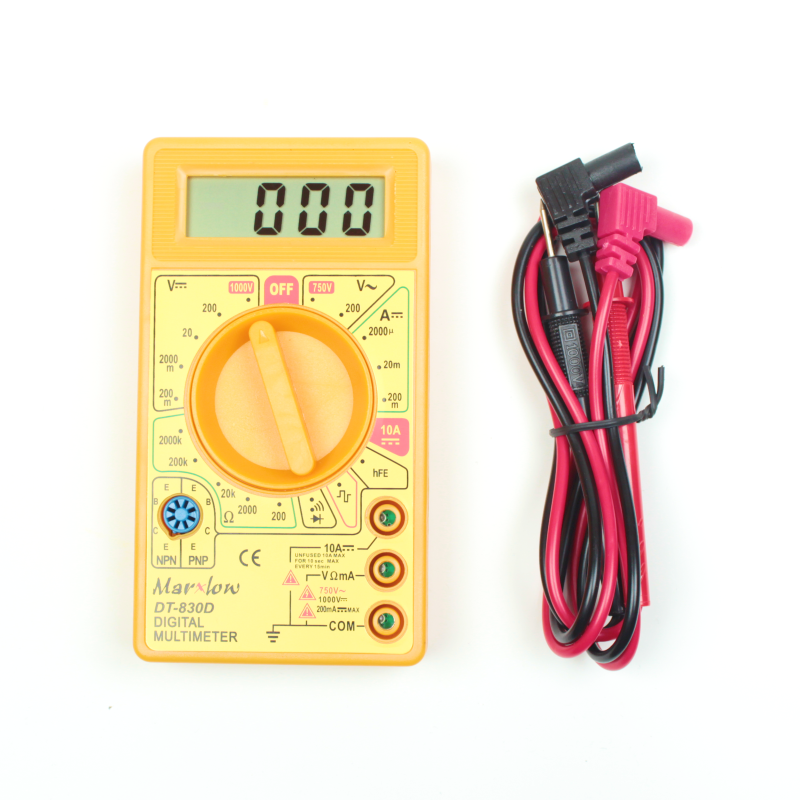

DT-830D is a proper priced multimeter which you can use in hobby and various robotic applicatons.
It is a very useful product with its simple structure and proper price. You can do many basic applications with it such as DC voltage measuring, AC voltage measuring, resistance measuring, transistor measuring and short circuit control. It has buzzer feature on diode measuring.
Features:
- 3 1/2 digit, 1999 counter screen
- DC Voltage: 200m -2000m-20-200- 1000V ±% 0.5
- AC Voltage: 200-750V
- DC Currennt: 200μ- 2000μ-20m- 200m- 10A
- Resistance: 200-2000-20K- 200K- 2000KΩ
- Diode Test: Yes. With Buzzer Feature
- Size / Weight: 126 × 70 × 28mm/ 137g
- Over Charge Protection
- Power Source: 9V Battery (included in package)
