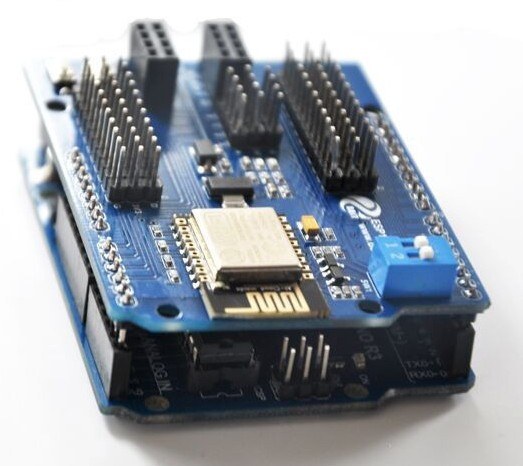

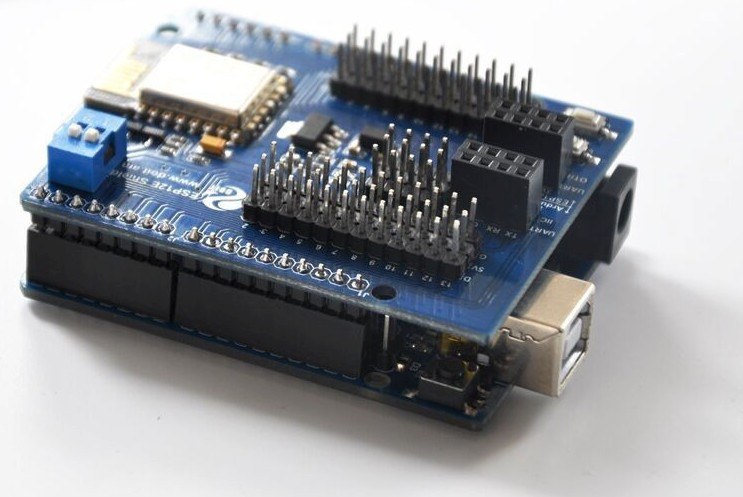

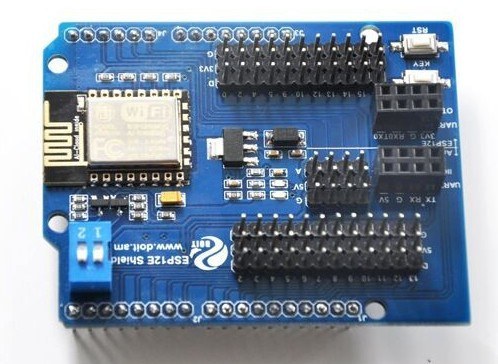

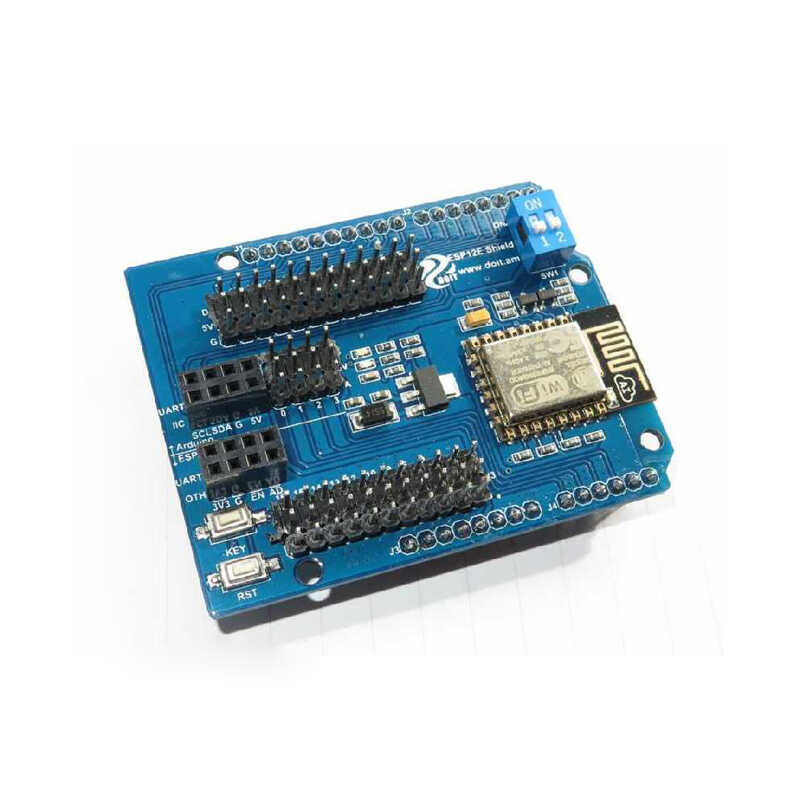

This shield is the easiest way to use Arduino and ESP8266 WiFi modules.You can connect your Arduino to internet, create a web server and connect to cloud services. There are triple headers as 5V, GND and pin for easy connection with Arduino pins, sensors and other units.
Specifications:
- 802.11b/g/n support
- Supports STA and AP modes
- TCP/IP protocol stack, TCP/UDP server and client modes
- Baud rate support: 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps
- Serial data bit support: 5/6/7/8 bits
- Serial port parite support: none
- Serial data stop bits: 1/2 bits
- Compatible with Arduino UNO and Mega
- Arduino pins 2/3/4/5/6/7/8/9/10/11/12/13 are on the card
- ESP8266 GPIO pins 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / * UART TX / UART RX are on the card
- Mode configuration with button
- DIP switches for transition between Arduino and ESP8266
- WiFi uses ~70mA (maxsimum 200mA) on contstant communication status, <200µA on null status
- Serial WiFi transmission speed: 110-460800bps
