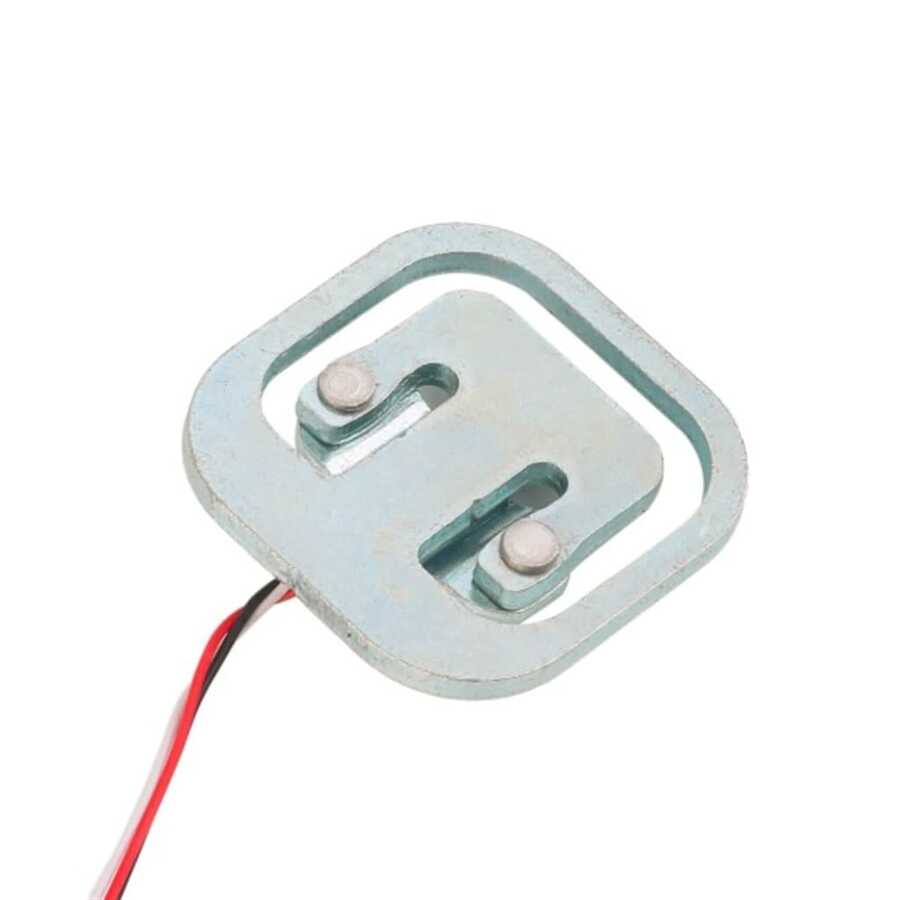

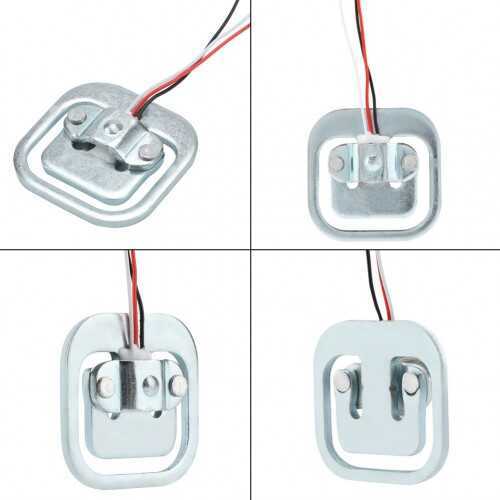

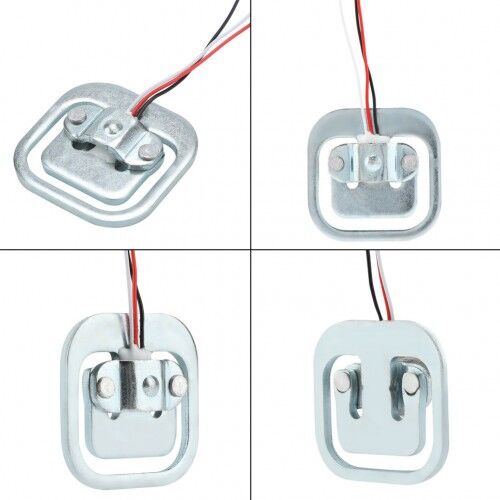

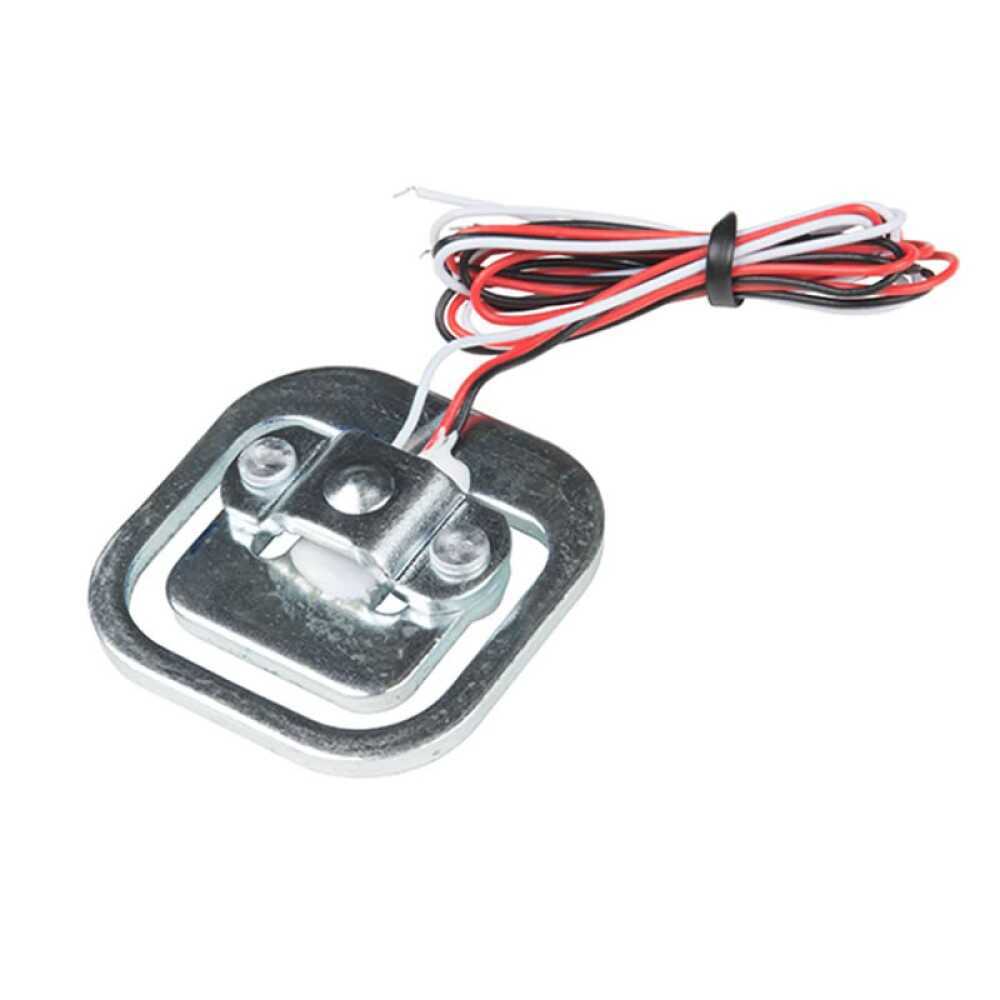

Load Sensor

This product is half-bridged a weight sensor. When half-bridge will get tense, signal is sent via red signal cable. You can use more than one sensor to increase range capacity at the same time.

Features:

• It is made from durable and solid materials.
• It is capable of detection up to 50 kg.

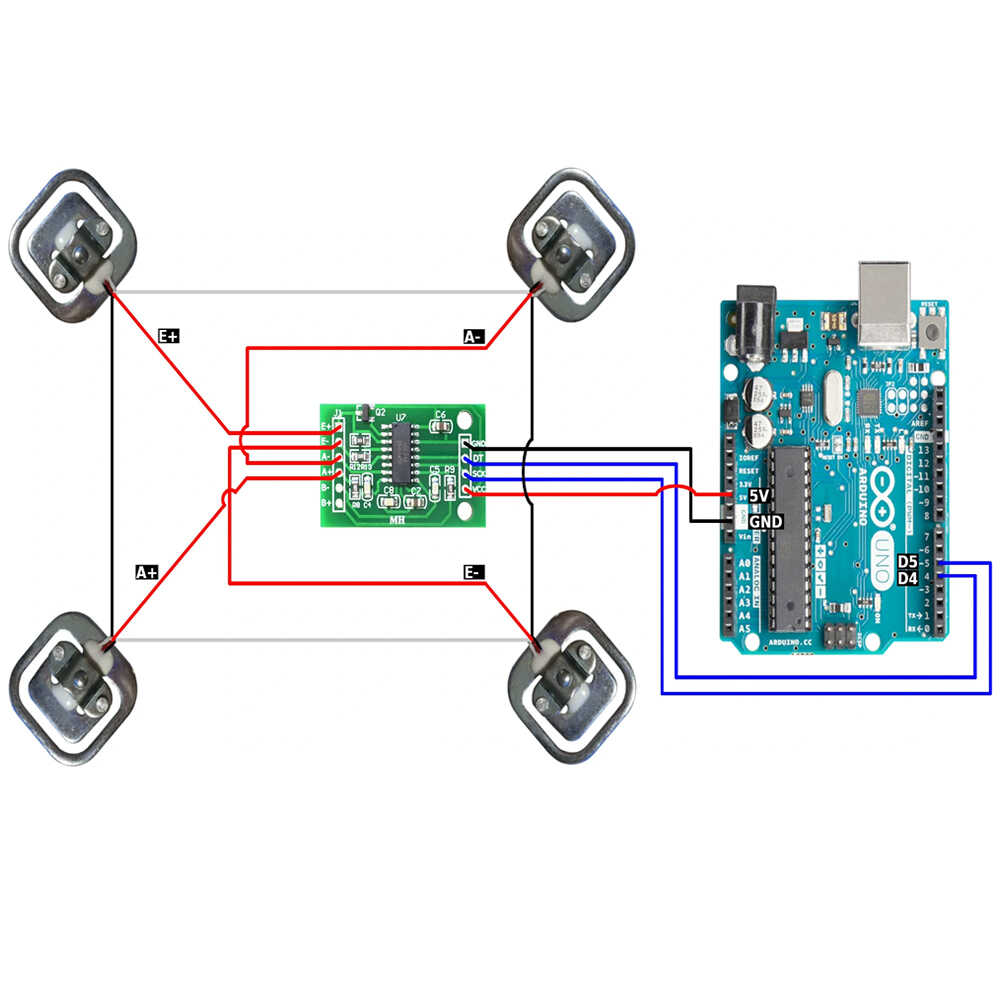

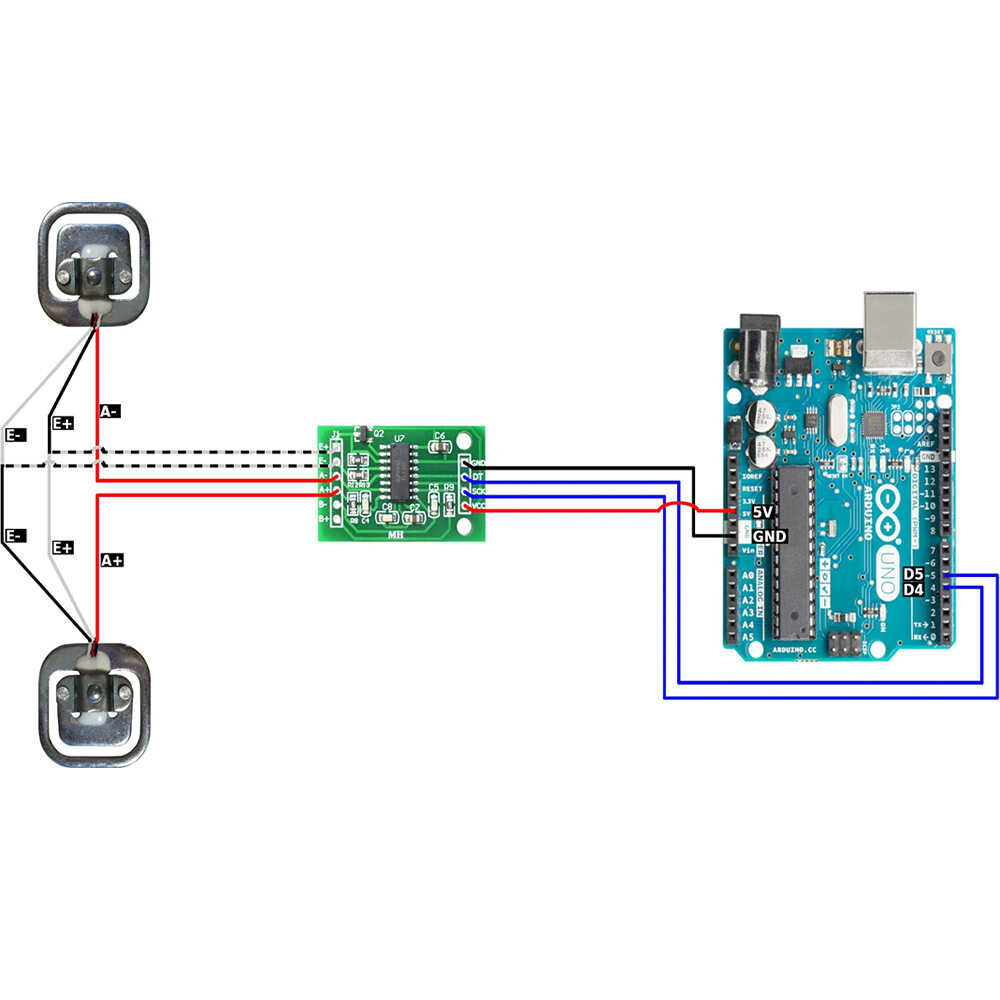

• Increasing capacity can be provided by the use of parallel.



Technical Features:

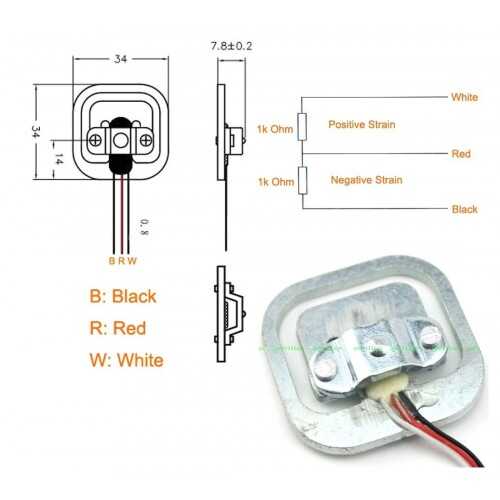

• Dimension: 28x28x8mm
• Capacity: 50 kg
• The rate of error: 0.2%
• Data Sensitivity: 1.1±0.15 mv/v
• The rate of linear error: 0.2%
• Repeatability: 0.1%
• Interruption: 0.2%
• Spread (%F.S/3dk): 0.1
• Zero Drift (%F.S/1min): 0.1
• Input Resistance(Ω): 1000±50
• Output Resistance(Ω): 1000±50
• Tetik Voltage (V): 5~10

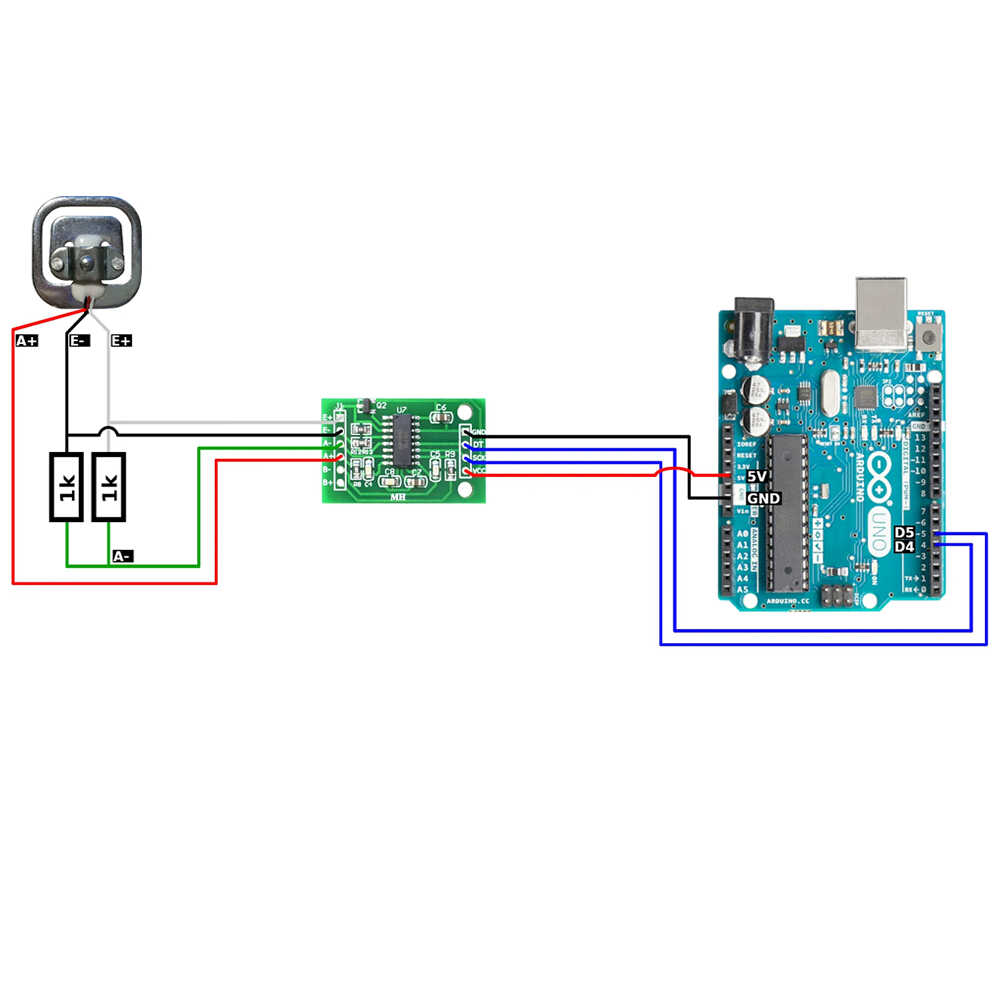

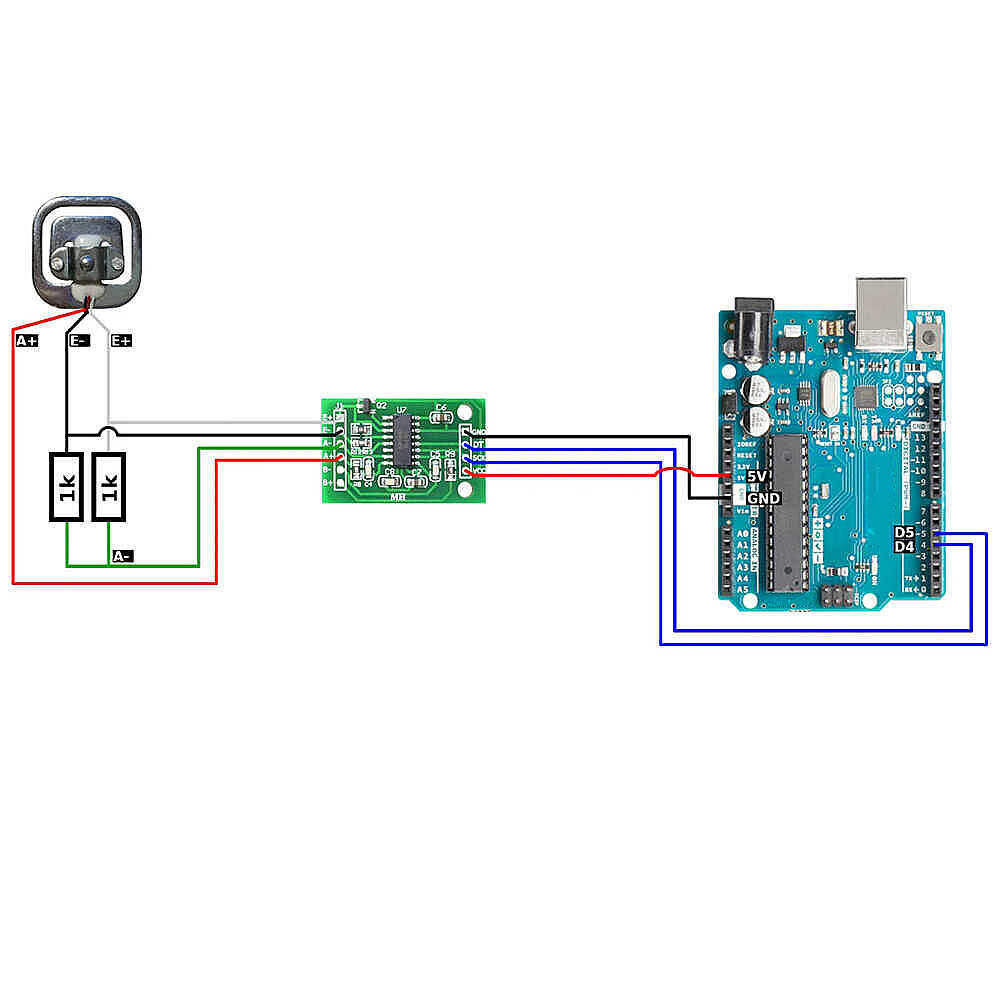

• Cable Connections: Red: Signal+ Black: EXC- Blue: EXC+
