I2C BME680 Environmental Sensor

I2C BME680 Environmental Sensor

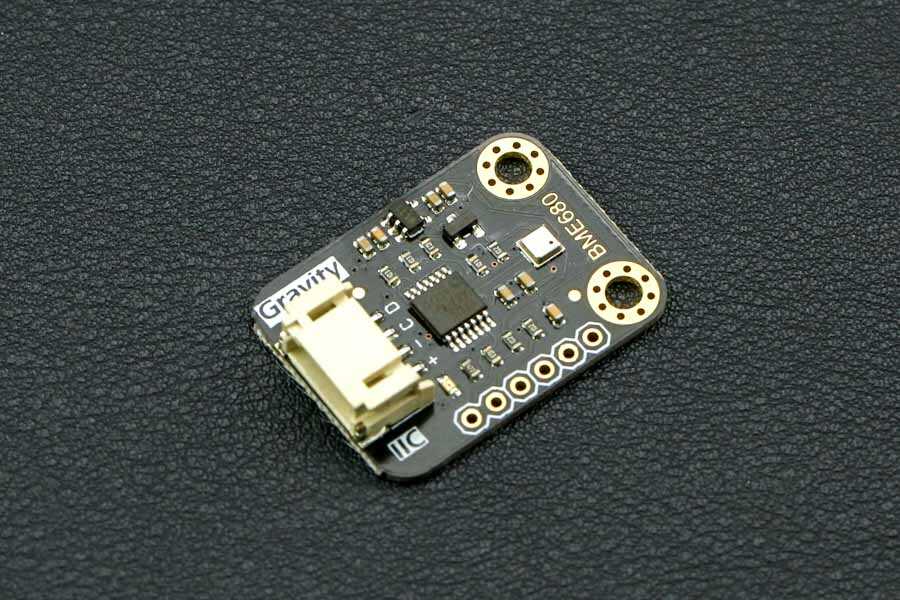

I2C BME680 Environmental Sensor, It is a 4-in-1 multifunctional MEMS environmental sensor integrating temperature, humidity and barometer. It is a product produced to monitor air quality. It also has a small size and low power consumption thanks to MEMS technology. It is widely used in areas such as home automation and control, internet of things (IoT), environmental monitoring and GPS development.

I2C BME680 Environmental Sensor Features;

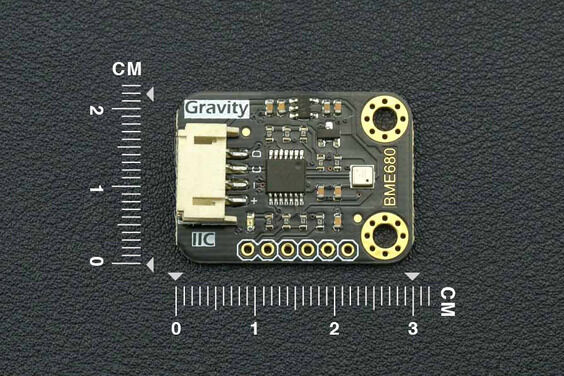

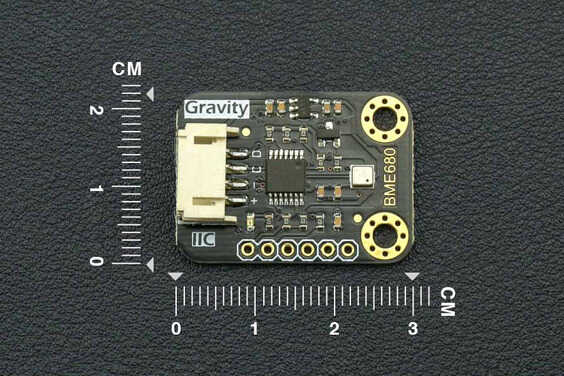

• Dimension: 18 x 15.6 mm
• Working Voltage: 3.3V / 5.5V
• Working Current: 5mA
• Temperature Measurement Range: -40°C / + 85°C
• Temperature Measurement Accuracy: 0 ~ 65°C
• Humidity Measurement Range: 0-100% rH
• Atmospheric pressure measuring range: 300-1100 hPa
• Atmospheric pressure measurement accuracy: ± 6 hPa (300-1100 hPa, 0 ~ 65 ℃)
• IAQ(Indoor Air Quality) Range: 0 ~ 500 (The greater, the worse)
