JS40F Infrared Distance Sensor

The JS40F Infrared Distance Sensor is an object sensor capable of active detection. It is specially designed for Mini Sumo robots.

Sharp is the same size with the GP340F sensor, it is an extremely useful product that does not require an external circuit element.

You can see the digital signals given by the sensor with the LED behind the sensor response.

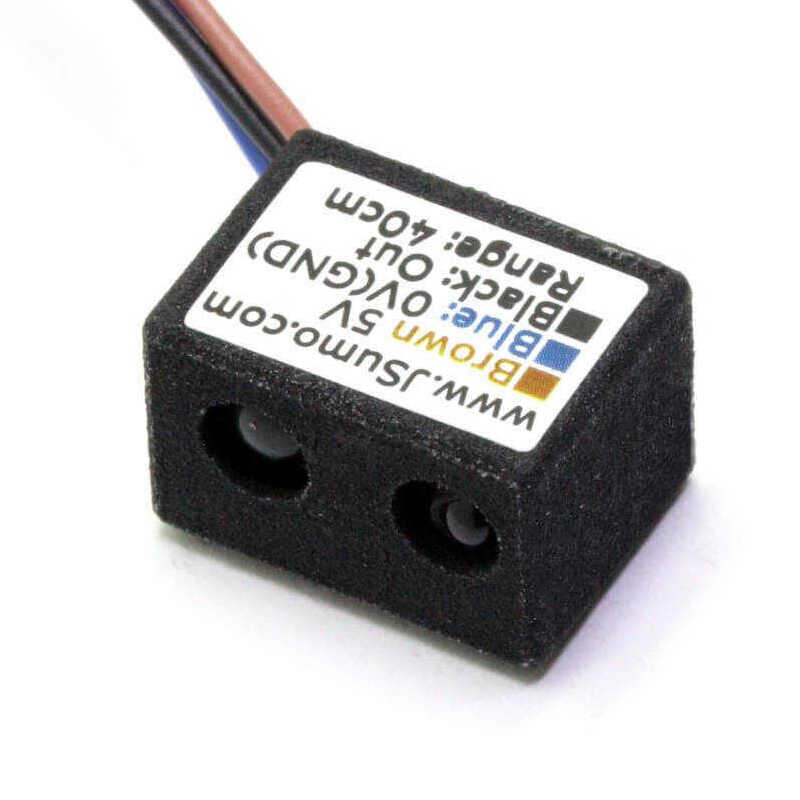

Pin outs: "Brown: VCC", "Blue: GND", "Black: Signal"

Usage areas:

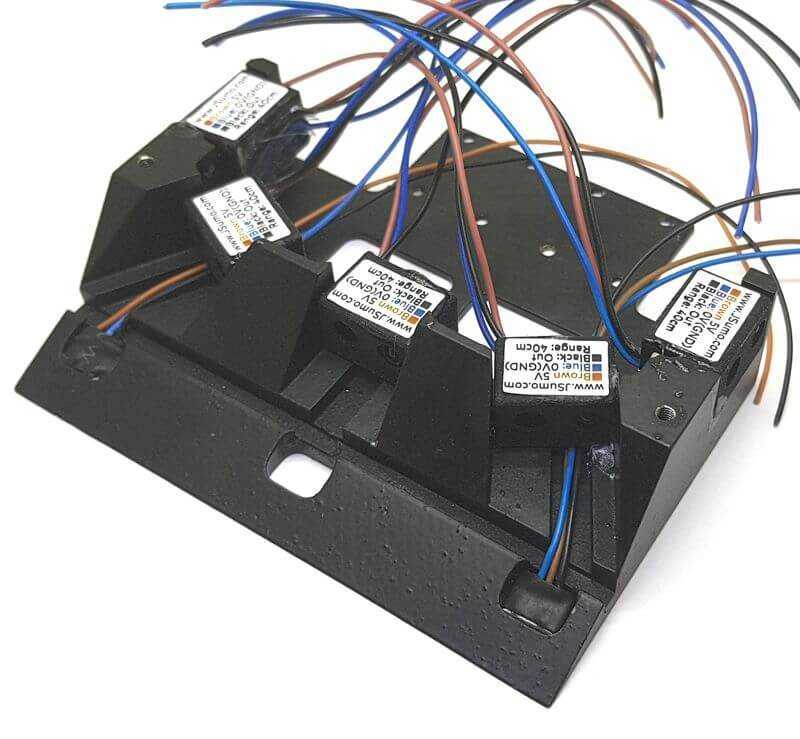

• Mini Sumo Robots

• Obstacle Escaping Robots

• Maze Solving Robots

Technical specifications:

• Operating Voltage: 5 VDC

• Pumping Current: 15 mA

• Reverse Voltage Protection: Yes

• Adjustable distance: Yes

• Cable Length: 15cm

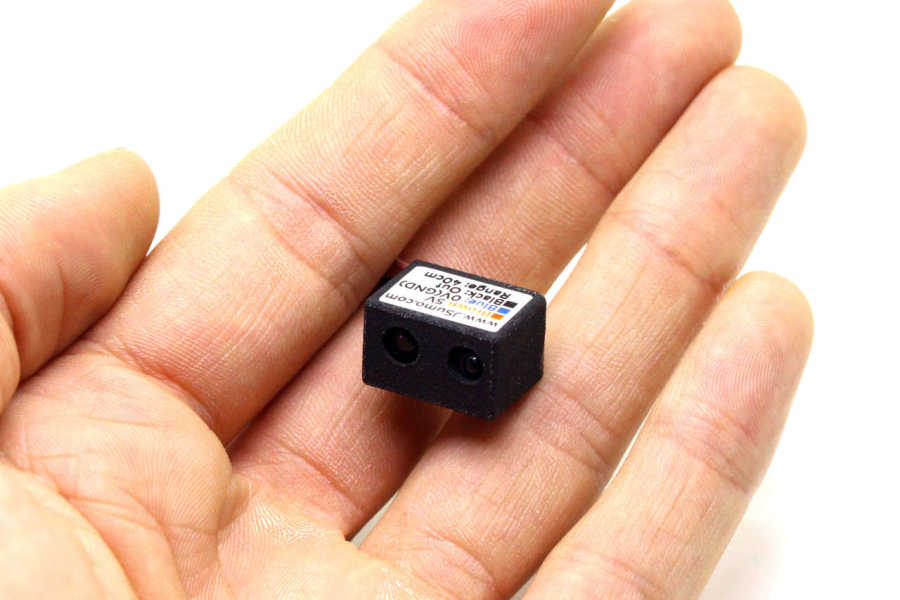

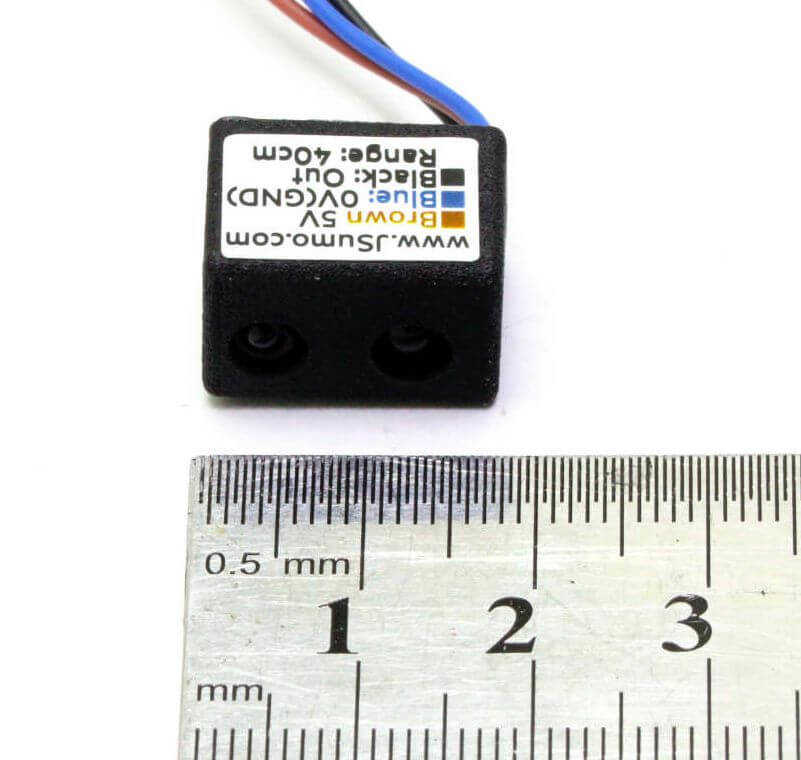

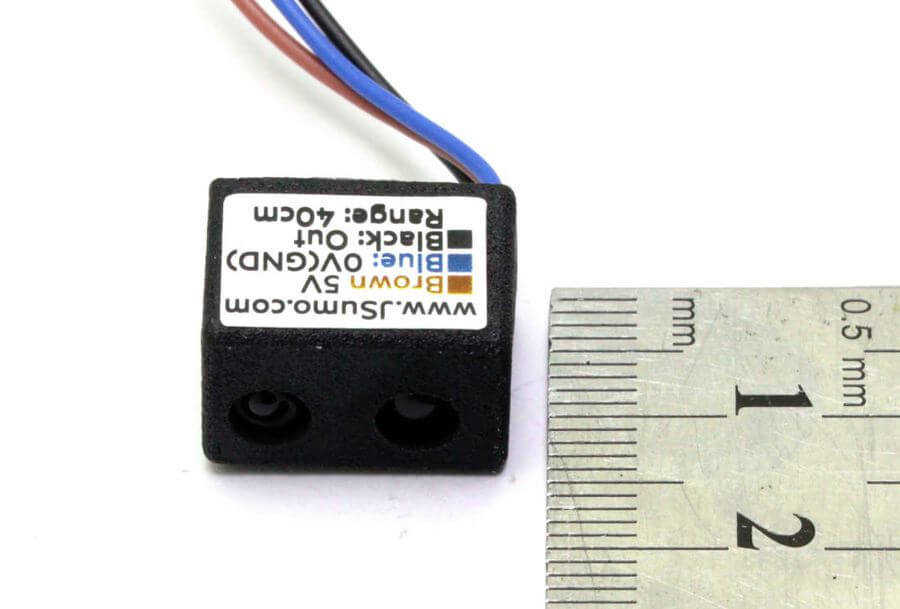

• Dimensions: 17.7 x 11.5 x 12.6mm

• Weight: 4g
