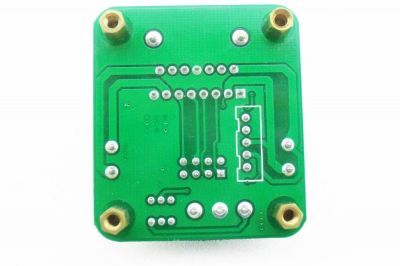

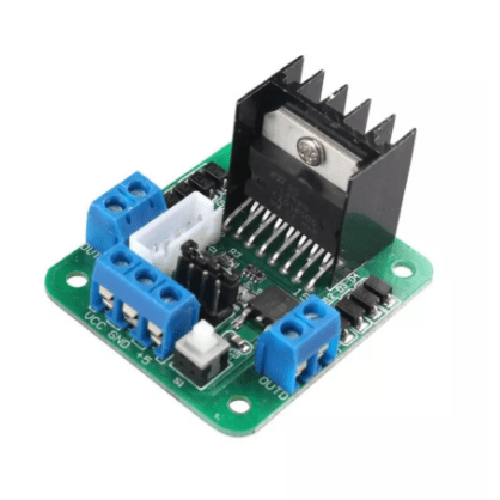

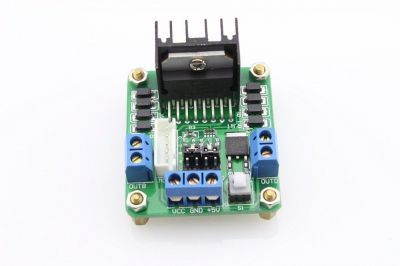

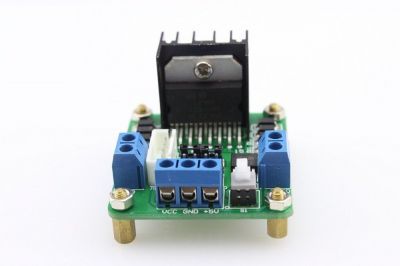

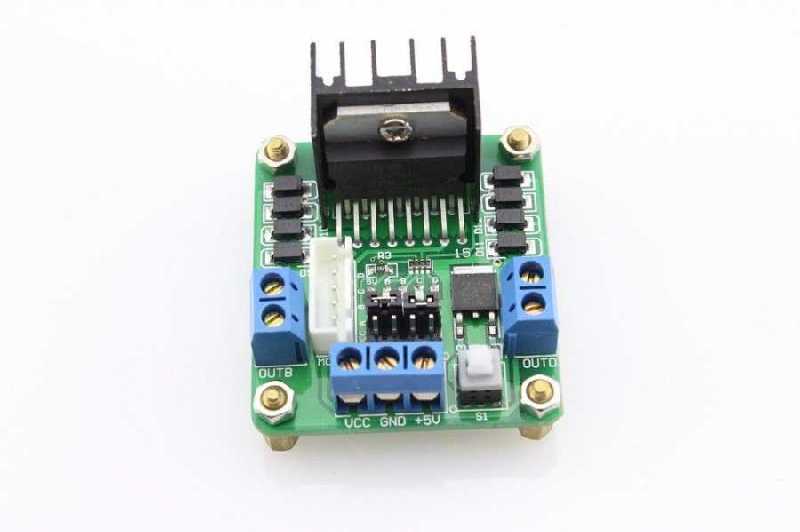

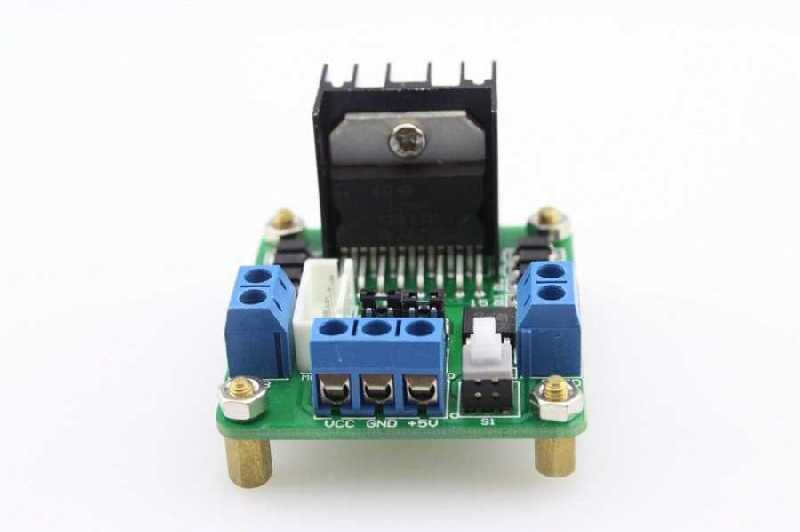

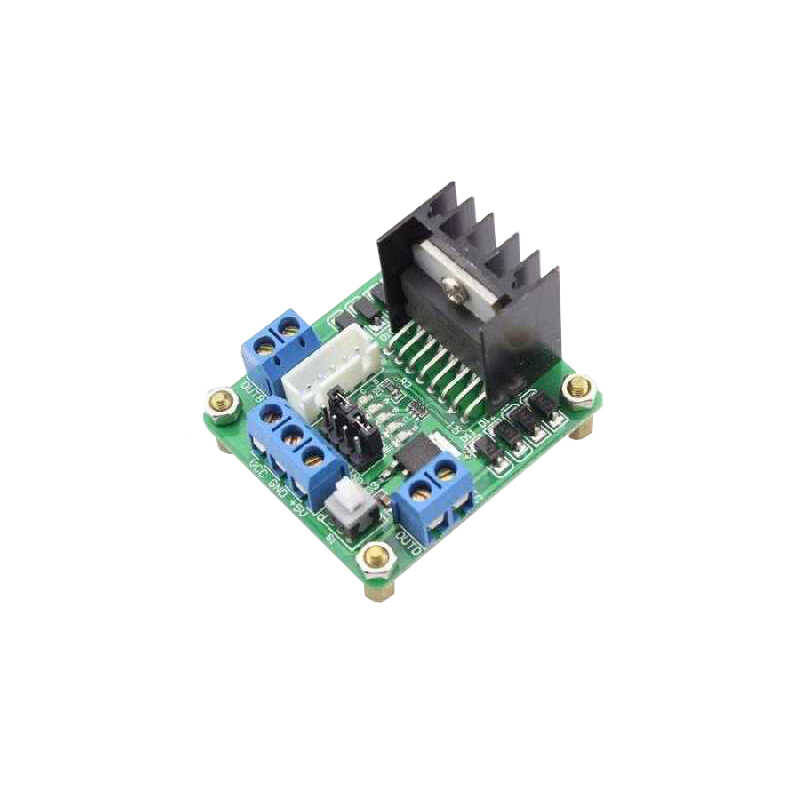

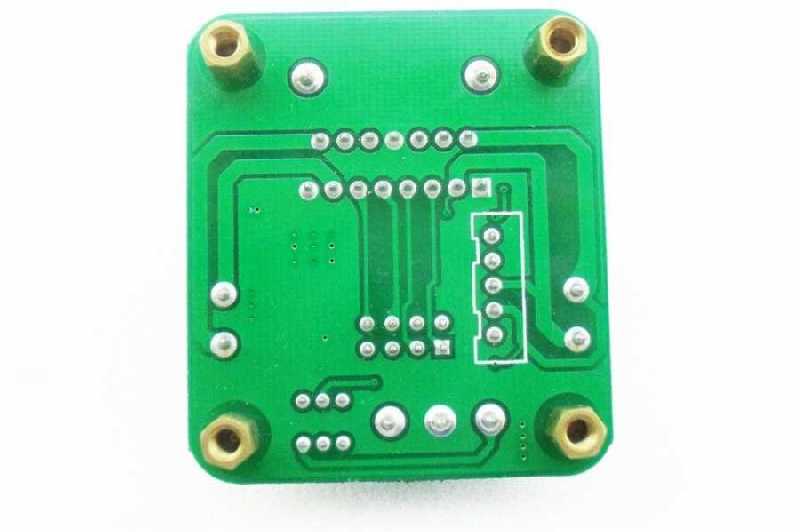

Through this board, you can easily drive your DC motors and step motors without an exstra circuit Board has L298 IC on it.

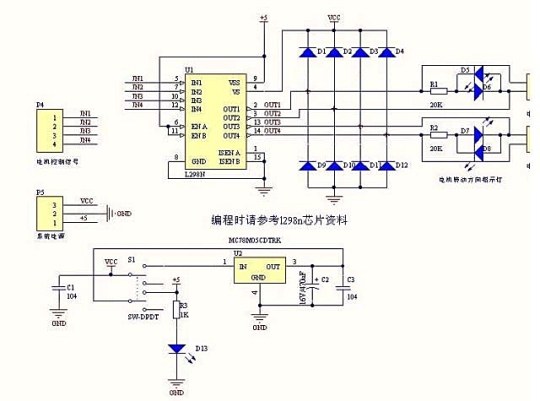

Board uses H bridge L298 IC as motor driver, so you can drive pair motor. Thorugh this you can drive two DC motors (up to 12V and 2A) and one step motor at the same time.
You can use Vcc, GND and 5V for motor supply.
Features:
- Driver: L298N Dual H Bridge DC Motor Control
- Operation Voltage: 5V~35V
- Max Average Current: 2A
- Anlık Akım Yükselmesi (max): 3A
- Lojik Seviyeli Güç Vss: 5V ~7V ( >7V 5v regulator circuit is available on board.için kart)
- Lojik Seviyeli Güç: 0~36mA
- Logic Signal Input Rate : ( Low: -0.3V ≤ 1.5V ) ( High: 2.3V ≤ Vin ≤ Vss)
- Max Power: 20W (Temperature T=75°C)
- Dimensions of motor driver: 55mm x 49mm x 33mm
- Weight: 39g.
- LED indicator
