LCD and Key Pad Shield Compatible with Arduino - 1

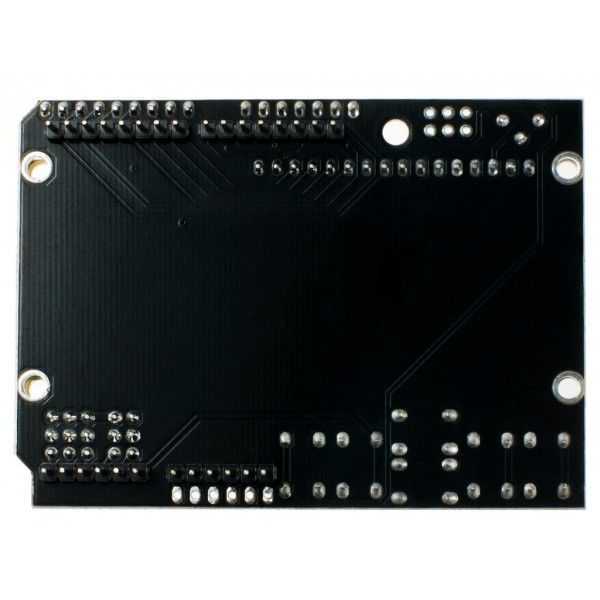

LCD and Key Pad Shield Compatible with Arduino - 2

LCD and Key Pad Shield Compatible with Arduino

Name: LCD and Key Pad Shield Compatible with Arduino
Brand: Robotistan
SKU: 11675
Price: 133.00 TRY
Availability: InStock
Rating: 4.6 (10 reviews)

Brand

: Robotistan

Product Code

: 11675

Fiyat

: 110.83 TL + VAT

KDV Dahil Fiyat

: 133.00 TL

13 saat

56 dakika

14 saniye

PURCHASED TOGETHER

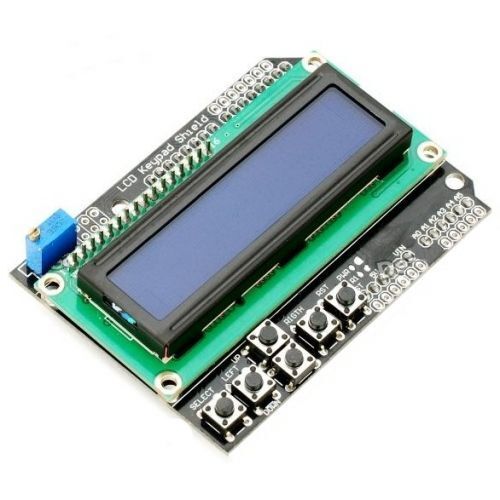

LCD and Key Pad Shield is a vey popular Arduino Shield. It has 2x16 LCD monitor, 5 programmable push buttons and 1 reset button on it. All 5 buttons are connected to Arduino A0 pin with a special structure. Therefore 5 buttons can be read on one pin.

LCD's contrast ca be set and back light can be turned on and off on software. It is an ideal shield for developing applications with Arduino independent from computer. User interface on LCD can be designed and data input can be provided by keys.

Features:

Operating Voltage: 5V
5 push button
Unused pins are shifted out. Hereby can be used with different sensors and modules.
Inner potantiometer for contrast setting
Sizes: 80 x 58 mm

Pin Layout:

Arduino Pin	Feature
Analog 0	Button (select,up,down,left,right)
D4	LCD DB4
D5	LCD DB5
D6	LCD DB6
D7	LCD DB7
D8	LCD RS
D9	Enable
D10	Back Lighting Control

Documents:

User's Guide and Example Application
Board Schematic
User's Guide (Old)
3D Printer Monitor Application (3D printer monitor made by LCD Key Pad Shield and SD Card Module)
Date Time Menu Application

Warranty
