You can use this antenna with your GSM modules

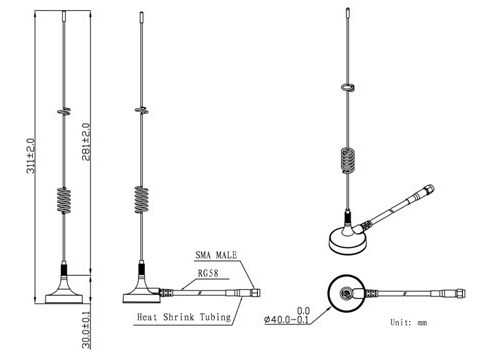

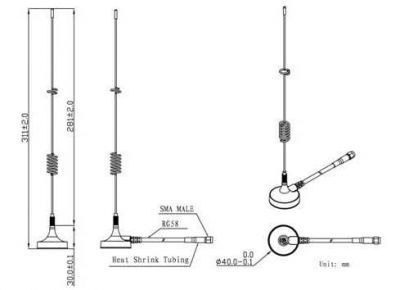

Technical Specifications:

  • Frequency Range : 824~960/1710~2170MHz
  • Polarization : Linear
  • Gain : 5dBi（Zenith）
  • V.S.W.R : ＜2.0
  • Impendance : 50Ω
  • Cable : RG58 / 3m

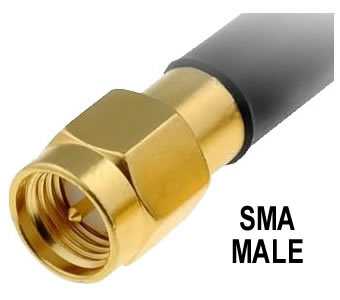

  • Connector : SMA or others
  • Mounting Method : Magnet
  • Operating Temperature : -40℃~+85℃
  • Ingress Protection : IP67
  • Vibration : 10 to 55Hz with 1.5mm amplitude 2hours
  • Environmentally Friendly : ROHS Compliant
Features
Connector Type
SMA
17061

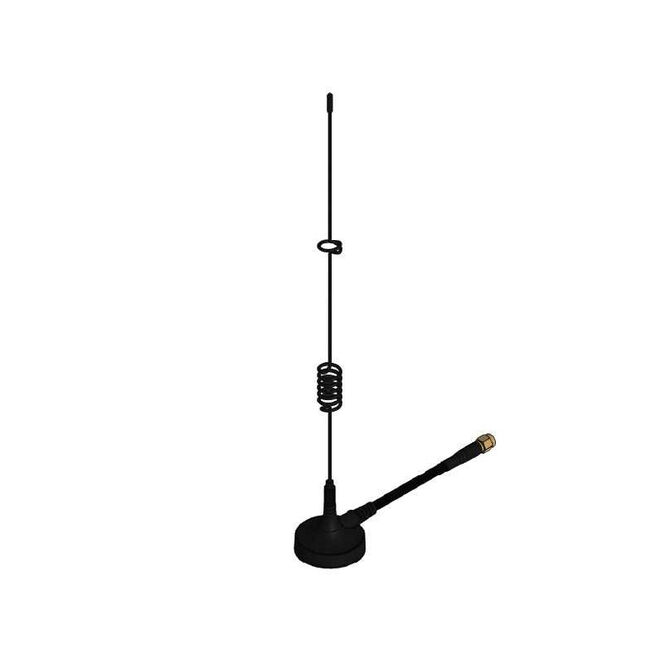

LTE-G-024 - External GSM Antenna
LTE-G-024 - External GSM Antenna
:
313.69 TL + VAT
:
376.42 TL
