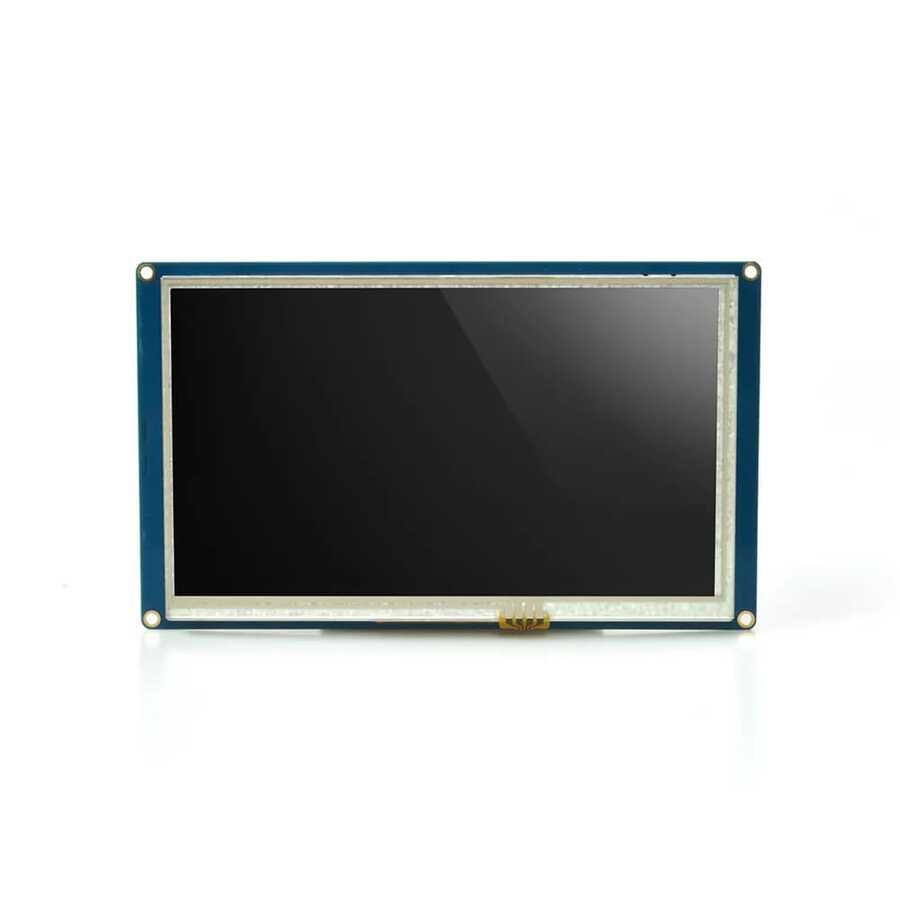

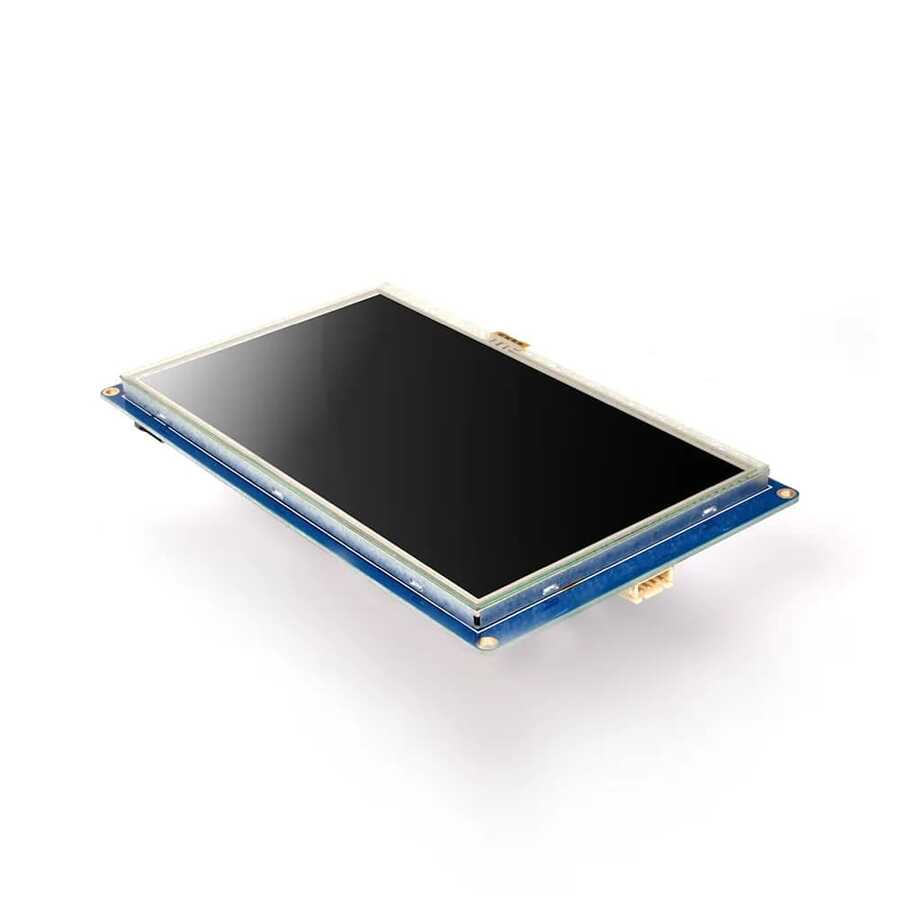

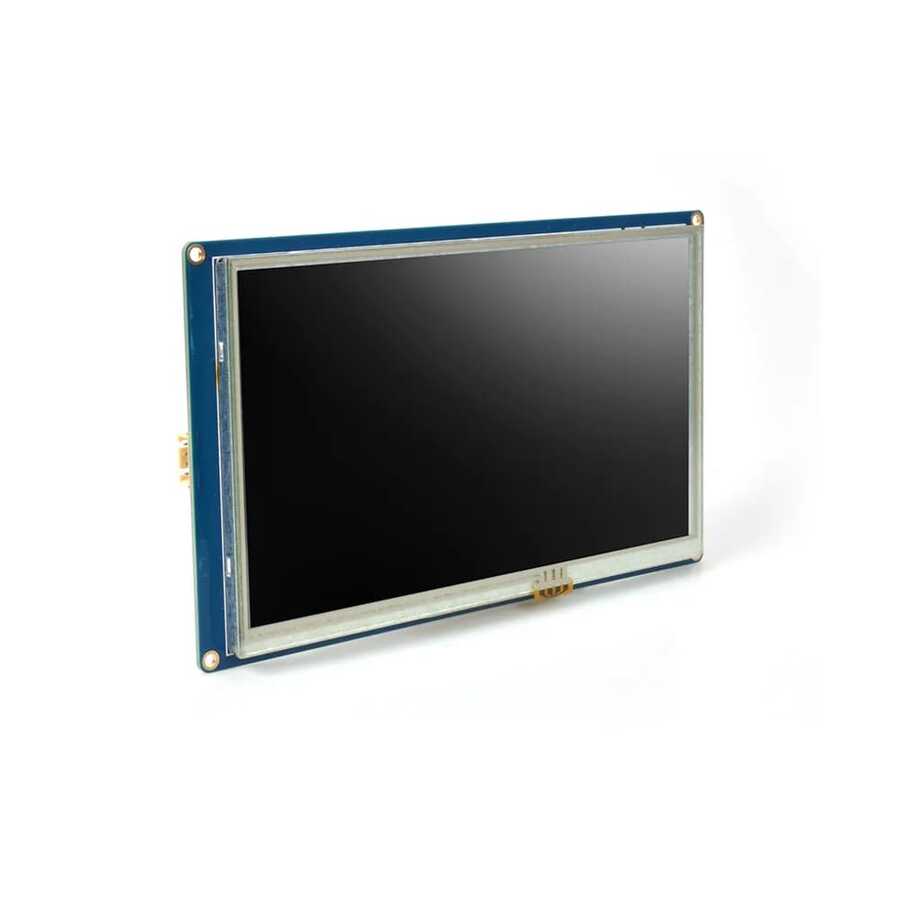

NX8048T070 – 7 Inch Nextion HMI Touch TFT Lcd Screen - 16MB Internal Memory

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software, users are able to create and design their own interfaces for Nextion display.

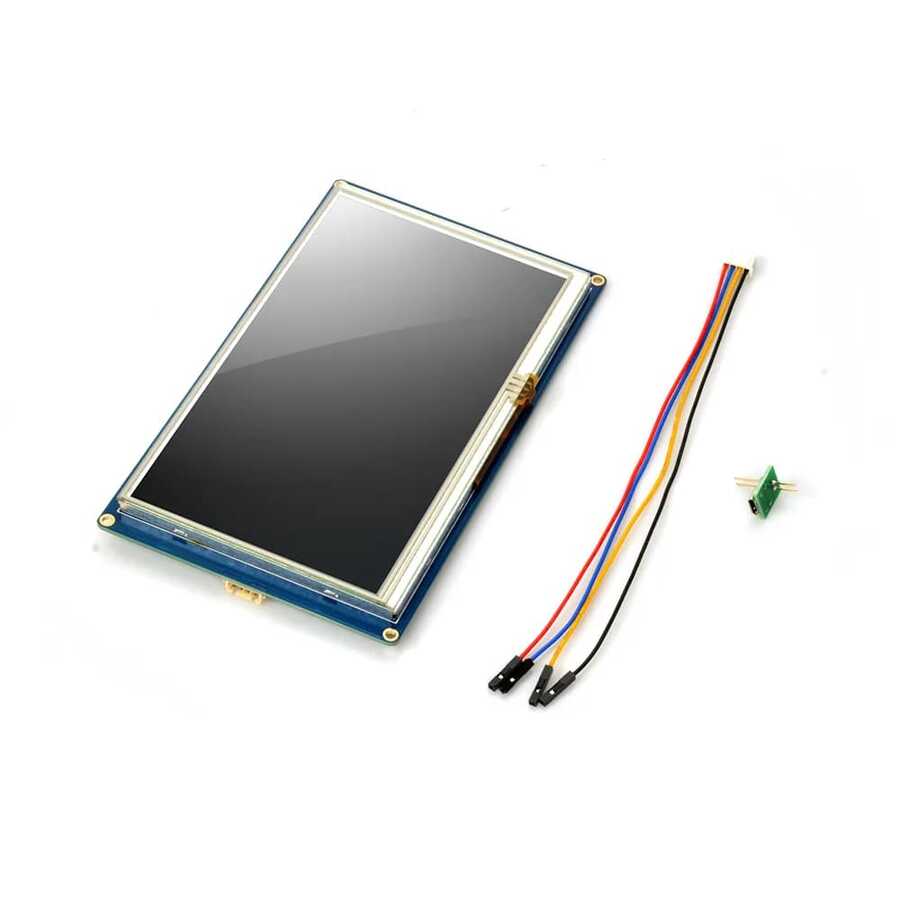

Package includes: Nextion Display, connecting wire, a power supply test board.

Features:

• 800 x 480 resolution
• RGB 65K real colour

• TFT 4-wire resistive touch screen

• Easy to use TTL UART interface

• 16M user code memory
• micro-SD slot for easy firmware updates
• Visible area: 154.08mm (L) × 85.92mm (W)

• Brightness: 0 ~ 230 nits, 1% steps
• 5V 510mA power consumption



Documents:

• Nextion instruction set
• Quick start guide
• Nextion Editor software
• 3D print bezel (STL file)
• Arduino library
• Basic demo
• Enhanced demo
