Odyssey X86J4125800 Development Card V2 - Linux Based and RP2040 processor

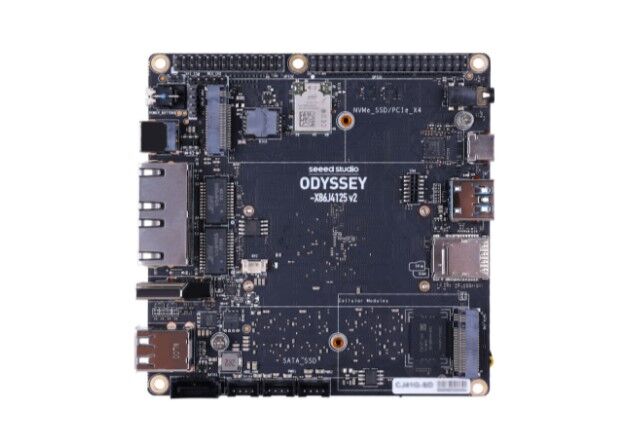

ODYSSEY - X86J4125800 v2 - with Linux and RP2040 Core

ODYSSEY X86J4125800 V2 has a co-processor, quad-core Intel® Celeron® J4125 and RP2040. It can authorize dual 2.5GbE runs with multiple wireless connections. It has sufficient storage capacity along with supporting 4K output, the stream is expandable, it is run by multiple operating systems. The mini PC can be used as a functional feature, media center, robotics or other development applications. Also, USB3.1 Type-C has implemented media metrics, meaning it can be converted to a DP assessment. For this reason, it can connect two samples at the same time and offers the opportunity to perform different tasks. It can be used to create a home theater for entertainment or a conference video for business trips and offers good performance both indoors and outdoors.

ODYSSEY X86J4125800 V2 Technical Specifications:

• Processor: Intel® Celeron® J4125
• Co-Processor: Raspberry Pi ® RP2040 32bit ARM® Dual Core Cortex® M0+
• Graphics:Intel® UHD Graphics 600 (Frequency: 250 – 750MHz)
• Memory: LPDDR4 8GB
• Power: DC Jack 5.5 / 2.1 mm / Type-C PD
• DC Jack input: 12-19V DC
• Type-C input: 15V DC
• USB: USB 2.0 Type-A x2, USB 3.1 Type-A x1, USB 3.1 Type-C x1
• WiFi: Wi-Fi 802.11 a/b/g/n/ac @ 2.4/5 GHz HT160
• Audio: Microphone + Headphone Combo Connector
• RTC: JST 1.0 CR2032 3V
• Video Interfaces: HDMI2.0a: Up to 4096x2160 @ 60Hz 24bpp / DP1.2a:/ 4096x2160 @ 60Hz 24bpp
• Size: 110 x 110 mm
• Operating Temperature: 0°C / 75°C
