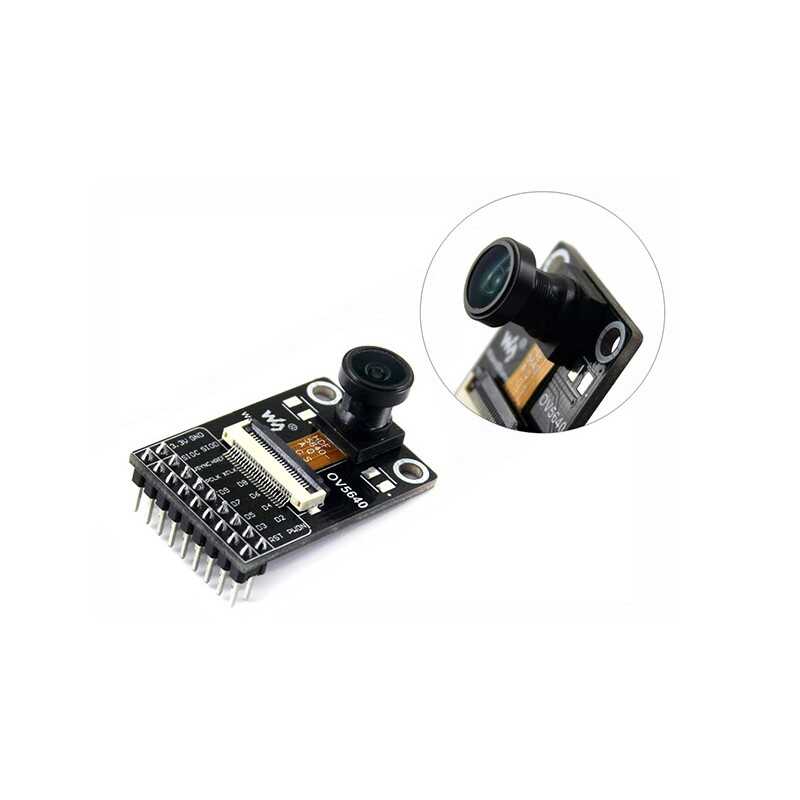

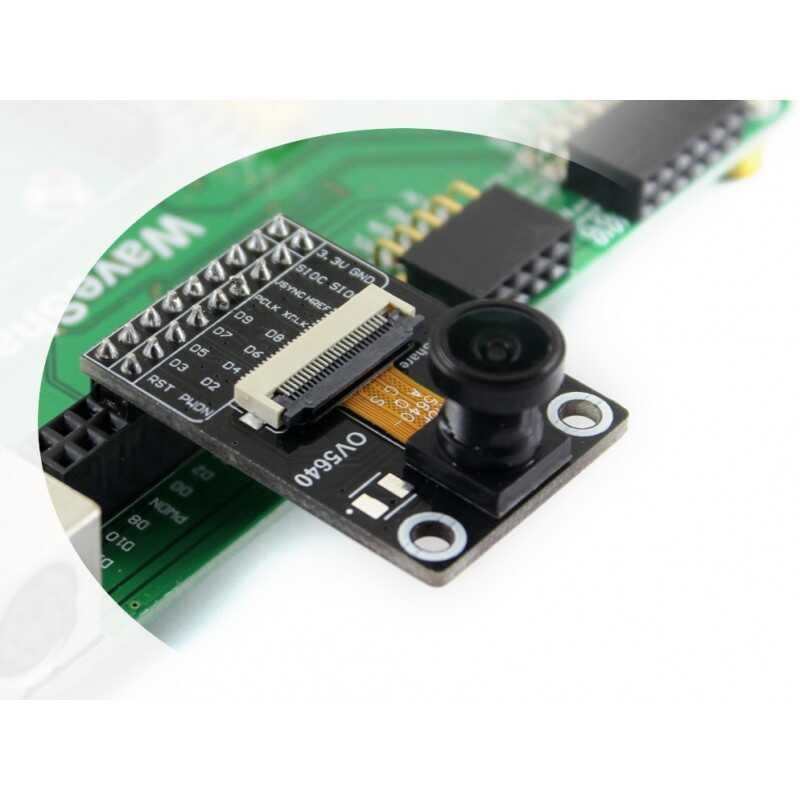

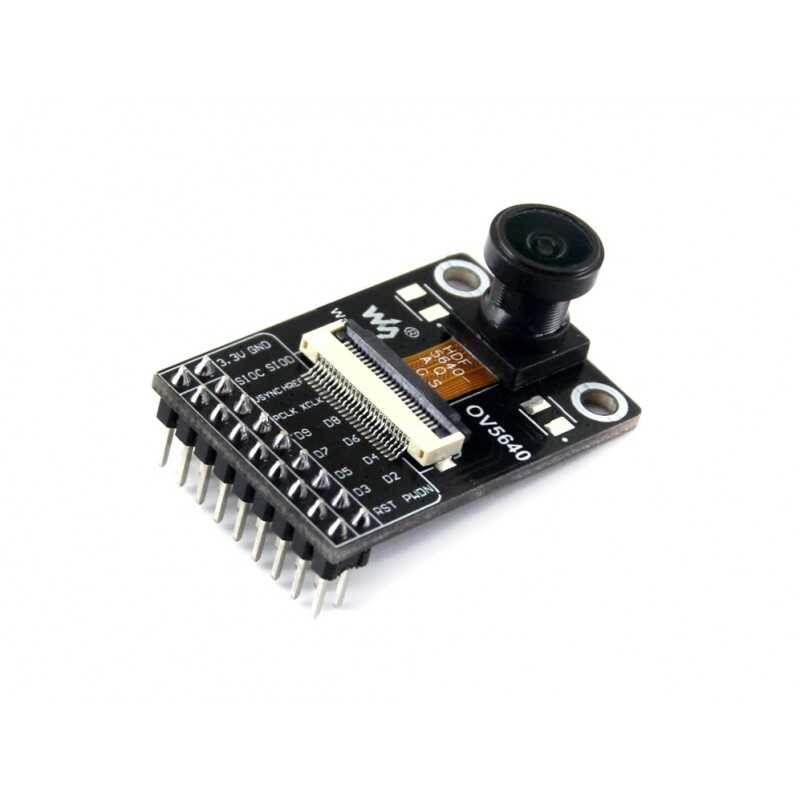

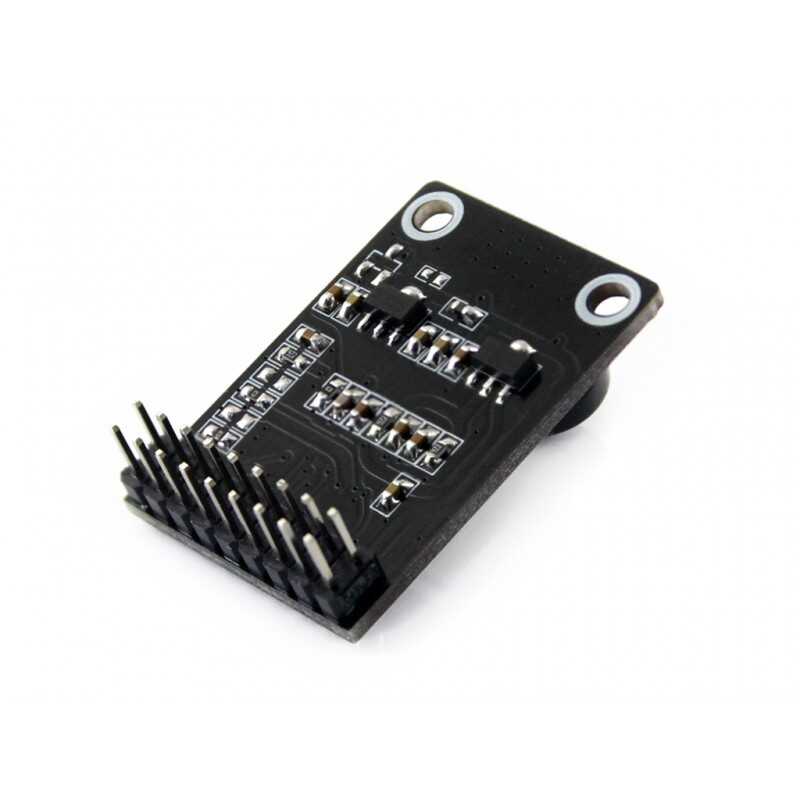

OV5640 Camera Board (B) - 5MP (2592x1944) Fisheye Lens

OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens

The OV5640 Camera Board (B) is a simple digital camera that adopts the OV5640 base. It allows you to take photos or record videos with your development board. It also expands the capabilities of the microcontroller thanks to its ability to take pictures and record videos.

OV5640 Camera Board (B) Technical Specifications:

• Pixel: 5 megapixels
• Resolution: 2592x1944
• Sensor: OV5640
• 1.4 x 1.4 mm pixels with OmniBSI technology, high sensitivity, low crosstalk, low noise
• Automatic image control components: AEC, AWB, ABF, ABLC, etc.
• Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
• You can use image scaling, panning, windowing, etc. gone.
• Lens:
• CCD size: 1/4 inch
• Aperture (F): 2.5
• Focal Length: 2.0mm
• Cross: 170 degrees (fisheye)
• Output Formats:
• YUV(422/420)/YCbCr422
• RGB565/555/444
• CCIR656
• HAM RGB
• Compressed Data
• Operating Voltage: 3.3V
• Control Interface: SCCB (I2C compatible)
• Data Interface: DVP 8 bit
• Size: 35.70mm × 23.90mm
