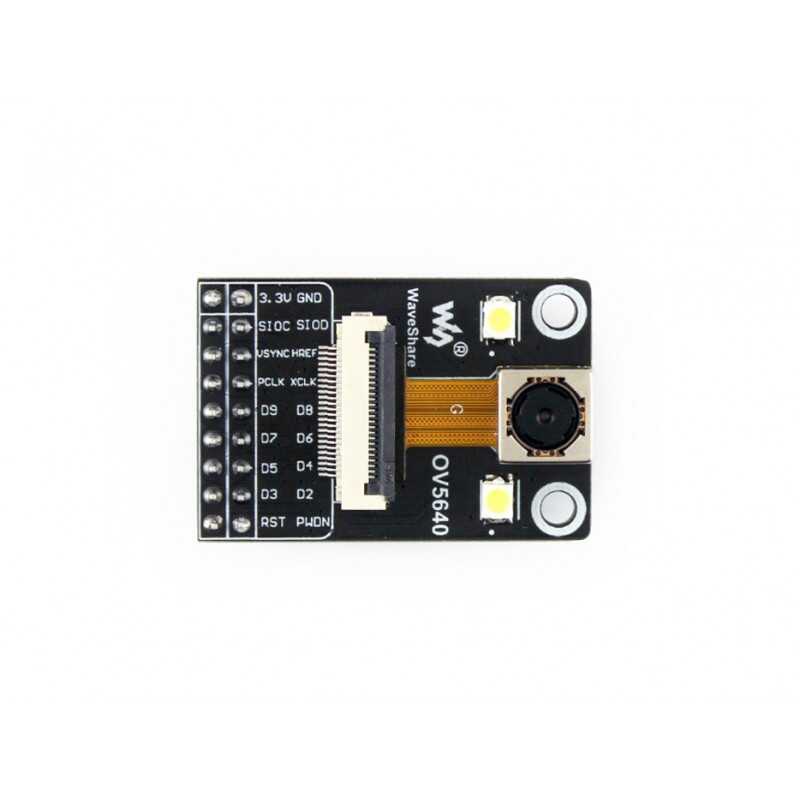

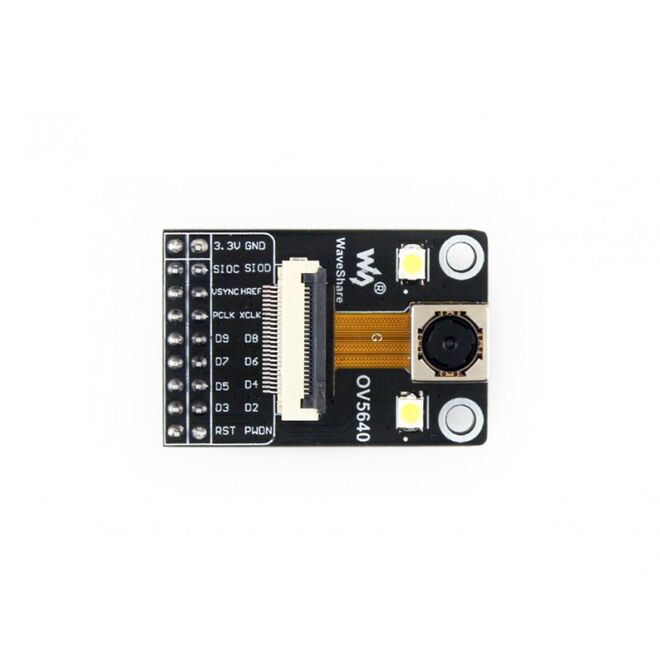

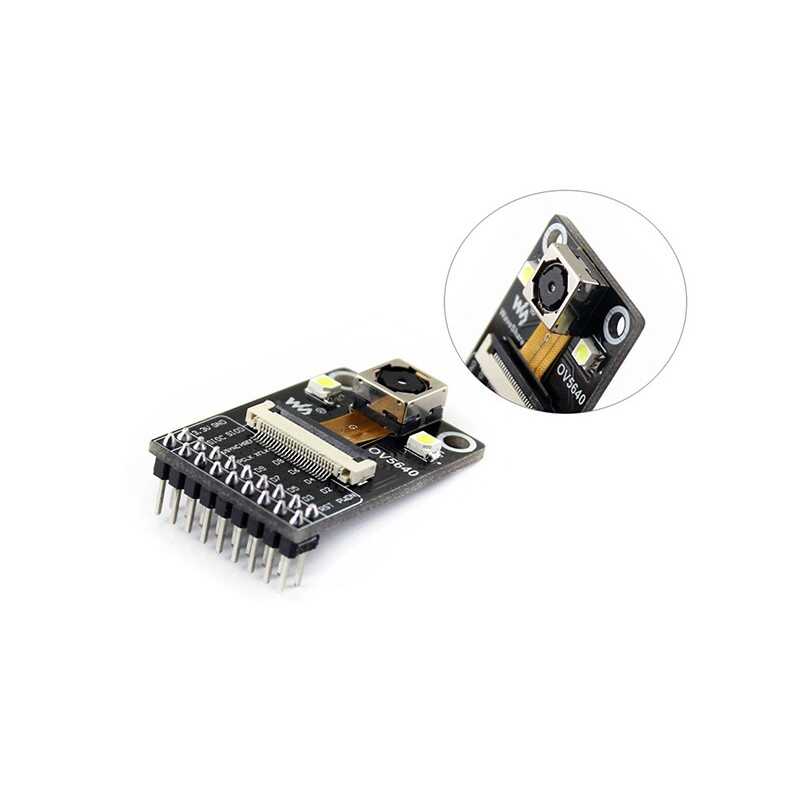

OV5640 Camera Board (C), 5 Megapixel (2592x1944), Auto Focusing, Onboard Flash

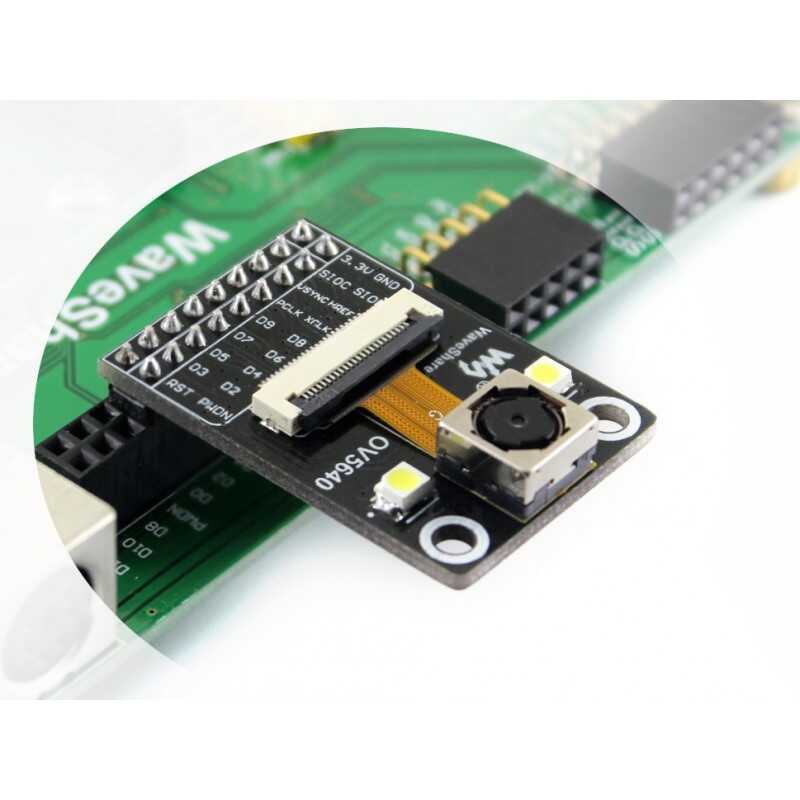

OV5640 Camera Board (C) is a simple digital camera adopting OV5640 base. It allows you to take photos or record videos with your development board. It also expands the capabilities of the microcontroller thanks to its ability to take pictures and record videos.
OV5640 Camera Board (C) Technical Specifications:
- Pixel: 5 megapixels
- Resolution: 2592x1944
- Autofocus by detecting object distance
- The built-in flash LED allows you to take pictures virtually.
- Sensor: OV5640
- 1.4um x 1.4um pixels with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control components: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- You can use image scaling, panning, windowing, etc. gone.
- Lens:
- CCD dimensions: 1/4 inç
- Aperture (F): 2.8
- Focal Length: 3.37mm (adjustable)
- Cross: 67.4 degrees
- Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- HAM RGB
- Compressed Data
- Operating Voltage: 3.3V
- Control Interface: SCCB (I2C compatible)
- Data Interface: DVP 8 bit
- Size: 35.70mm × 23.90mm
