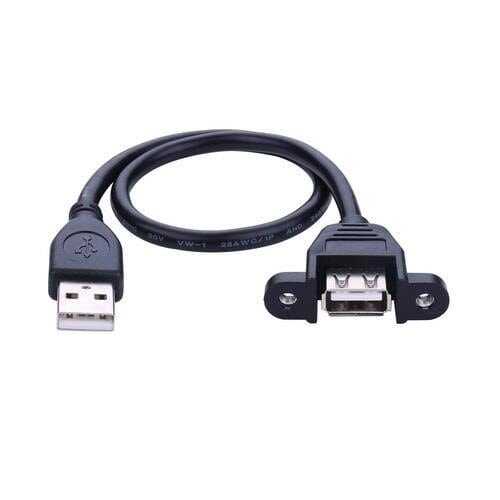

Panel Mount USB Cable - A Male to A Female

Panel Mount USB Cable - A Male to A Female

Handy USB extension cable will make it easy for you to enclose a device that has a A type (USB host) port. This would be most handy when putting a Beagle Bone, Raspberry Pi or Minty boost into a box.

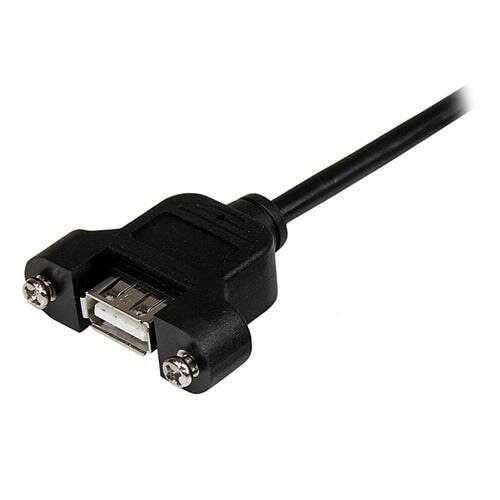

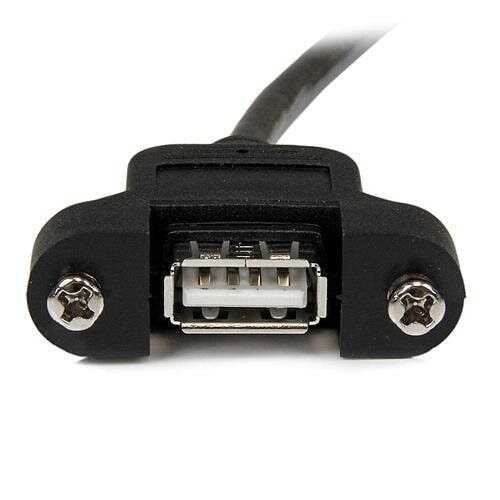

The jack half has two mounting 'ears' with 4-40 screws installed, 30mm apart. Entire unit is 13.4" long from tip to tip (with 10.2" cabling between USB connectors).

Technical Details:

• Panel mount USB type A socket with USB type A plug at cable end
• 28 AWG data, 24 AWG power wires
• Shielded with wire braid
• 13.4" / 340mm long from tip to tip
• 10.2" / 259 mm cable length between USB connectors
• Two 10mm 4-40 mounting screws, 30mm apart
• Weight: 27g
