Raspberry Pi 4 Fan Case - Original

Raspberry Pi 4 Fan Case - Original

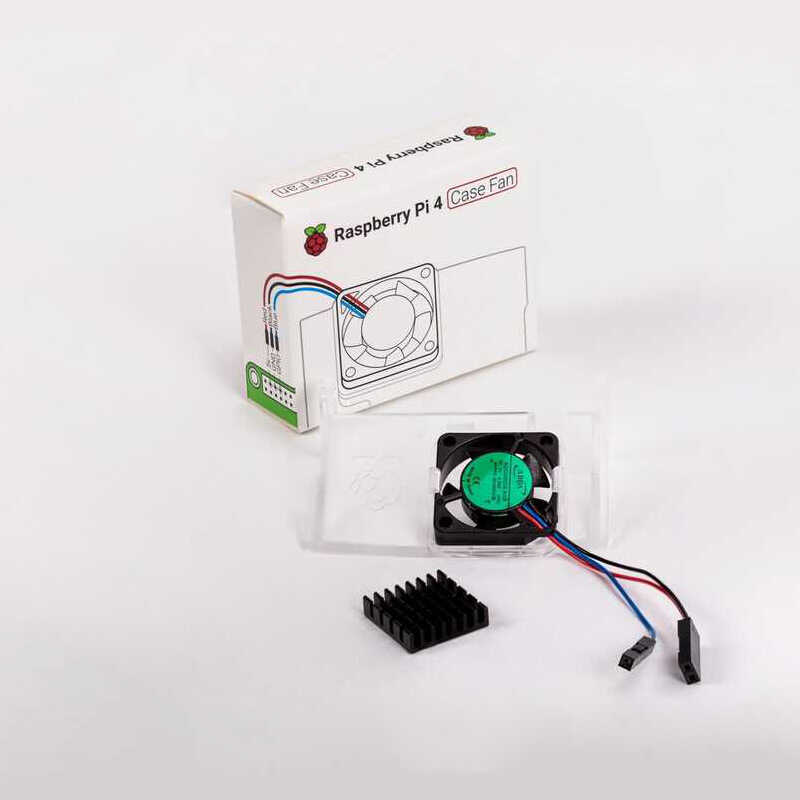

You can use your Raspberry faster and more efficiently with the cooling fan and metal cooling block compatible with the Raspberry Pi original box.

• Fits on the Raspberry Pi 4 Licensed Box cover. (Raspberry Pi 4 Licensed Box)
• Temperature-controlled fan provides up to 1.4CFM airflow on the processor, memory and power management IC.

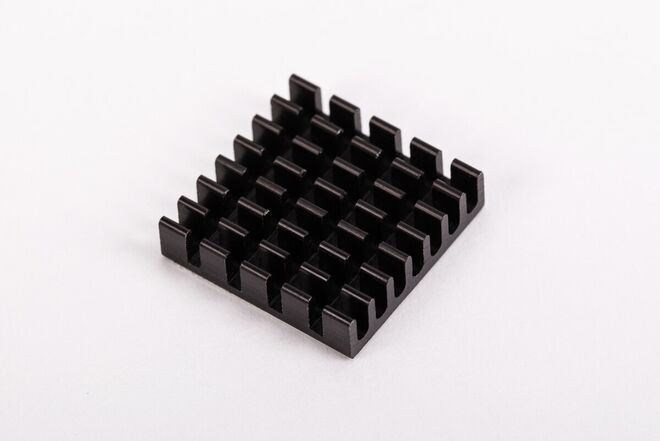

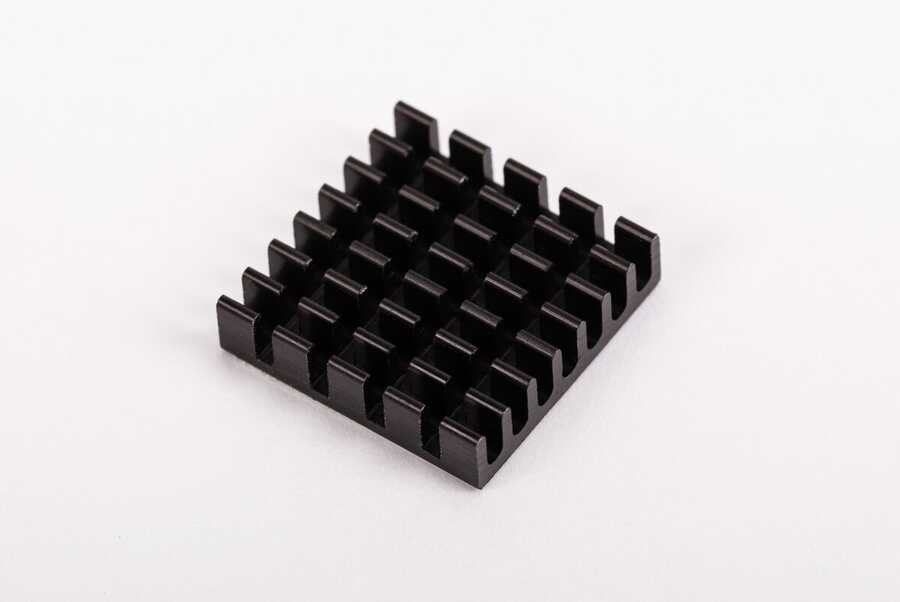

• 18mm × 18mm × 10mm heatsink with a self-adhesive pad improves heat transfer from the processor.
• Raspberry Pi 4 housing is not included in the product.

Product Operating Instructions:

1. Assemble the fan with your case
2. Remove any SD card, then place your Raspberry Pi in the lower half (base) of your case. Make sure to align the mounting holes in the corners with the protrusions on the chassis.

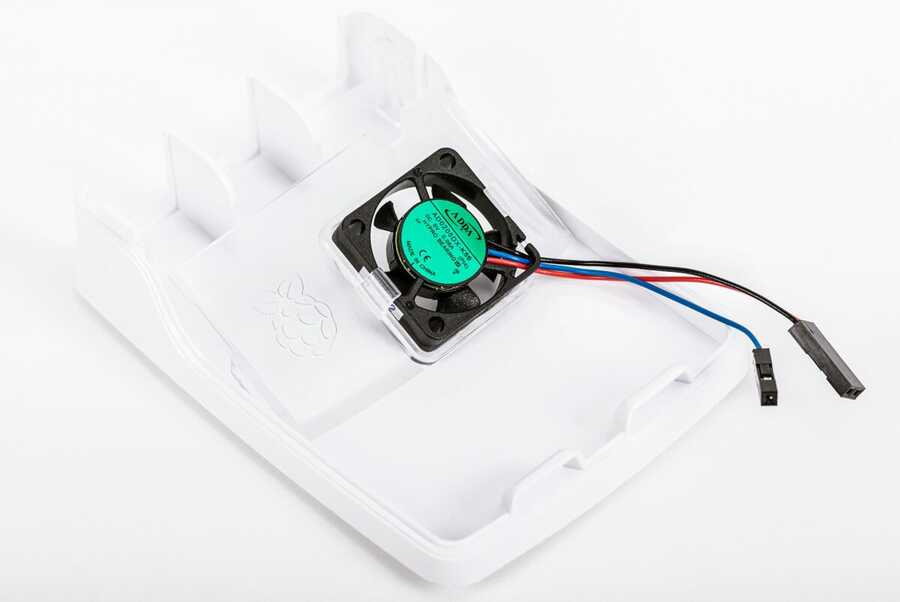

3. Place the fan in the upper half (cover) of the chassis, with the green label facing away from the cover. Gently but firmly push the two tabs on the fan housing into the tabs on the cover properly. The slightly curved edge of the enclosure should be flush with the bottom of the cover.
4. If you are installing the heat sink, remove the backing paper from the self-adhesive pad at the base of the heat sink, place it in the middle of the processor and gently press it into place.
5. Connect the three ends coming from the fan to the GPIO pins of the Raspberry Pi as shown in the diagram below. Be careful to connect each end to the correct pin.
6. Snap the case cover to the base.
