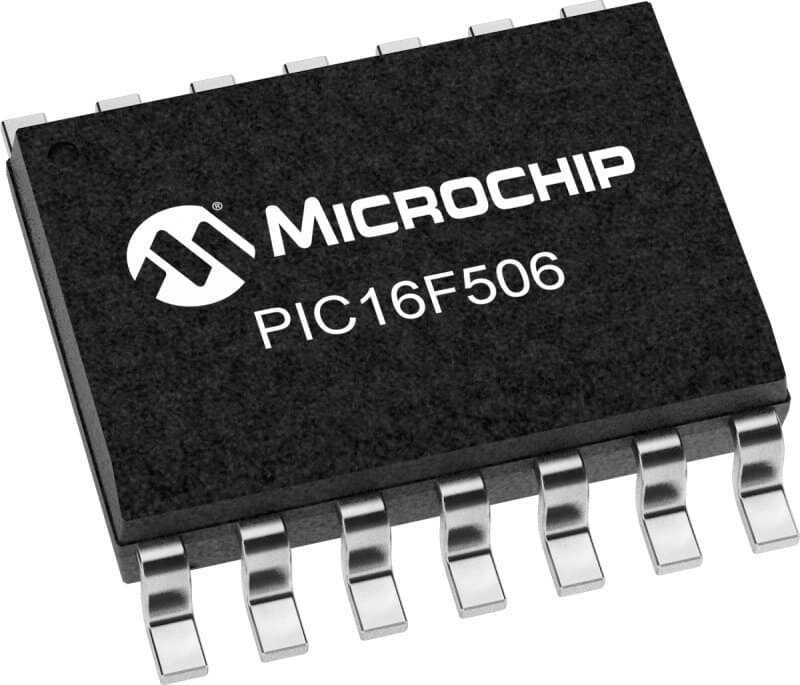

PIC16F506 I/SL SMD SOIC-14 8-Bit 20MHz Microcontroller

PIC16F506 I/SL SMD SOIC-14 8-Bit 20MHz Microcontroller

PIC16F506 Microcontroller, This PIC16 series microcontroller produced by Microchip has maximum performance and very low power consumption. It is an 8-bit microcontroller running at 20MHz and has a SOIC-14 sheath. This microcontroller with FLASH memory type works in the input voltage range of 2V/DC to 5.5V/DC and temperature range from -40C to +85C.

PIC16F506 Microcontroller Technical Specifications:

• Series: 16F Series
• Model: PIC16F506
• Input Voltage: 2V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 1.5KB (1K x 12)
• Ram Size: 67Byte
• EEPROM Size: NO
• Number of Bits: 8-Bit
• Speed: 20MHz
• Total Number of Inputs-Outputs: 11
• Sheath Type: SOIC-14 - 3.90mm
• Mounting Type: SMT
• ROHS Standards: SUITABLE
