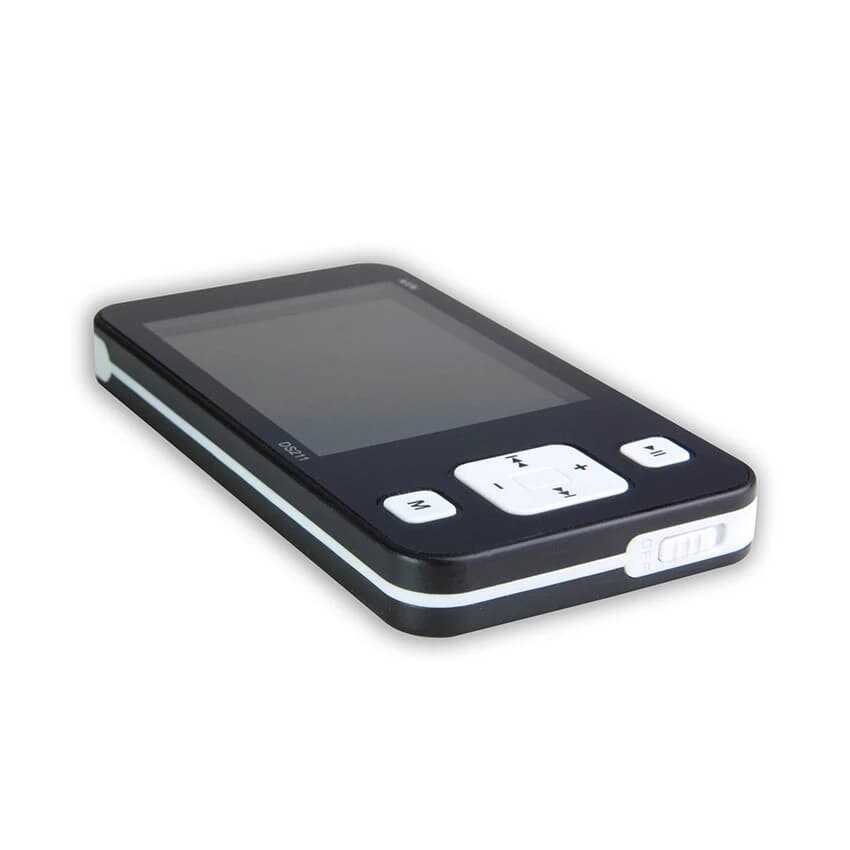

MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO211 with MCX Probe

MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO211 with MCX Probe

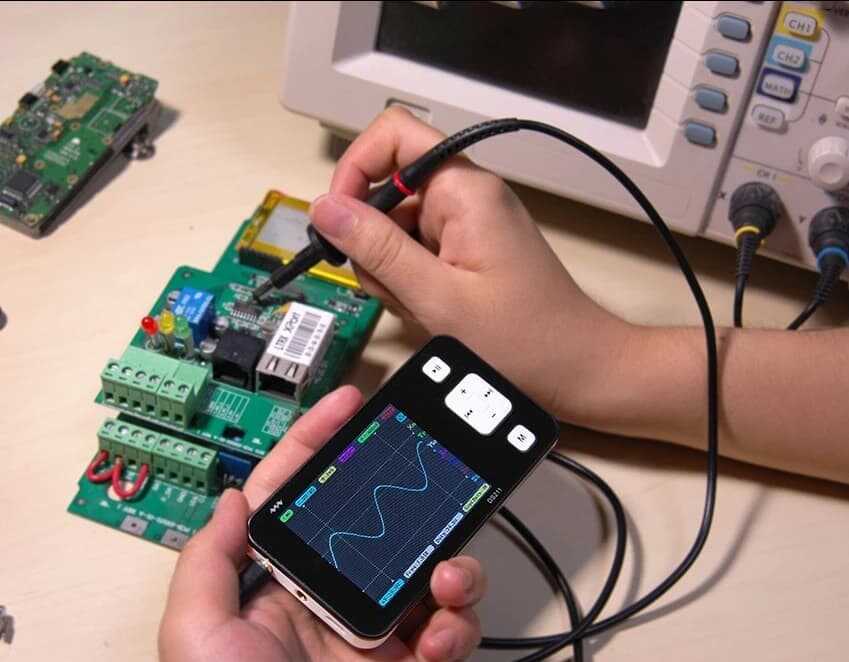

The oscilloscope was invented by Andre Blondel in 1914. It is the most comprehensive as a measurement in electrical values ​​and can reflect the measurements on the screen as waves. Click for more detailed information about the oscilloscope. The DS211 Mini is very small compared to other oscilloscopes, as well as making our measurements more special and high quality with modes such as sine, sawtooth, square, triangle. In this way, it has succeeded in providing users with ease of location and transportation. It is frequently used in technical services, departments and laboratories. Today, there are 4 types of oscilloscopes:

• Digital
• Analogue
• USB
• handheld

MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Technical Specifications:

• Screen Resolution: 320 x 240
• Battery: 500mAh Lithium Battery
• Input Ports: Micro USB, OUT, INP
• Screen Size: 2.8inch
• Channels: 1 Analog + 1 Working channel
• Analog Bandwidth: 200KHz
• Maximum Sample Rate: 1MSa/s
• Maximum Sample Memory Depth: 8K
• Horizontal Sensitivity: 1uS / Div ~ 2S / Div (1-2-5 row digits)
• Vertical Sensitivity: 20mv / Div ~ 10V / Div (1-2-5 rows)
• Analog Input Impedance: > 500kΩ
• Connection: DC/AC
• On/Off Key: Yes
• Synchronous Mode: Ascending – Descending Edge Triggering Mode
• AUTO_FIT: Yes
• Math Waveforms: -A, RecA, A+ RecA
• Internal Signal Generator: Sine – Sawtooth – Square – Triangle
• Storage: 8MB Flash Disk
• Certifications: CE/FCC
• Weight: 65g
• Size: 106.5mm x 55.7mm x 11.5mm

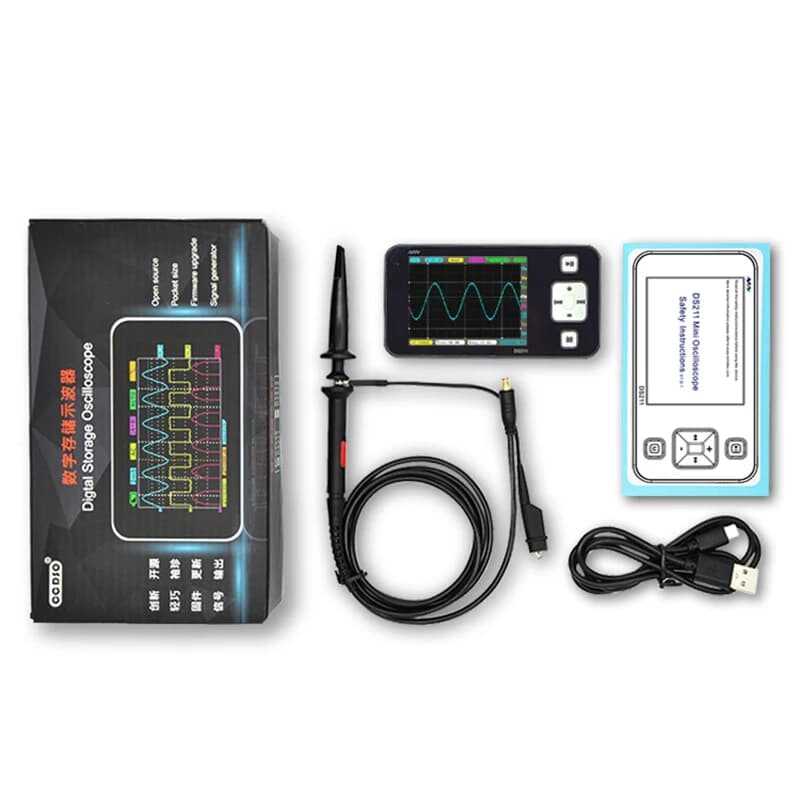

MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Package Contents:

• Mini DS21 ARM Nano Professional Portable Digital Oscilloscope
• Digital DSO211 MCX Probe (with 1:1, 10:1 attenuation ratio switch)
• USB Data Cable
• Velvet Bag
