QR Barcode Scanner GM67

QR Barcode Scanner GM67

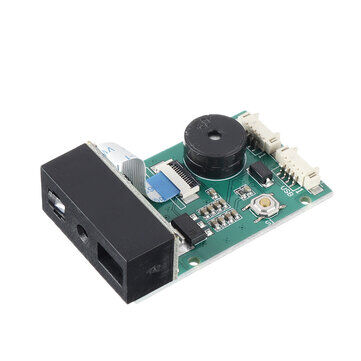

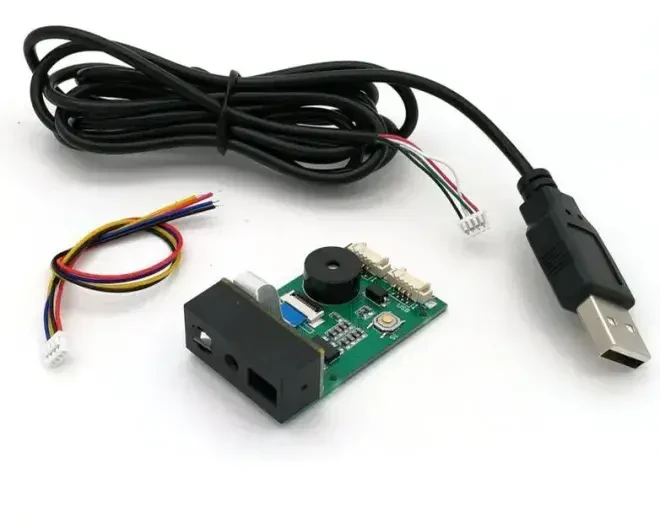

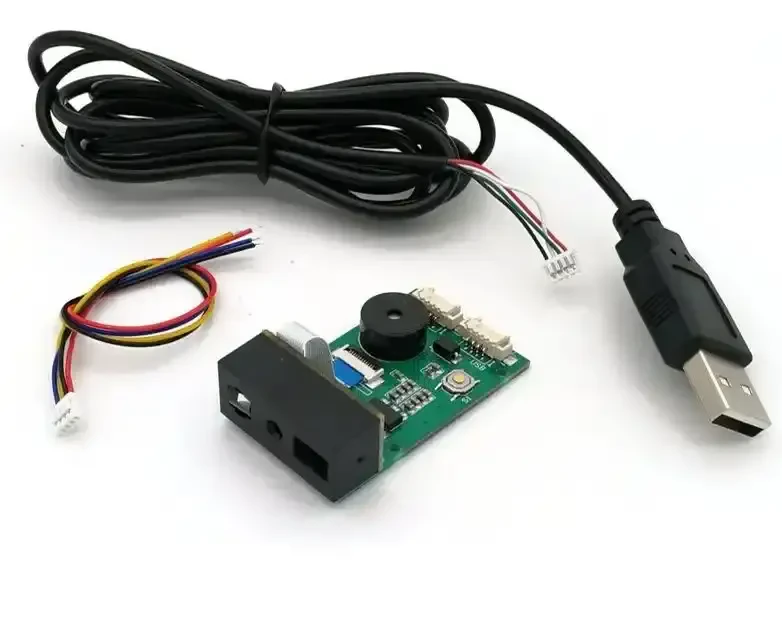

QR Barcode Scanner GM67 is barcode and QR code scanning module. It has high integration and compact size. Not only can it easily read various 1D barcodes, it can also read 2D barcodes at high speed, but also can be used for paper, labels, screens, etc. It also has the ability to easily scan barcodes at the same speed. It also informs whether the QR scanning is successful or not, thanks to the ring tone feature in the product.

QR Barcode Scanner GM67 Technical Specifications:

• Scan mode: 640*480 CMOS
• Lighting: White Led
• Alignment: Red Led
• The Accuracy of the Code Read: ≥5mil
• Contrast: ≥25%
• Scanning angle: Junction angle 360°, Elevation ±55° Declination ±55°
• Angle of view : V: 42° H: 34° E: 26°
• Interface: TTL-232, USB (HID-KBW, Virtual serial port)
• Size: 27.5(W)*46.5(D)*14(H)mm
• Operating voltage: DC 5V
• Working Current: 180mA
• Standby current: USB: 25mA; TTL: 10mA
• Working temperature: -20℃~+50
• Storage temperature: -40℃~+70℃
• Operating Humidity: 5% ~ 95% (Non-Condensing)
• Environmental Light: 0°100000LUX
