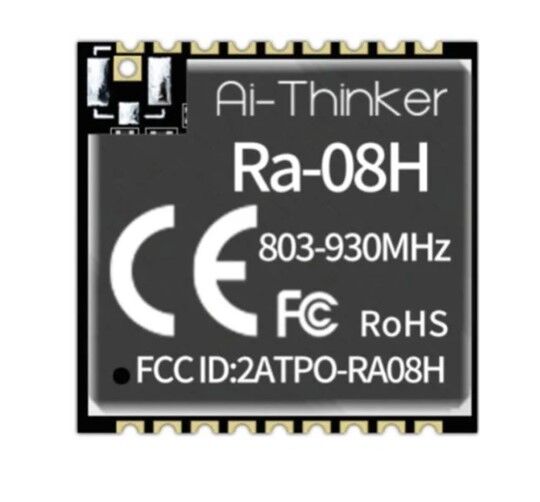

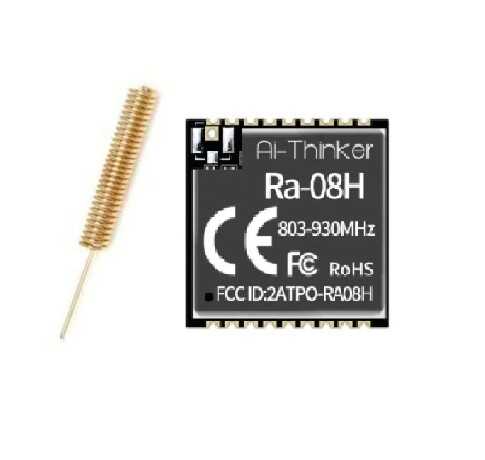

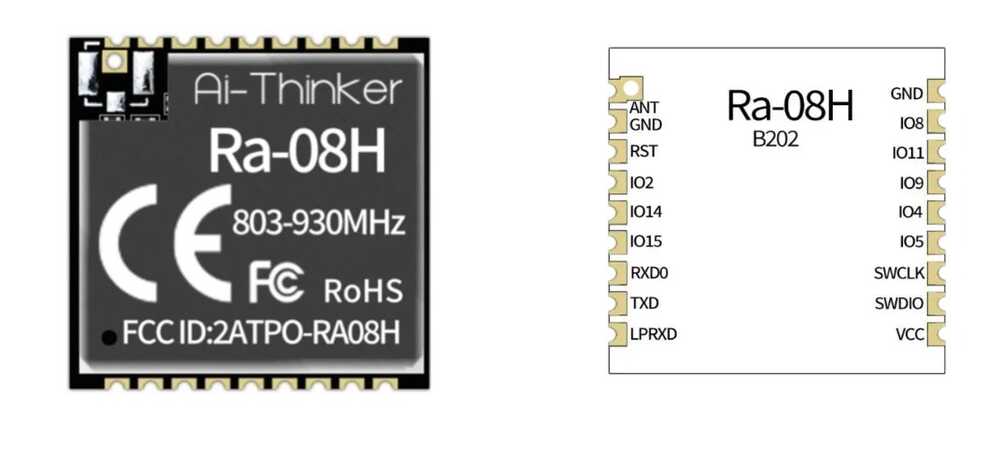

Ra-08H LoRaWAN Module with Spring Antenna

Ra-08H LoRaWAN Module with Spring Antenna

Spring Antenna Ra-08H LoRaWAN Module is a long range module that provides ultra long range communication. The ASR6501 chip contains an Integrated LoRa radio transceiver, LoRa modem and 32-bit RISC MCU. The MCU uses ARM Cortex M0+ devices and runs at 48MHz. It is suitable for long distance LPWAN communication and has high transmission times.

Spring Antenna Ra-08H LoRaWAN Module Technical Specifications:

• Power Supply: 2.7V / 3.6V
• Current: 500 mA
• UART RATE: Support 110 - 4608000 BPS / Default 115200 BPS
• SPI FLASH: 128KB
• Crystal Frequency: 32 MHz

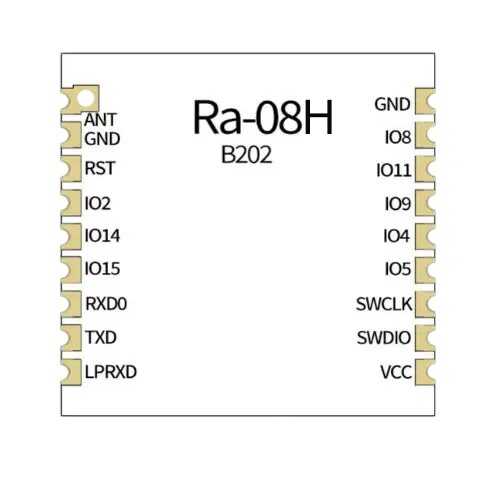

• Interface: UART / I2C / I2S / GPIO / ADC / DAC / SPI / PWM
• Operating Temperature: -40°C / 85°C
• Size: 16x16x3.2mm
